High-frequency induction ion wind snake

DN543 / DN543M Type

In the electronics industry, electrostatic control is very important, high-frequency ion snake is in line with the static control standards of the right-hand man, equipped with photoelectric sensors, sensing that blows ionic wind, free hands, easy to control the airflow, making the operation more convenient. The products are manufactured with high-quality materials, undergo strict quality control and testing, and have a long service life and low failure rate.

Features:
• Efficient electrostatic precipitation removal to ensure that there is no charge residue on the surface of the product and improve the yield rate
• Easy to operate - photoelectric sensor, sensing that blows ionic air, makes operation more convenient
• Flexible, serpentine tube design, easy to adapt to various angles
• Safe and reliable to prevent damage or danger caused by abnormal discharge or short circuit
• Ozone reduction design, compressed air and ion control at the same time
• Durable and manufactured with high-quality materials
• Optional foot switch for hands-free airflow control

Removes static electricity and foreign matter from surfaces

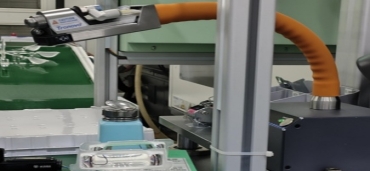

It is suitable for use on the workbench, the snake tube can be deformed at will to make the wind snake point to the target direction, and the photoelectric induction switch controls the airflow, without manual operation.

Inductive design - simultaneous control of gas and electricity

When an object appears within 300mm in front of the nozzle, the nozzle can automatically turn on the compressed air and turn on the high-pressure ions at the same time, blowing out a strong ionic wind. The industry's cutting-edge gas-electric synchronous control can effectively reduce ozone generation

Front throttle valve - the airflow size is easy to adjust

The air volume can be adjusted arbitrarily, the wind is strong, and the photoelectric induction switch controls the airflow without manual operation.

Suction cup design - There is a mounting suction cup at the bottom

It is suitable for use on the workbench or installed on the machine.

LED Indicator - with "Check function

It has an "inspection function" that automatically prompts the cleaning of the ion needle, which can be checked by an LED indicator, and the output of each function can also be used to monitor the operating status of the static eliminator from the outside.

Fast Elimination - High level of static elimination

Multi-parameter hybrid testing can be used to verify the characteristics of the application more comprehensively, and for production line applications, the convenience of automated testing should be prioritized.

Model	DN543	DN543M
Operating voltage	110V-240VAC
The speed at which the power is dissipated	≤1.0S(Distance 100mm)
Ionic balance	≤10V(AVE)
Sensing distance	100-500mm Adjustable
Ionization techniques	High-frequency AC method, 2KV, 70KHz
Air pressure	0.15~0.7Mpa
Connecting tubes	ø8mm
Barometric pressure indication	-		have
Electrode material	Wolfram(W) -tungsten
Ozone concentration	≤土0.04ppm Hereinafter
Run instructions	High-voltage alarms, power supply alarms, maintenance alarms, and external control instructions
Working environment	+5°C至+45°C，Humidity: 35~70RH (no cooling)
Warranty	One-year limited warranty
Optional Attachments	Foot switch (TN-FP01), air filter (TN-AFO1)
Weight	2.09kg		2.16kg
