The ion mesh is designed according to the principle of AC static eliminator, which is suitable for installation under the high-efficiency air outlet of the 100-level clean workbench and the 10K-100 clean room, which can effectively control and eliminate a wide range of space static electricity.
Features:
• AC principle
• Neutralizes static electricity quickly<2S;
• Pin header design
• FFU mounted underneath
• Large area covered by ionic gas streams
• The frame is made of highly insulating material
• Requires a dedicated ion power supply
 |
FFU anti-static purification unitInstalling an ion mesh under the FFU can effectively control and eliminate a wide range of space static electricity |

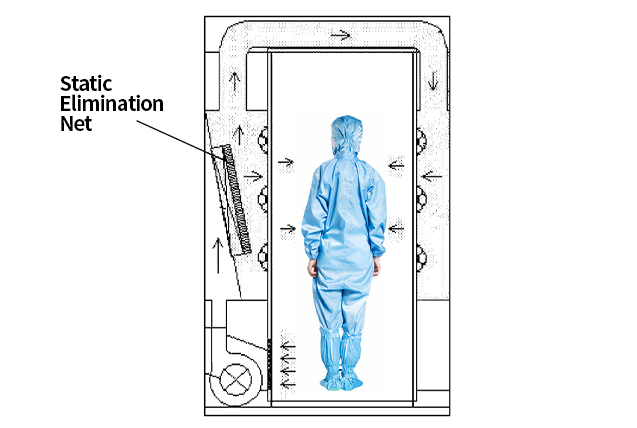

The application of ion mesh in the air shower room for electrostatic de-escalation• Install an ion mesh at the air outlet of the HEPA filter |
 |
<meta charset="UTF-8"/><title>Curriculum</title>
| Model | DC72 |
| Input voltage | 220V/50Hz or 110V/60Hz |
| Output voltage | AC4.0KV～5.6KV |
| power | 40W |
| Ambient operating temperature | -10℃～+50℃ |
| High voltage wire length | 2m |
| Dimensions | It can be customized according to customer requirements |
| Ozone amount | 0.088PPM |
| Residual voltage | ≤±100V |
| Use distance | 100mm～3000mm(related to the distance at which the wind is provided) |
