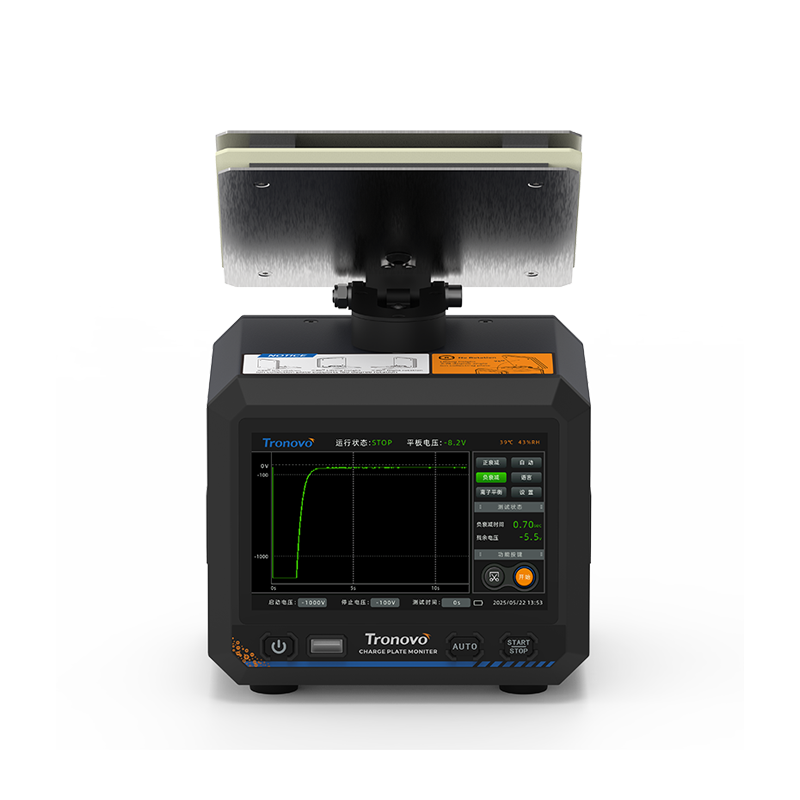

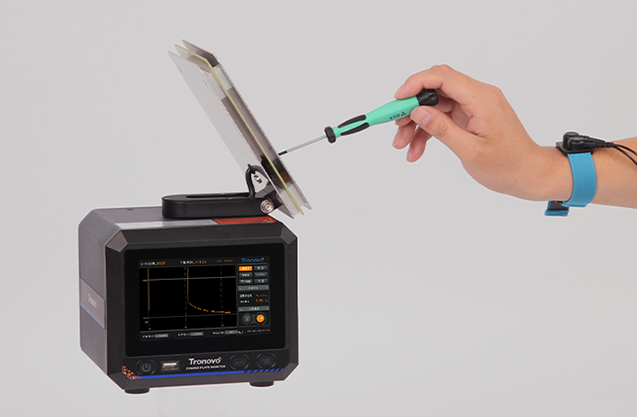

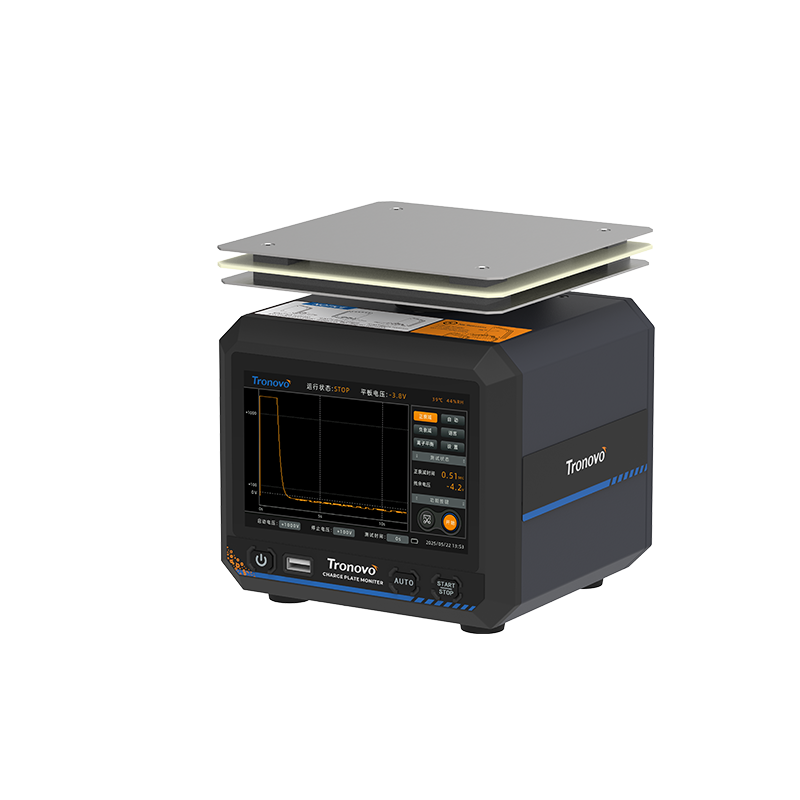

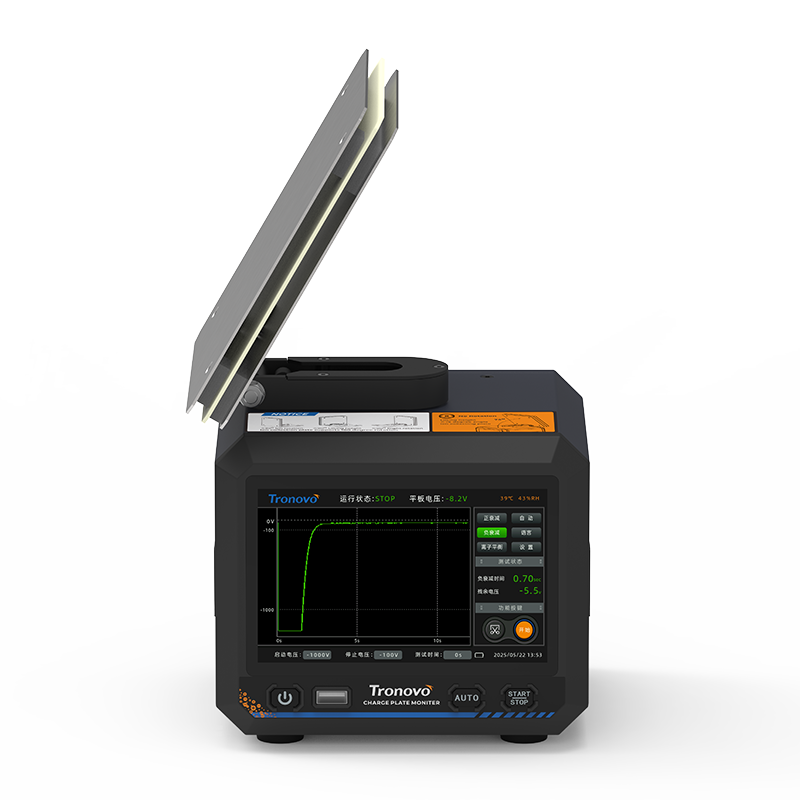

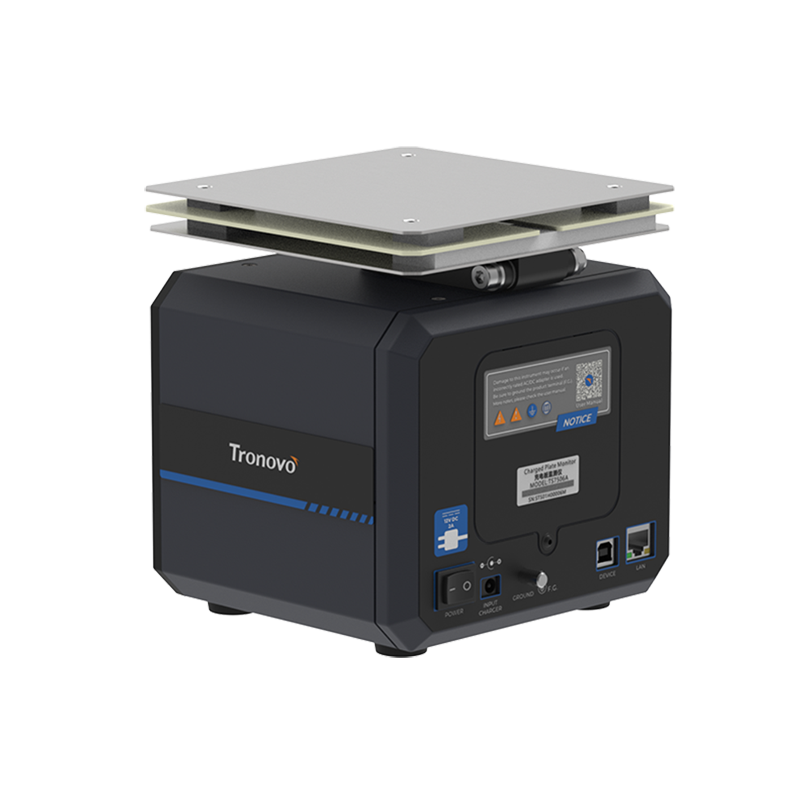

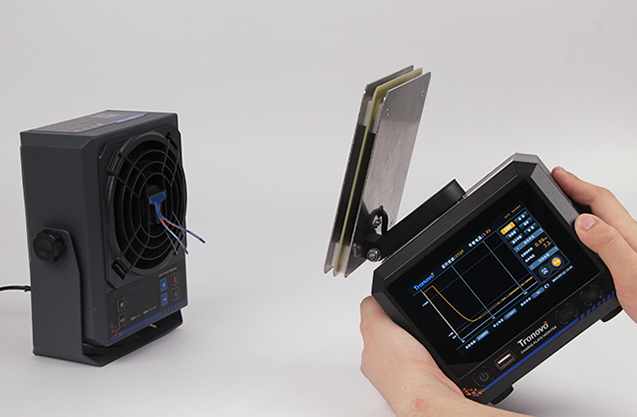

The charging pad monitor is a high-precision test equipment that complies with international standards for evaluating the performance of air ionizers. It is suitable for measuring a variety of ionizers and its 5-inch touch screen is easy to operate. The device has a detachable test plate for testing in small spaces and inside process equipment, and it can accurately detect high-frequency AC ion fan performance. It also has a large-capacity lithium battery for long-term use.
Product Features：

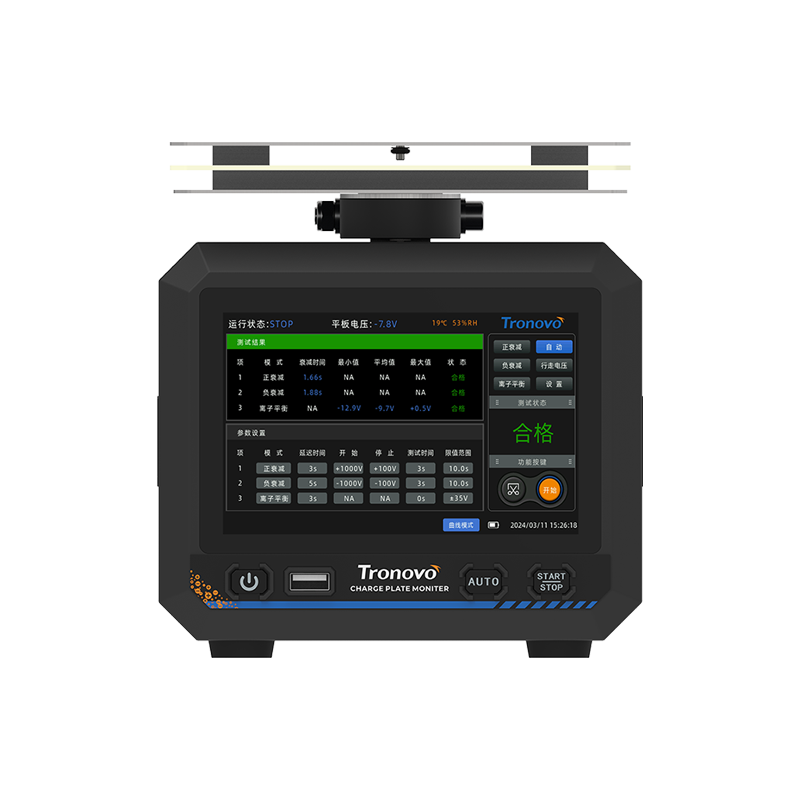

• 5-inch high-definition touch screen display, easy to operate, support data display on the same screen, enhance the efficiency of electrostatic testing.
• Passed IEC 61340-5-1 and ANSI/ESD STM3.1 certification, meets the requirements of ESD protection test, ensure accurate measurement.
• 0.1V voltage resolution, DC to 80Hz wide frequency measurement, adapt to a variety of electrostatic test scenarios.
• Real-time display of temperature and humidity to ensure data accuracy.
• Support automatic judgment, U disk storage and connection to PC upper computer software.
• Built-in high-capacity lithium battery, portable electrostatic tester, no external power supply, suitable for mobile testing.
 |
Charging Pad Monitor | ANSI/ESD S20.20:2021 CompliantThe charging plate monitor strictly complies with the latest American Standard ANSI/ESD S20.20:2021, designed for EPA antistatic areas, accurately monitors the pulse DC offset voltage of the ceiling ionization system (peak range -250V to +250V), the core areas (such as the electronic production line) need to meet the ANSI/ESD S20.20 Table 3 of the provisions of the -35V to +35V balance. Voltage |
Professional Ion Fan Tester | ESD TR53 Compliant | Precise Static Elimination TestingThe charging board measures the time it takes for static electricity to dissipate and the performance of finished static electricity suppression. It meets international standards such as IEC 61340-2-1 and SAE J1645. It is used in electronics manufacturing and for testing static electricity suppression materials, and for ESD protection certification. |
 |
 |
Material Static Dissipation TestCharging Board Monitor specializes in testing material static dissipation time and finished product static attenuation performance in accordance with IEC 61340-2-1, SAE J1645 and other international standards. |

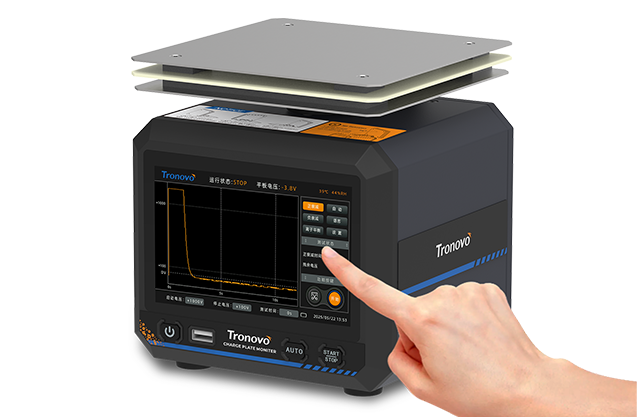

“5-inch” touch screen HD displaySimultaneous measurement of results + temperature and humidity |
 |
 |

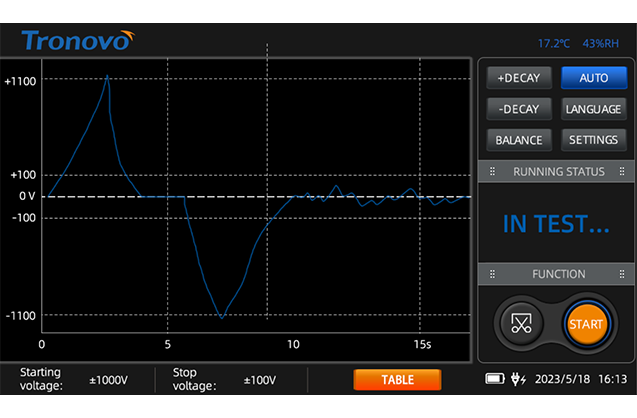

Waveform Observation Intuitive DisplayIon Balance Tester accurately detects ion fan balance, displays high-precision voltage fluctuation curves in real time, supports positive and negative ion balance analysis, and visualizes peak voltage (Peak value). Conforms to ANSI/ESD S20.20 standard to ensure electrostatic protection compliance. |

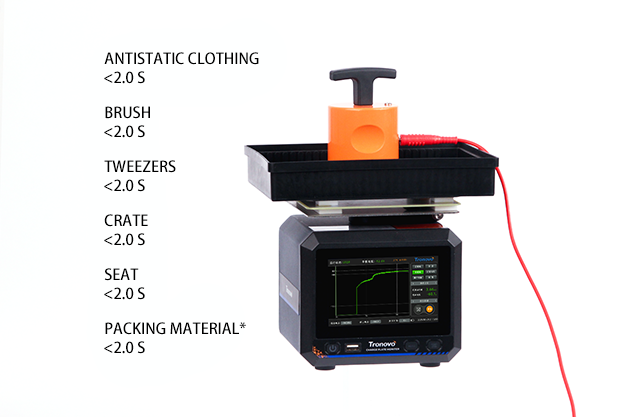

Anti-static materials/supplies performance testingCharging board monitor accurately measure the material static dissipation time and finished product static attenuation performance, in line with IEC 61340-2-1, SAE J1645 and other international standards. Applicable to electronic manufacturing, anti-static material testing, help ESD protection certification. |
 |
 |

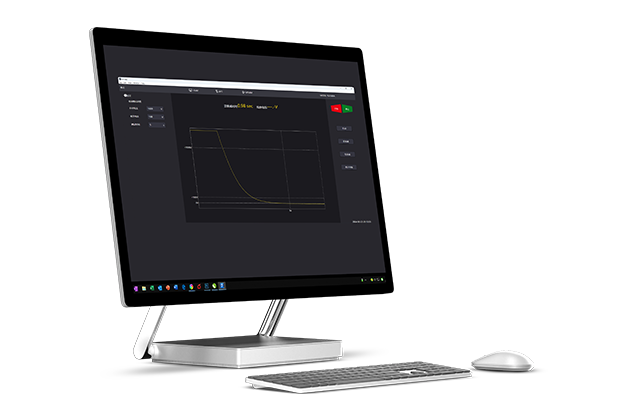

Support upper computer softwareIon Balance Tester supports upper computer software connection, real-time data synchronization via USB, equipped with one-key screenshot storage function (U disk direct storage), simple operation interface, 3 steps to complete the test and archive. |
| Model | MC137 | MC138 |
| Bandwidth | DC to 80 Hz (-3dB) | |
| Display screen | 5-inch multi-touch capacitive screen | |
| Built-in high-voltage device | Outputs +/-1200 V or more | |
| Voltage accuracy | 0～100V：≤±3V 100～1000V:≤±2.5% | |
| Zero Stability | ≤6V/min (no incident ion current, plate voltage drift with time) | |
| Timing Resolution | 0.01s | |
| Upper PC Software | Standard | Option |
| Ion Collector Plate | 150×150 mm (compliant with ANSI/ESD STM3.1) | |
| Color Curve Display | Supported | |
| Auto Determination Function | Supported | |
| Instrument Interface | USB Host, USB Device, LAN Optioned Device, LAN option | |
| Battery operating time | Built-in lithium battery, continuous running time over 5 hours | |
| Power supply | Supplied with 12VDC, 2A, 2.1mm jack charger | |
| Operating environment | 0~+50°C, 10~80%RH (note that condensation is not allowed) | |
| Volume/Weight | 245 x 145 x 265mm / Body approx. 2.8kg (main unit with plate) | |
| Warranty | Two-year limited warranty | |
