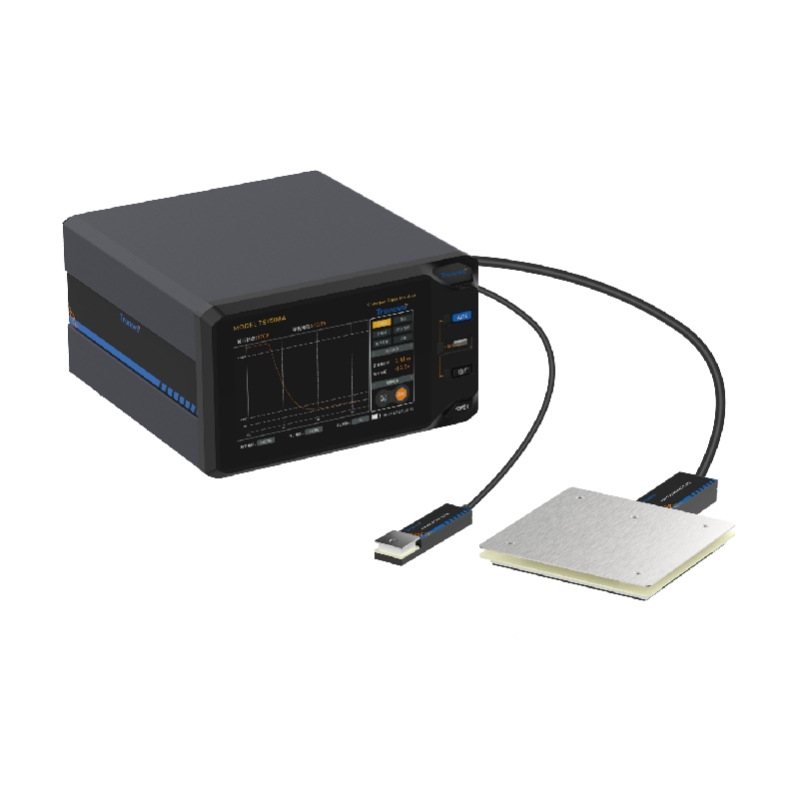

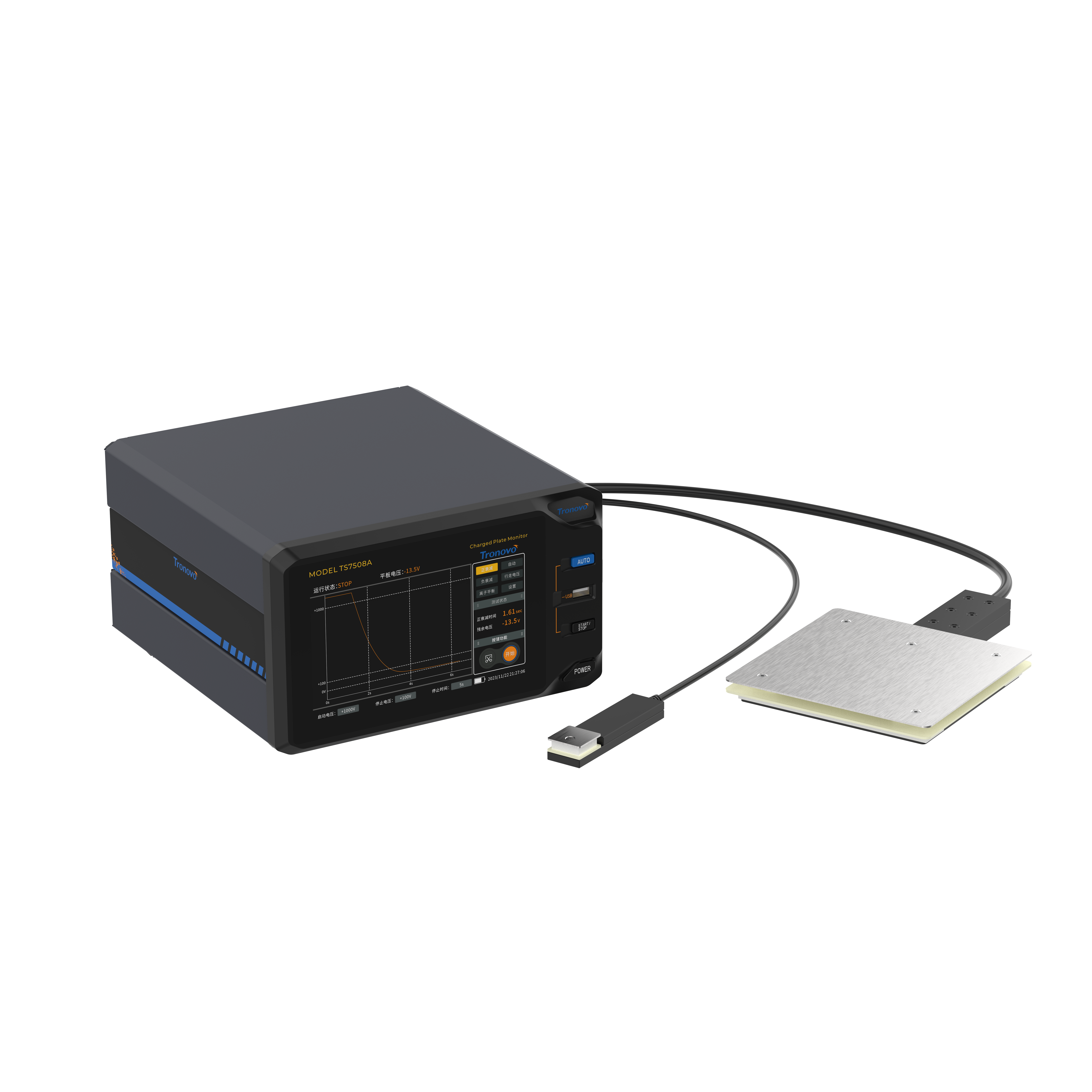

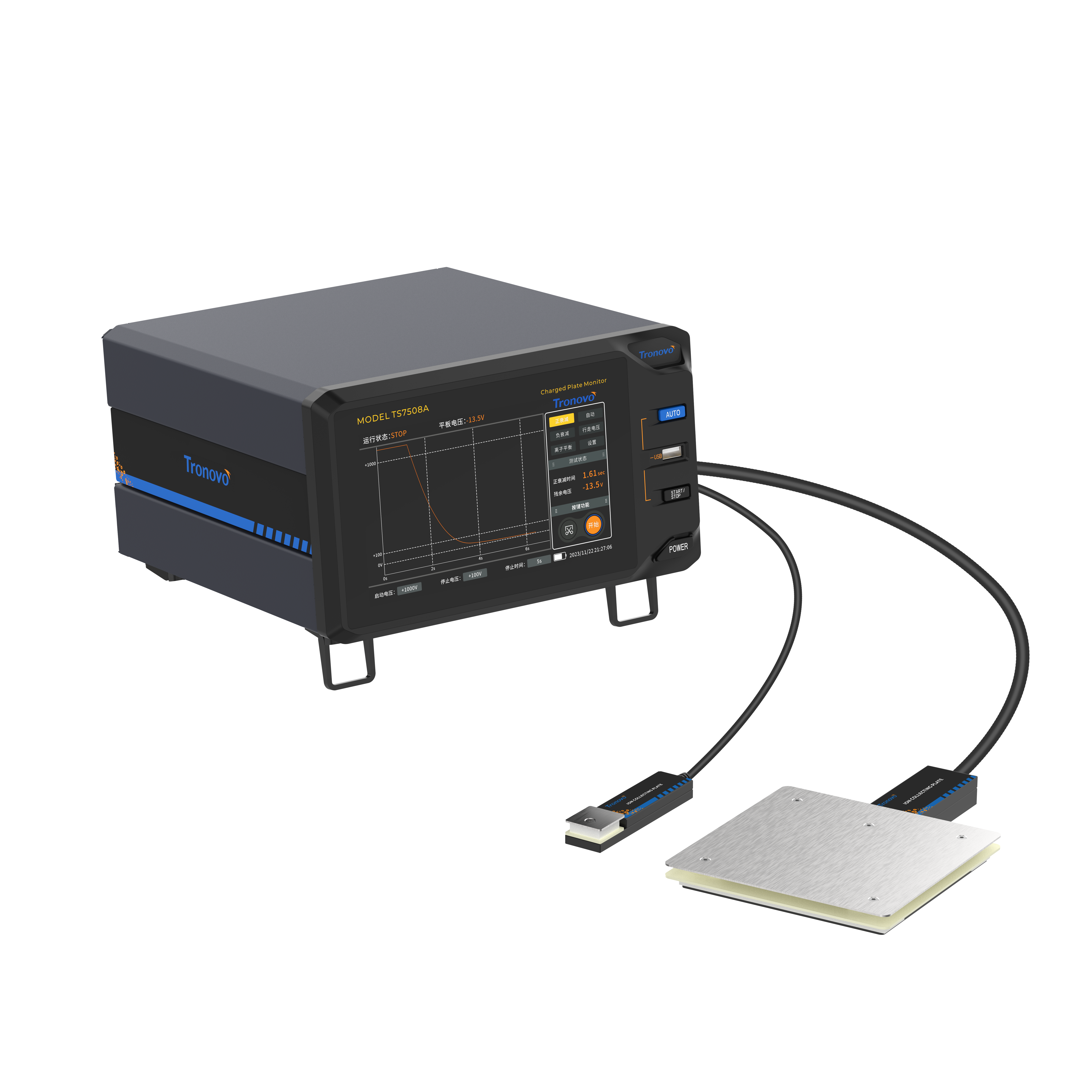

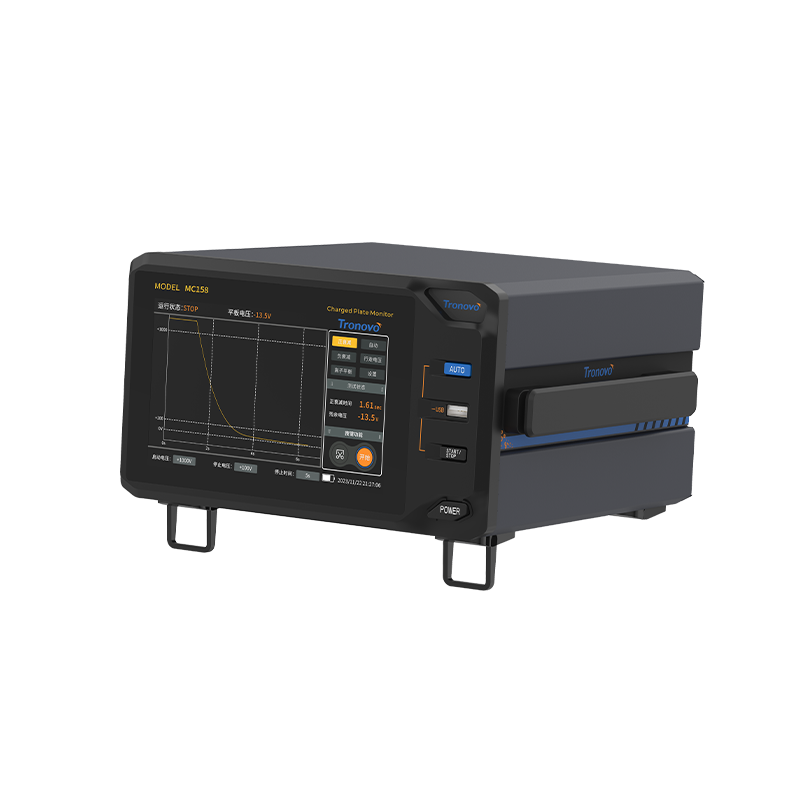

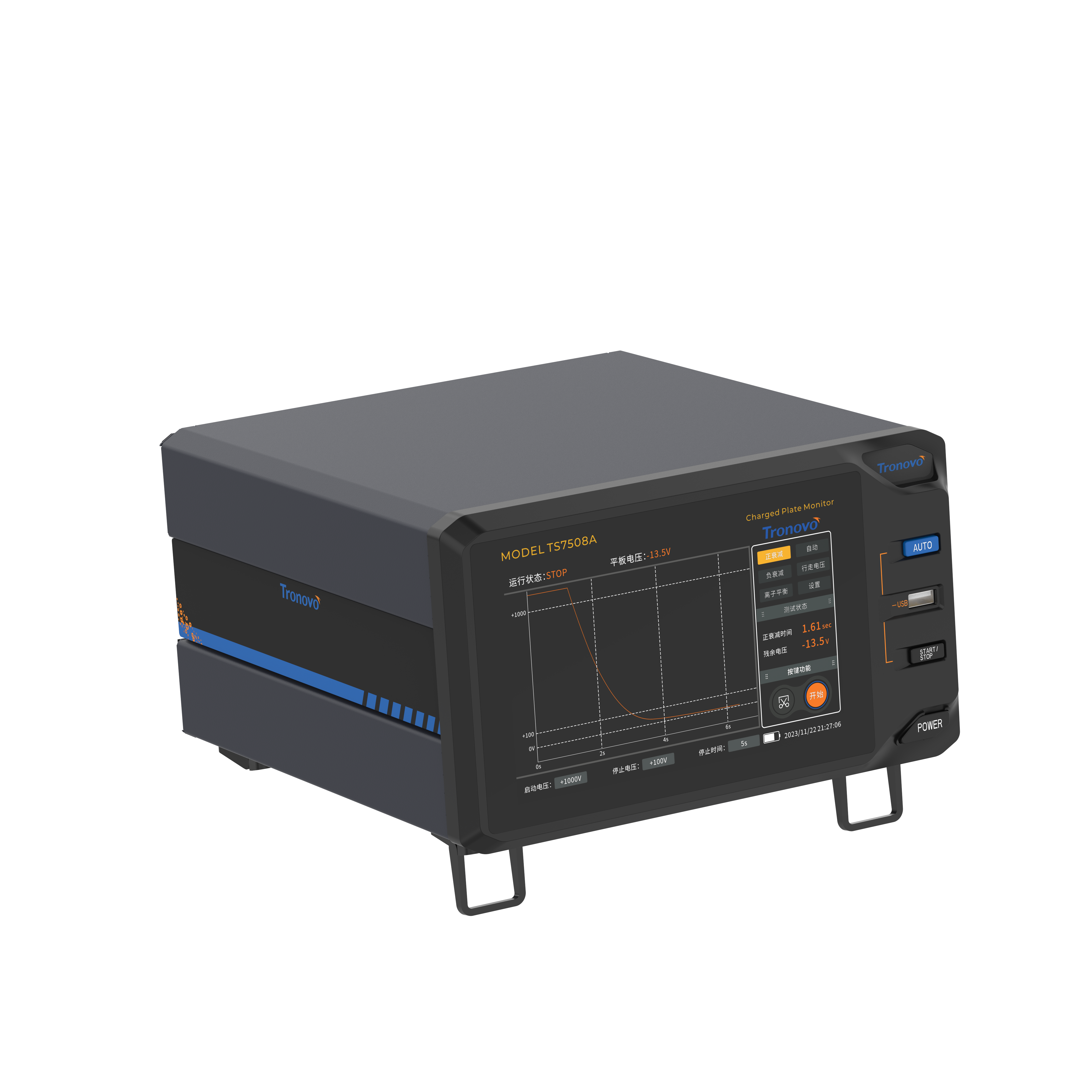

Charged Plate Monitor

MC158Pro MC158A MC158B

Charging Pad Monitor

The Charge Plate Monitor is a professional device for evaluating the performance of air ionisers. It has a 7-inch touch screen for easy operation and intuitive data display, and complies with international standards (IEC61340-5-1 and ANSI/ESD STM3.1). Its high-precision measurement (0.1V resolution, DC-80Hz) can accurately test AC/DC static eliminators, especially suitable for high-frequency AC ioniser testing. Its detachable test plate design is suitable for small spaces and internal testing, avoiding interference. Its built-in temperature and humidity sensors monitor environmental impact, support automatic determination (PASS), data export (USB/U disk) and long-lasting lithium battery power supply. It is the ideal tool for ESD electrostatic protection, ion balance testing, cleanroom monitoring and other scenarios, ensuring the efficient and reliable performance evaluation of ionisers.

Features:
• 7-inch high-definition touch screen, easy to operate, data intuitively displayed on the same screen, to enhance the testing efficiency.
• Comply with IEC 61340-5-1 and ANSI/ESD STM3.1 standards, professional electrostatic test instrument.
• 0.1V voltage resolution, support DC to 80Hz frequency, accurate detection of electrostatic voltage.
• Intelligent monitoring of the environment, temperature and humidity to ensure more accurate test results.
• Automatic PASS/FAIL determination, support U disk storage and USB connection to computer, one key screenshot archive.
• Built-in high-capacity lithium battery, no need for external power supply, suitable for workshops, laboratories, clean rooms and other scenarios.


Professional Ionizer Tester | ESD TR53 Compliant | Precision Static Dissipation Detection

Precision electrostatic protection: strictly meet ANSI/ESD S20.20:2021 standard, apply to EPA anti-static area, support pulse DC ionization system offset voltage peak (Peak) detection, range -250V to 250V. Comply with the relevant provisions of ANSI/ESD S20.20: Table 3, Product Introduction and Conformance Verification Ionizer Offset Voltage (Peak/Peak): -35V<Equilibrium Voltage <35V.

Professional Ionizer Tester | ESD TR53 Compliant | Precision Static Dissipation Detection

This Charging Pad Monitor (Ion Fan Tester) is for verifying ion fans, ion guns, ion rods, ion nozzles, static eliminators, negative ion generators and other equipment. It is strictly compliant with ESD TR53 requirements and accurately measures dissipation time (user-definable) and equilibrium voltage (Peak). It ensures test results meet industry standard limits: -35V < V offset < +35V. This high-precision static dissipation tester is suitable for production line compliance, quality control and R&D testing.

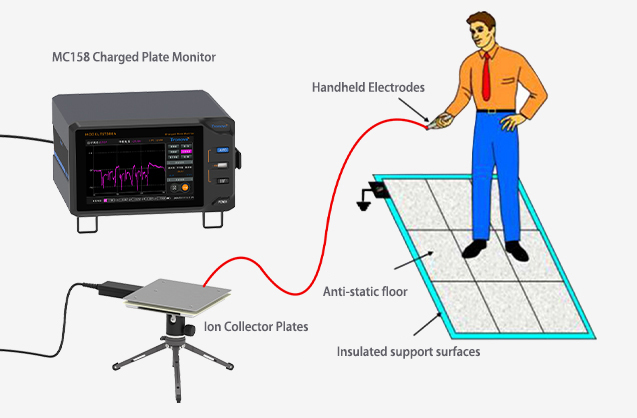

Human walking voltage test

Conforms to IEC61340-4-5 and ANSI/ESD STM97.2 standards, designed for human walking voltage testing, accurately records peak voltage (Peak value) and ensures EPA anti-static area compliance.
Dynamic static monitoring: real-time detection of static voltage peaks generated by the human body walking, support data storage and analysis, suitable for electronics manufacturing, semiconductor and other sensitive environments
Standardized testing: meet ANSI/ESD S20.20 certification requirements, adaptable to anti-static flooring and footwear system testing.

Static dissipation test of materials

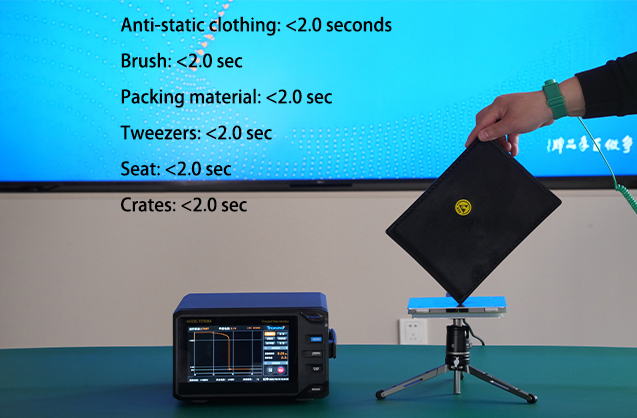

Charging board monitor accurately measure the material static dissipation time and finished product static attenuation performance, in line with IEC 61340-2-1, SAE J1645 and other international standards. It is suitable for electronic manufacturing, anti-static material testing, and helps ESD protection certification.

20250530173407

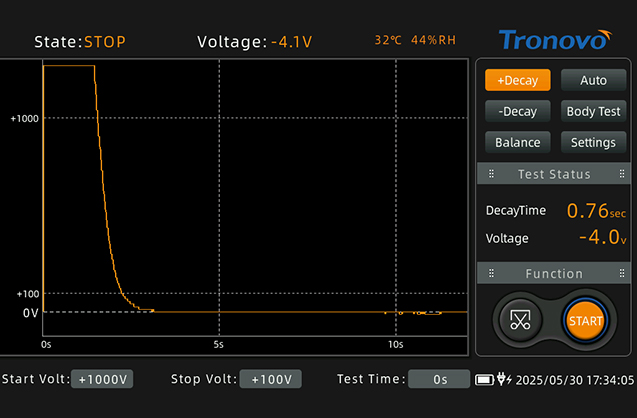

Decay time measurement

The charging plate monitor supports positive and negative decay time testing, programmable start/stop voltage setting (±1000V range), accurate measurement of material static dissipation performance, in line with IEC 61340-2-1, SAE J1645 and other international standards.
Intelligent voltage control: customized test thresholds, adapted to anti-static materials, electronic components and other scenarios, the data can be exported and analyzed through the supporting software, to help the EPA anti-static area compliance verification.

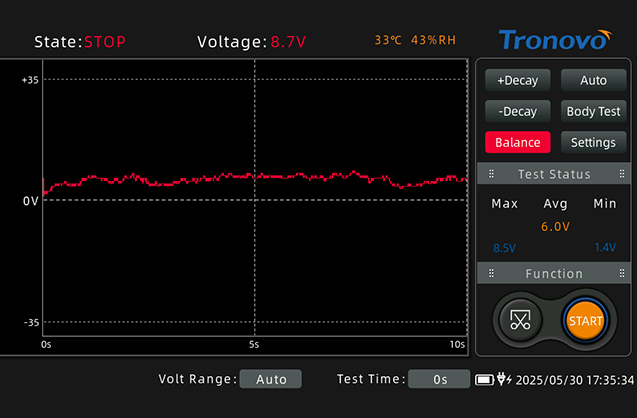

Ion balance measurement

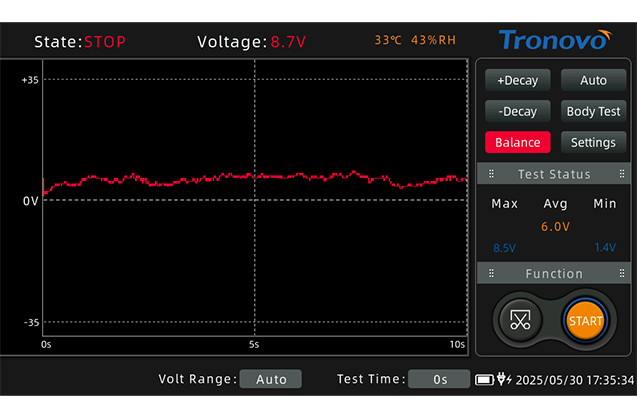

Ion balance tester professional testing ion fan balance, real-time display voltage fluctuation curve, support positive and negative ion balance analysis, in line with ANSI/ESD S20.20 standard. Support peak (Peak) detection and data screenshot storage.

20250530173536
20250530173641

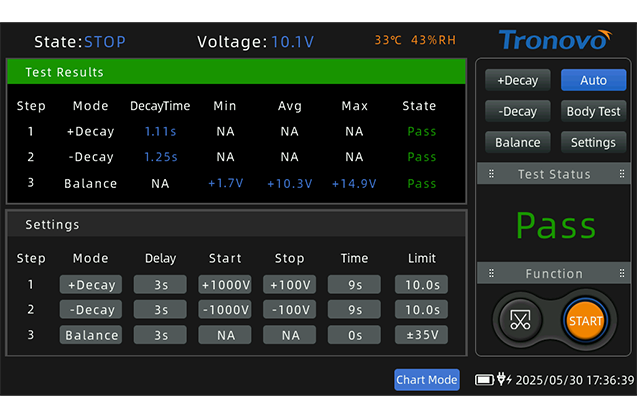

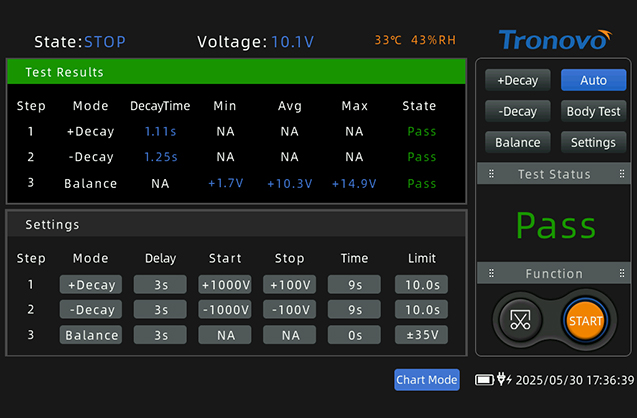

Automatic mode measurements

Ion balance tester supports fully automatic measurement mode, can complete the positive/negative decay time and ion balance of individual or joint testing with one key, can automatically determine the results and prompt the alarm for exceeding the standard.
Intelligent threshold setting: programmable start/stop voltage and upper/lower limit thresholds, suitable for calibration of EPA anti-static zones of ion fans, wind rods and other equipment.

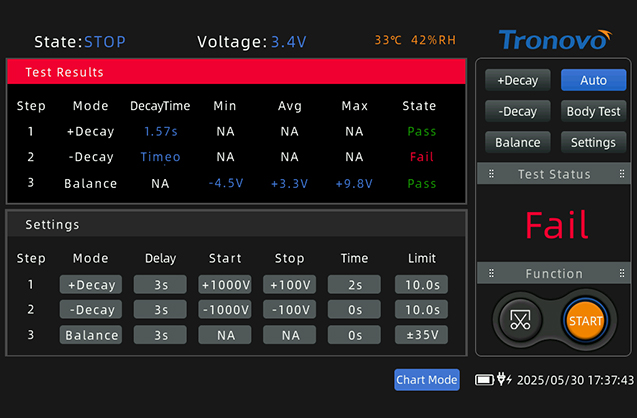

Abnormal alarm status

Charging board monitor supports automatic testing and abnormal status alarm, user can customize the voltage limit range, real-time determination of the test results (PASS/FAIL), and through the LCD screen intuitive display of the conclusion. Complies with IEC61340 standard, suitable for calibration of electrostatic protection equipment and production line quality control scenarios.

20250530173745

Support host computer software

The ion balance tester supports the upper computer software connection, through the U disk one-key screenshot storage test data (including voltage curve and decay time), the operation is simple and convenient, 5 minutes to get started.

ModelMC158ProMC158AMC158B
BandwidthDC to 80 Hz (-3dB)
Zero point stability≤6V/min (no incident ion current, plate voltage drift with time)
Voltage range0 ~±1100 VDC or peak AC
Voltage accuracy0~100V:≤±3V
100~1000V:≤±2.5%
Timing range 0.1~999.9s
Timing resolution0.01s
Output ratio150x150 mmStandard
25x25 mmStandard Optional Optional
Upper computer software Standard Optional -
Human body walking static voltage testSupport Support -
Display screen7-inch multi-touch capacitive screen, display resolution 1024x600
Color curve display Support
Battery operating timeBuilt-in lithium battery, continuous running time of more than 5 hours
Instrument interfaceUSB Host, USB Device, LAN optionalUSB Host
Power supply12VDC, 2A, 2.1mm jack charger
Operating environment0~+50°C, 10~80%RH (note no condensation)
Volume / Weight245x145x265mm/body about 2.8kg (main unit with plate)
Warranty 2-year limited warranty
