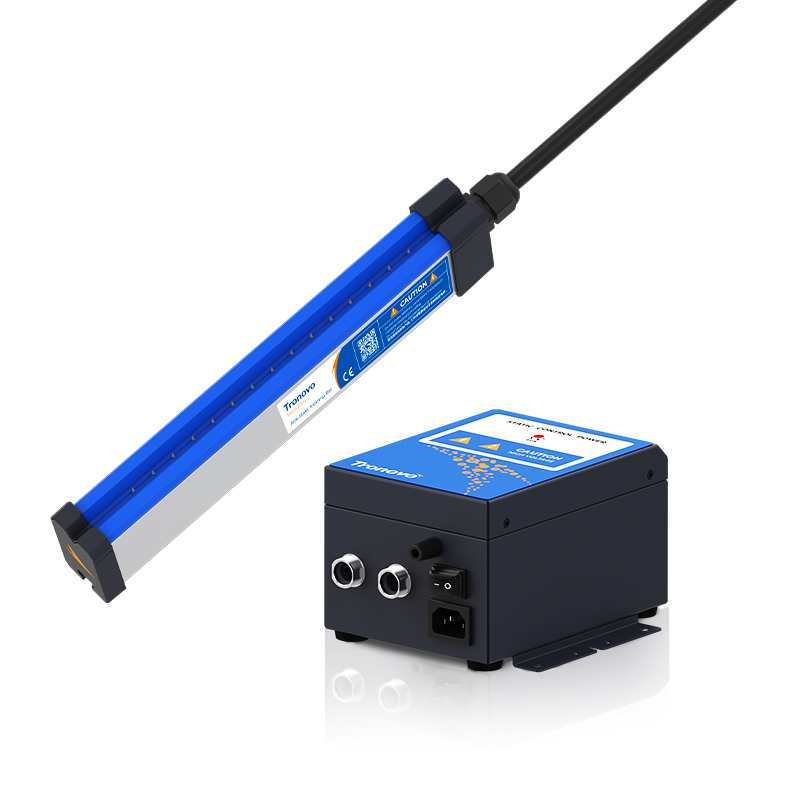

Innovative use of ultra-dense discharge needle and resistance coupling technology to achieve superb electrostatic elimination performance, the elimination speed is 2-3 times faster than traditional ion bars. Ion field coverage distance up to 20cm, even if installed at a distance can quickly neutralise high static charge, adapt to high-speed production lines, film winding and other demanding scenes. Pure tungsten emitter pin is corrosion resistant, long life, safe and no electric shock. Widely used in electronic manufacturing, printing and packaging, medical clean room and other fields, is a high-performance alternative to the traditional ion bar!
Features:
• Ultra-dense discharge needle static elimination bar with 10mm pitch design, ion density increased by 300%, to achieve high efficiency static elimination.
• Resistance coupling anti-shock technology ensures safe operation, through the voltage test, in line with industrial safety standards.
• Patented high-speed dissipation technology, perfectly adapted to high-speed coil production line.
• Military grade airtight plug + coaxial shielded cable, eliminating the risk of high voltage leakage.
• Windless long-distance dissipation, 20cm effective distance, solve the problem of static electricity in precision electronic clean room.
• Flame retardant PVC + aviation aluminium material, support alcohol wipe repeated cleaning use.
• Modular installation design, compatible with a variety of production line installation requirements.
 |
High Speed Airless Ionizing Bar - 10mm ultra-dense discharge needle technology, 0.2 seconds flash static eliminationAdopts 10mm ultra-dense discharge needle array, ion density increased by 300%, 0.2 seconds to quickly neutralise high-voltage static, suitable for high-speed coils, precision electronic production lines and other demanding scenes. No wind design to avoid secondary dust, 20cm ultra-far acting distance, to solve the problem of static electricity in the clean room. |
Super Dense Discharge Needle Static Eliminator - Long-lasting, maintenance-free, industrial-grade static solutionAdopts 10mm super-dense discharge needle array, increasing ion density by 300%, forming a high-intensity ion field, neutralising static electricity quickly in 0.2 seconds, and adapting to high-speed production lines. Innovative air barrier design effectively blocks dust, oil mist and other foreign objects from approaching the ion needles, prolonging the service life and reducing the maintenance frequency by 90%. |
 |
 |
In addition to static electricity-the effect must be better!Adopting the cutting-edge discharge technology, the ion density is increased by 500%, 0.1 seconds to neutralise the high voltage static electricity, perfectly adapted to the needs of high-speed production lines such as SMT mounting, film slitting, precision electronics, and so on. No wind design to avoid airflow interference, 20cm ultra-far acting distance, to ensure a dust-free environment with zero pollution. |

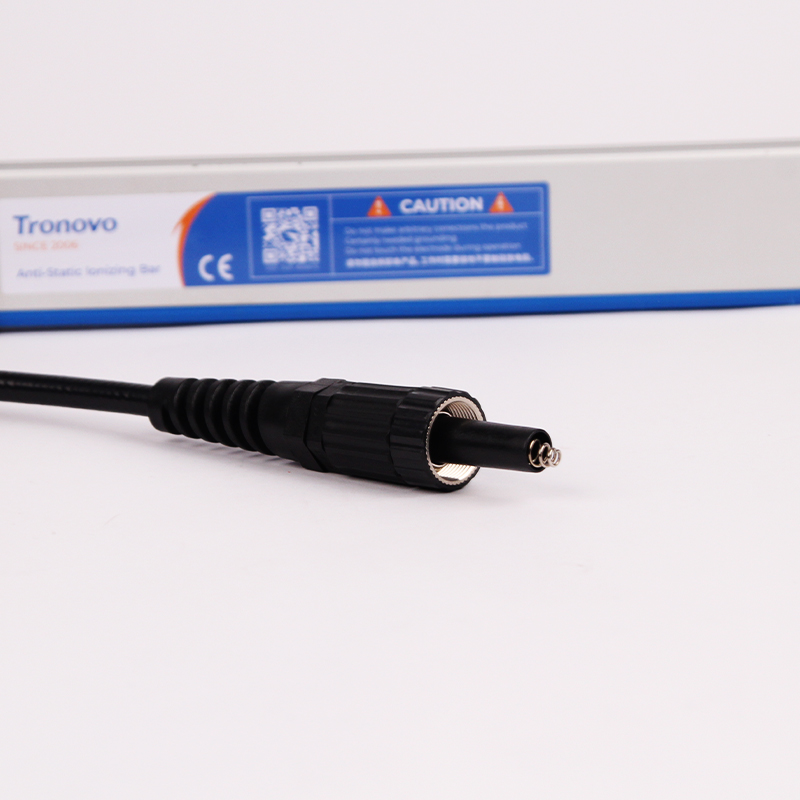

The new gas-tight high voltage plug - an industrial-grade solution for safe connection and efficient groundingInnovative use of gas-tight construction and integrated grounding technology for high voltage strength. The integrated grounding function effectively eliminates static interference and reduces the risk of electric shock by 90% through the dual protection of the metal housing and internal conductive contacts. |
 |
 |

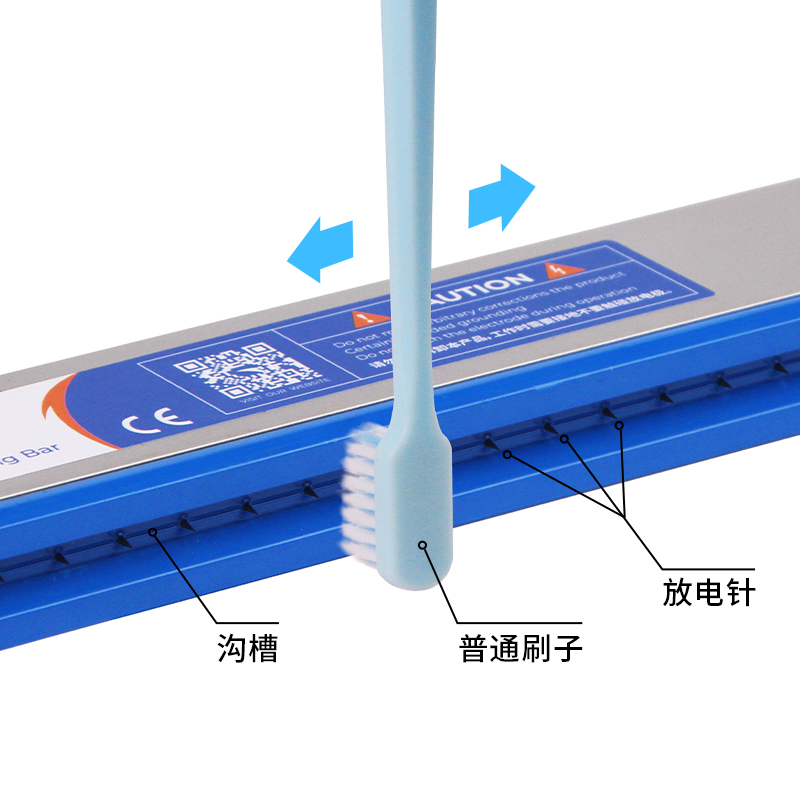

Easy to maintain-easy to clean!Adopting semi-automatic dust removal design, you only need to clean the ionic needle with a soft brush every week to maintain a stable de-static effect. Safety first: make sure to switch off the power when cleaning and keep away from flammable environment. Unique dust-proof structure reduces residue build-up and prolongs equipment life, suitable for high-precision production environments. |
High-speed static elimination experts, escorting the very fast production!Designed for high-speed printing equipment, slitting and rewinding machines, bag packaging line, etc., 0.3 seconds instantaneous elimination of high-voltage static electricity, suitable for ultra-high-speed scenes. Pure tungsten ion needle, long service life. No risk of electric shock, stable operation in harsh environments. The static neutralisation rate is increased by 200%, solving the problems of uneven winding and dust adsorption. |
 |
 |
Uniform static removalPrecision die-cutting production, to solve the common ion bar, because the ion needle spacing is larger products can not do uniform in addition to static electricity. |
Precision die-cutting static elimination experts, even de-static not missed!For precision die-cutting production of static problems, the traditional ion bar due to the needle distance is too large, resulting in small products static electricity and uneven. This product adopts high-density ion array technology, ion needle spacing reduced to 10mm, to ensure that small-sized materials can also be achieved 360 ° uniform de-static, eliminating the receipt of sticky, dust adsorption problems. Suitable for PET, PI and other film materials, static neutralisation rate ≥ 99%, to support high-speed continuous production. Precision de-static, die-cutting special ion bar, high uniform static elimination. |
 |
 |
Suitable ion power sources include:DP712-5.6KV |
| Model | DB52H |
| Discharge structure | Resistive coupling |
| The speed at which the power is dissipated | ≤0.2S(Distance50mm) |

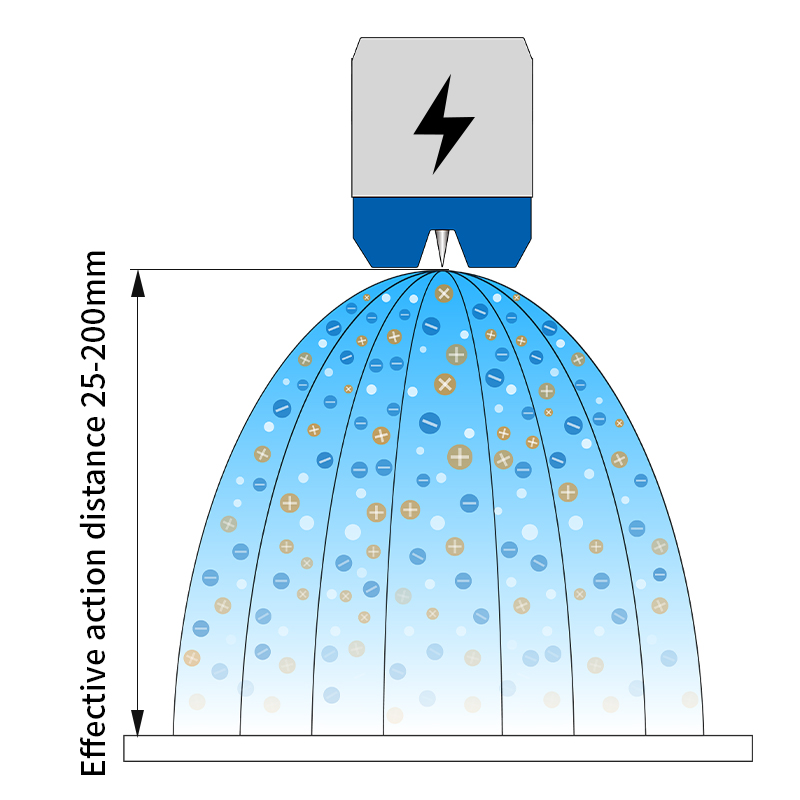

| Range | 25→200mm |
| Installation distance | 50→150mm/Recommend |
| The length of the rod body | 150→3000mm(Can be customized upon request) |
| Rod material | Aluminium |
| Electrode material | Wolfram(W)-Tungsten |
| High-voltage cables | 2.5m (shielded coaxial safety cable, custom length available) |
| Working environment | +5°C to +45°C, Humidity: 35~70%RH (non-condensing) |
| Warranty | One-year limited warranty |
