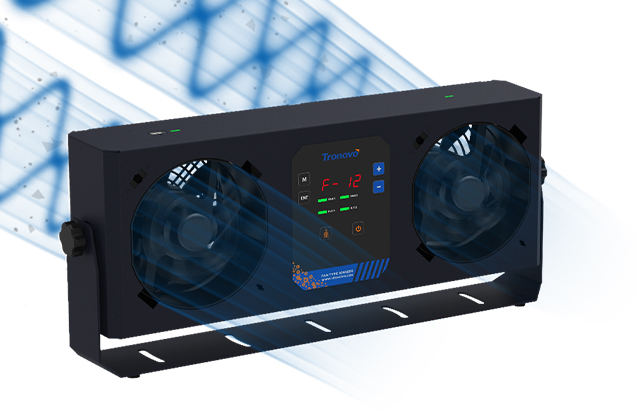

Using 70,000Hz high frequency ionization technology, the ion balance is stable at ± 10V, and the static electricity is effectively neutralized within 1.5 seconds. Equipped with high air volume fan, covering 600mm range, suitable for electronic manufacturing, medical and other precision industries. Equipped with intelligent maintenance: exclusive appointment cleaning function, automatic cleaning of ion needles, reducing manual maintenance costs by 90%. Safe and controllable: Six-fold self-inspection alarm system, each air outlet is equipped with a status indicator to monitor the running status in real time.
Features:
•High frequency AC ionization technology, stable ion balance, ± 10V precise control, rapid elimination of static electricity
•Digital display, real-time monitoring, intelligent interaction, more convenient operation
•Regular automatic cleaning of ion needles, 90% maintenance reduction, adjustable time, to meet the needs of dust-free workshop
•Large range of static elimination, covering 600mm, pure tungsten ion needle anti-oxidation, longer life
•6 kinds of intelligent alarm function, real-time monitoring abnormal, LED status light + sound prompt, working status at a glance
•Parameter locking function to prevent accidental touch and ensure stable operation of industrial electrostatic removal settings
•Sound and light double alarm, static eliminator operation more secure
 |

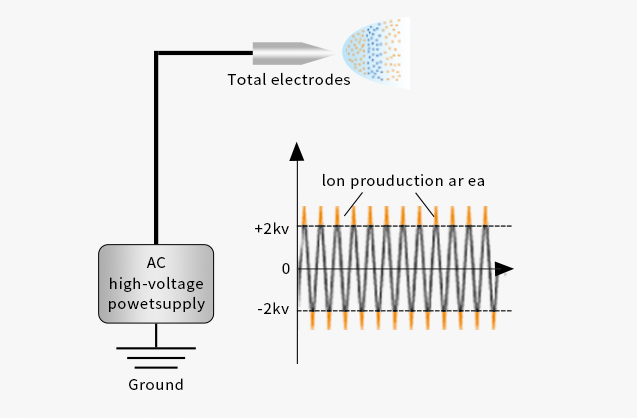

High-frequency technologyUsing high-frequency piezoelectric element technology, the voltage is accurately increased to ± 2kV, and the high-frequency electrode needle is driven to achieve high-efficiency ionization. The positive and negative ion switching cycle is up to 70,000Hz, ensuring stable ion balance (within ± 10V) and quickly eliminating static electricity within 1 second. It is suitable for dust-free workshop, electronic manufacturing and other scenes to solve the problem of electrostatic adsorption of precision components. The system integrates intelligent alarm function, real-time monitoring of ion status, supports industrial-grade high-frequency static elimination requirements, and is compatible with automated production lines. |
Intelligent scheduled cleaning, automatic reverse vacuumingThe intelligent reservation system can customize the cleaning time and adapt to the scene requirements such as dust-free workshop and electronic manufacturing. Innovative fan reversal technology, automatic cleaning when the reverse vacuum, the dust will be concentrated outside, to avoid secondary pollution products. Long-term maintenance plan: regularly clean the ion needle and filter screen to reduce 90% performance attenuation and extend the life of the equipment. |
 |
 |

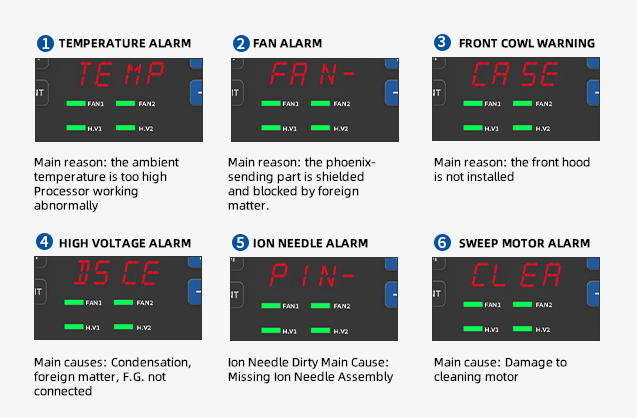

6 kinds of alarm functions, visual displaySix intelligent alarm system, real-time monitoring of high-voltage fault, fan abnormal state, through the LED indicator and LCD screen visual display operation data. Support sound and light dual alarm, the red light is always on when the fault occurs, and the buzzer prompt is triggered to ensure the safety of static elimination in dust-free workshops, electronic manufacturing and other scenes. Magnetic mesh cover design, automatic power-off during maintenance, to achieve industrial-grade reliable operation and maintenance. |

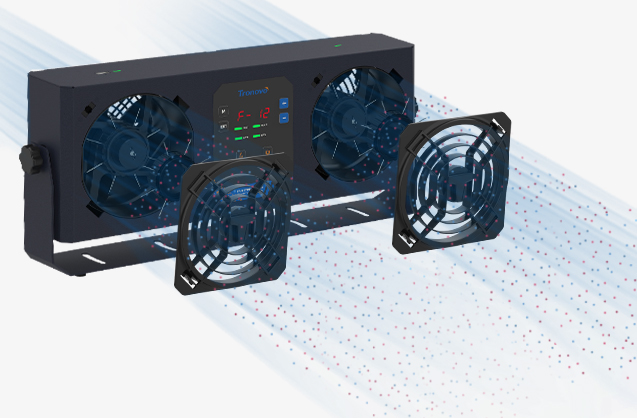

Newly developed, air duct structureThe patented air duct structure is adopted to realize complete control of fan air flow through air flow guiding technology, ensuring that ions evenly cover the 600mm range, and the static elimination speed is faster, which is 30% better than that of products of the same grade. Specially designed for electronic manufacturing and dust-free workshops to solve the problem of electrostatic adsorption of precision components. |
 |
 |

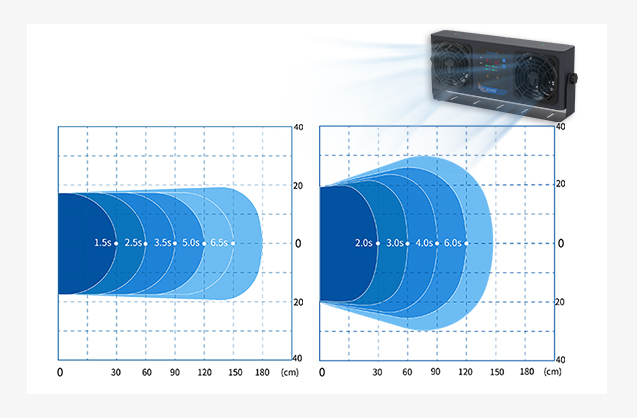

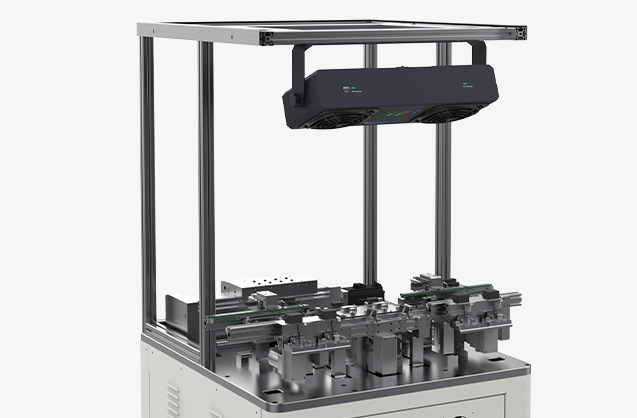

Large-range, long-distance static removalHigh frequency AC ionization technology (70,000Hz) is adopted to realize accurate ion balance of ± 10V, eliminate static electricity of 1000V within 1 second, cover a distance of 1.5 meters, and meet the needs of large-scale electrostatic removal such as electronic manufacturing and dust-free workshops. The patented air duct design combined with the axial 15 ° airflow expansion improves the ion transport efficiency by 30%. |

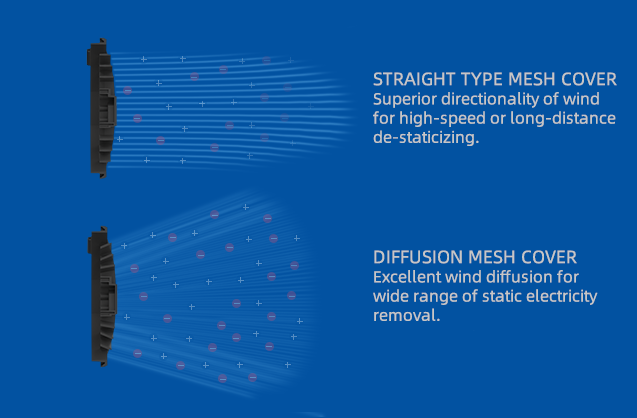

Equipped with two kinds of patented net cover, flexible to meet the needs of different scenarios:Long-distance electrostatic removal screen cover: the use of axial airflow expansion technology, to achieve 1.5 meters long-distance coverage, accurate adaptation of electronic manufacturing production line; |
 |
 |
Button lock function to avoid arbitrary modificationEquipped with industrial-grade key locking system, through long press key combination (such as "" and "-") to lock, completely prevent production line personnel from having no authority to adjust wind speed and tamper with function settings. Support authority hierarchical management, only authorized personnel can unlock and adjust parameters (such as 7th wind speed, cleaning cycle, etc.) to ensure the stability of static elimination in dust-free workshops, electronic manufacturing and other scenes. |
Equipped with 2 bright LED front panel indicators, independent display fan operation status:The green light is always on: the ion air outlet operates normally, and static electricity is being eliminated (ion balance ≤ ± 10V); |
 |
 |

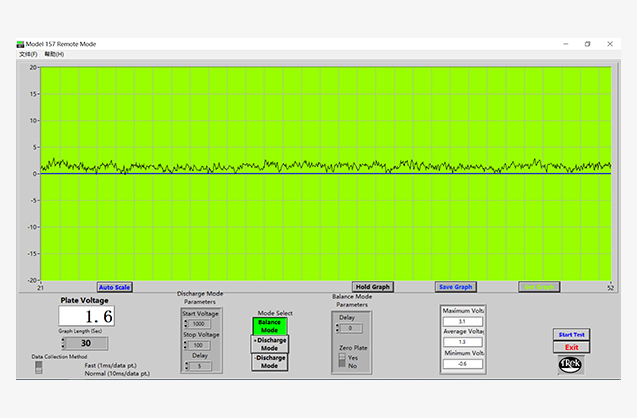

Extremely stable ionic balanceThe high-frequency system (70,000Hz) is used to achieve ion balance deviation ≤ ± 10V, far exceeding the electronic industry standard (ANSI/ESD S20.20, IEC 61340-5-1). The residual voltage is stable within ± 10V, which is suitable for nano-scale process requirements such as semiconductor manufacturing and precision electronic assembly. |

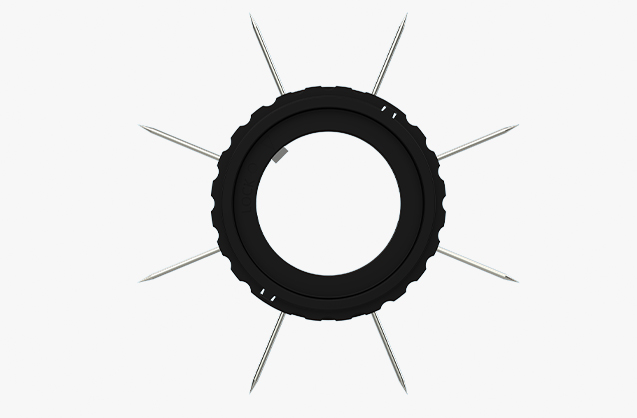

Special tungsten alloy ion needles are not easy to wearThe use of special tungsten alloy ion needle, higher hardness, life is more than 5 times the SUS material needle, suitable for high frequency ionization and 24 x 7 continuous operation requirements. Through self-cleaning technology, reduce electrode contamination, ensure stable ± 10V ion balance, residual voltage ≤ ± 10V, and meet ANSI/ESD S20.20 standard. |
 |

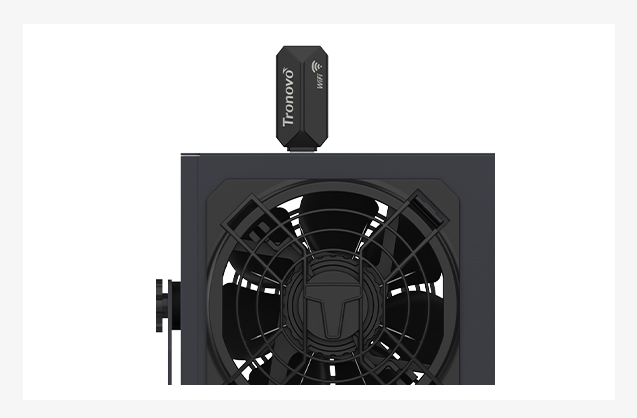

WIFI wireless networking Efficient integrated managementThe use of networking technology, get rid of the shackles of network cables, reduce tedious wiring process. Unified monitoring of device status through the cloud management platform to meet the needs of multiple scenarios such as the Industrial Internet of Things. * Requires separate purchase of WIFI module |
 |
| Class | Digital Representation |
| Model | DF462 |
| Operating voltage | 100~240VAC ±5% |
| Product power | 35W |
| The speed at which the power is dissipated | Approx. 1.5 sec. (Note 1) |
| Ionic balance | ± 10V or less (Note 1) |
| Ionization techniques | High-frequency AC method, approx. ±2KV, 70KHz |
| Airflow output | 17~180CFM×4Fans (12 Levels Adjustment) |
| Airflow area | 40×150cm (Vertical Grille) 60×120cm (diffusion grille) |
| Fan noise | 75dB(A) |
| Ion needle material | Wolfram |
| Ozone concentration | ≤ 0.04ppm or less (Note 2) |
| Fan Alarm (FAN) | have |
| High Voltage Alarm (Ha.Wa/Ain) | have |
| Ion needle dirt detection | have |
| Automatic cleaning at regular intervals | have |
| Manual sweeping | have |
| Sweeping, reversing and dusting | have |
| 面板锁定 | have |
| WIFI interface | have (optional wireless networking module) |
| Grounding method | C (capacitor) ground |
| Material | Shell bracket, metal paint, grille ABS |
| Operating environment | 0~+50°C (note no condensation), 35~75%RH |
| Dimensions | 435×182×96.3mm (including stand) |
| Weight | Approx. 3,240 g (with stand) |
| Warranty | One-year limited warranty |
| Annex | Vertical grille (2 units), Wide-angle grille (2 units) National standard power cord (1 pc), auxiliary grounding wire (1 pc) Blowing ribbon sticker (1 photo), factory inspection report (1 photo) Certificate of Conformity and Warranty Card (1 sheet) |
(Note 1): Maximum air volume 300 mm from the front of the air outlet, representative value measured when the vertical grille is not equipped with a dust filter.
(Note 2): Maximum air volume 150 mm from the front of the air outlet, representative value measured in an open space.
* In order to facilitate product improvement, the appearance and specifications of the product may be changed without prior notice.
