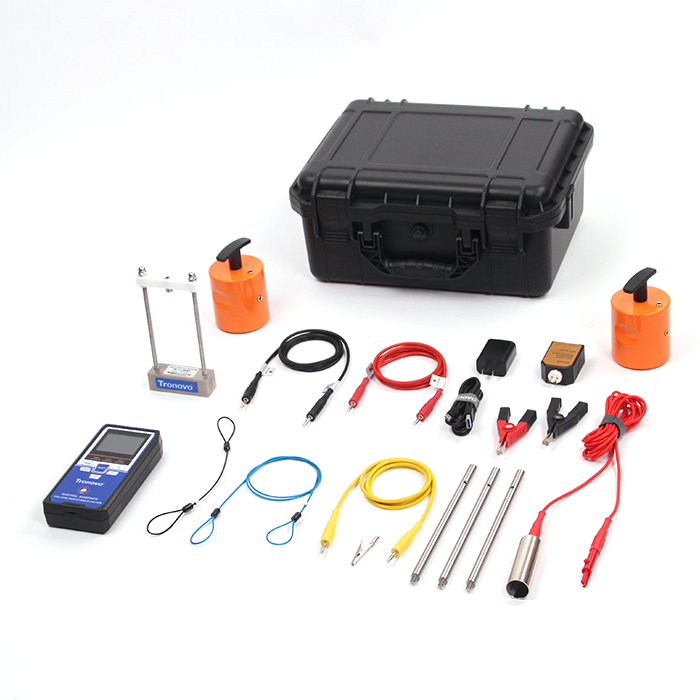

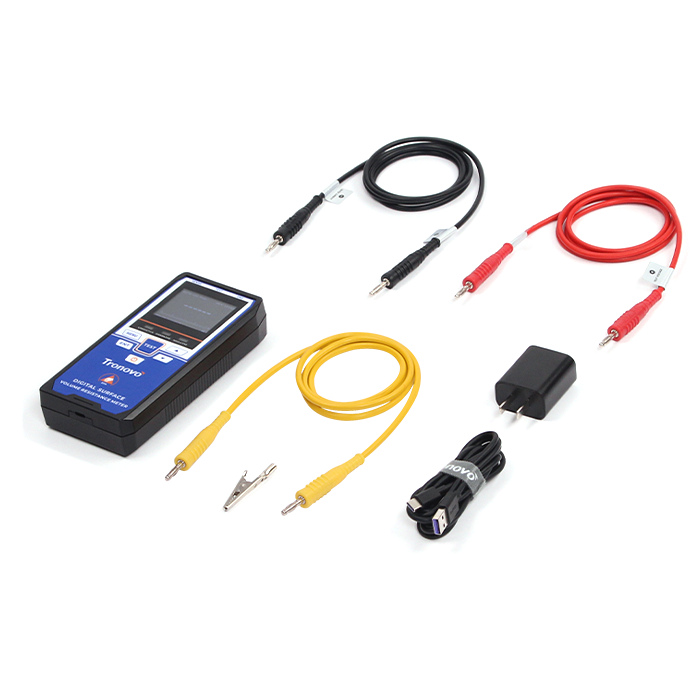

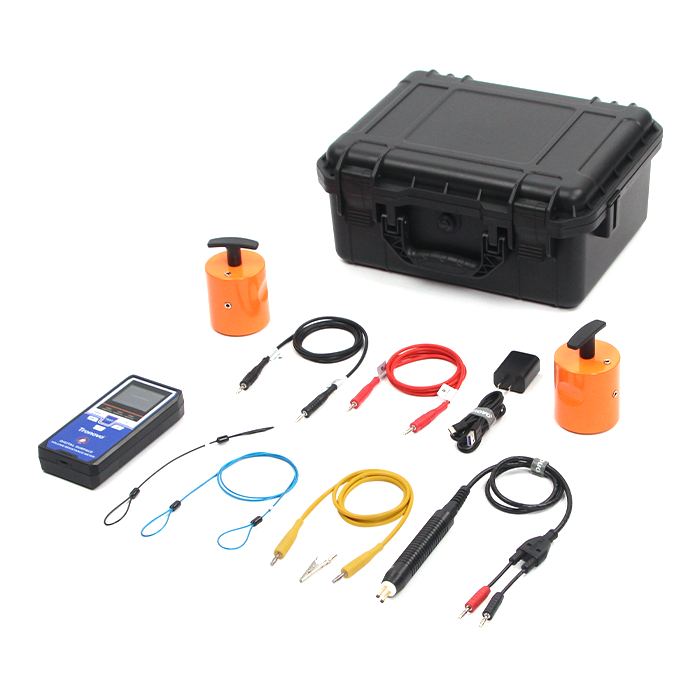

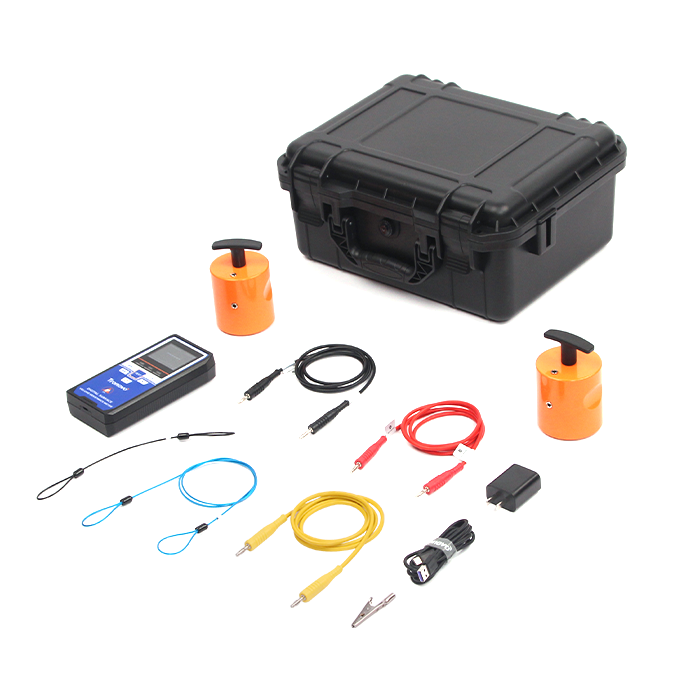

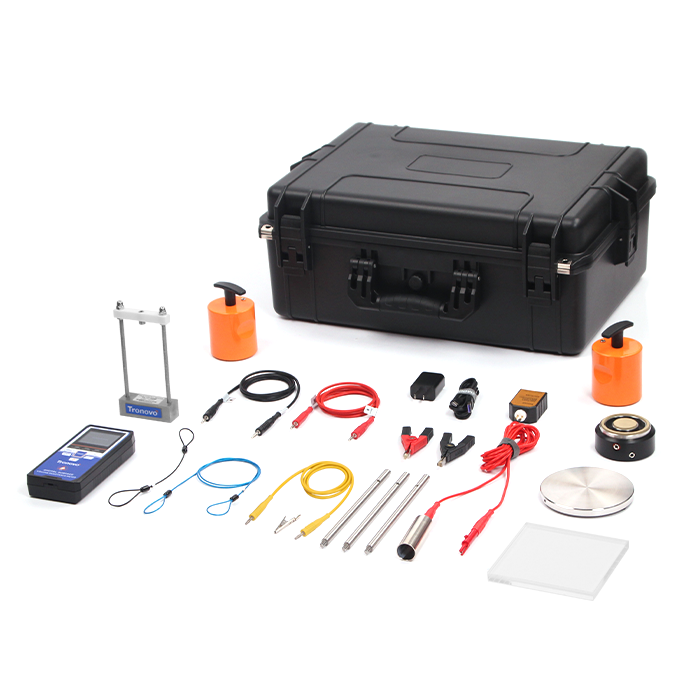

Full-featured Digital Resistance Tester

TM5402 Type

The TM5402 is a full-featured antistatic measuring instrument for checking surface and earth resistance, measuring the impedance or resistance of all conductive, antistatic and electrostatic discharge surfaces, as well as relative humidity and temperature, which affects electrical properties. According to the international standard ‘EOS / ESD, CECC, ASTM and UL’ test procedures designed to be used for different table mats, floor coating layer, lacquer, plates, wrist straps, ankle straps, anti-static overalls, shoes (shoe covers), a variety of PE bags and different specifications of containers and other consumables required for all production lines, including engineering, manufacturing, protection, quality control, and so on. Testing of any flat material for engineering, protection, quality control, incoming inspection, research and sales.

Product Features:
• Digital, easy-to-read colour TFT display
• Quick ESD determination, tri-state indicator visualises dissipative, conductive or insulating properties.
• Measurement of temperature and humidity, which are important for resistance measurements
• Fully automatic measurement, automatically selects the resistance range and test voltage for you.
• Voice announcements to improve testing efficiency

New TFT large screen displays

Displays resistance tail and index, temperature, relative temperature, and analogue pointer display function. Since humidity and temperature affect the electrical properties of the material being tested. Low temperature and humidity will increase the resistance value and slow down the dissipation time. Under high humidity conditions, a thin layer of water will condense on the surface of the object to be tested or be absorbed by it, and this hygroscopicity increases the electrical conductivity of the material, and this is especially true for materials that are highly water-absorbent.

New data logging and exporting - in a flash drive!

Up to 99 measurements can be stored and recalled, and connection to a PC is supported for exporting test data.

New measurement stability mode

A 15-second electrification cycle is set for test requirements and three different modes of measurement are supported.

Automatic switching of test voltage (10V or 100V ±5%)

According to ESDA standards STM 4.1 and S7.1, a voltage of 10 V must be selected when the surface resistance of the conductor is less than 106; greater than or equal to10⁶When,Select the voltage of 100V, the instrument has a built-in transformer which can convert the battery voltage to 10V or 100V, the instrument can test with 10V or 100V and adjust automatically according to the test material.

直View Display Test Conclusion

The material type can be visually indicated by judging the lamp and screen colour.
C ONDUCTIVE conductive material, reference range:＜1.0×10⁵Ω
DISSIPATIVE Dissipative material reference range:1.0×10⁶~1.0×10¹¹Ω
INSULATIVE Insulating materials Reference range:>1.0×10¹¹Ω

voice announcement function

Increase productivity and reduce user reliance on screens or numbers.
Feedback of measurement results through sound provides the user with a more intuitive and convenient operating experience. This type of interaction not only reduces the visual burden on the user, but the user can more easily hear the measurement results without having to struggle to see the numbers on the screen.

Rechargeable design - built-in lithium-ion battery

Increase portability, reduce costs, enhance user experience and protect the environment. The innovative integration of universal DP interface into the Eyewear Surface Resistance Tester makes charging more convenient than ever before. By simply connecting to a mobile phone charger or rechargeable battery, the tester can be easily powered or charged, completely subverting the tedious and costly hassle of traditional battery replacement. By reducing the use of disposable batteries, we jointly contribute to the reduction of e-waste and the protection of the global environment, demonstrating the beautiful vision of the harmonious coexistence of technology and nature.

English and Chinese switchable

Allows menus to be switched between languages to serve users in different parts of the world。

Model number	MR63
Resistance range	1.0x10~1.0x10²Square ohm
Test Accuracy	士10%、士20%(≤1.0x10⁴和>1.0x10¹¹)
Display Mode	TFT colour screen
Test voltage	10V/100V 土5%(Automatic)
Conformity judgement	Adjuvant
Count in one's voice	Adjuvant
Temperature display	Adjuvant
Humidity display	Adjuvant
Language Selection	Chinese/English
Rechargeable battery	2x3.7V Li-ion battery
Battery Life	240 hours standby or approx. 4000 measurements
charging port	TYPEC
Operating environment	Temperature:0~50°C Humidity:35~80%RH
Weights	350g
Warranty	One-year limited warranty
