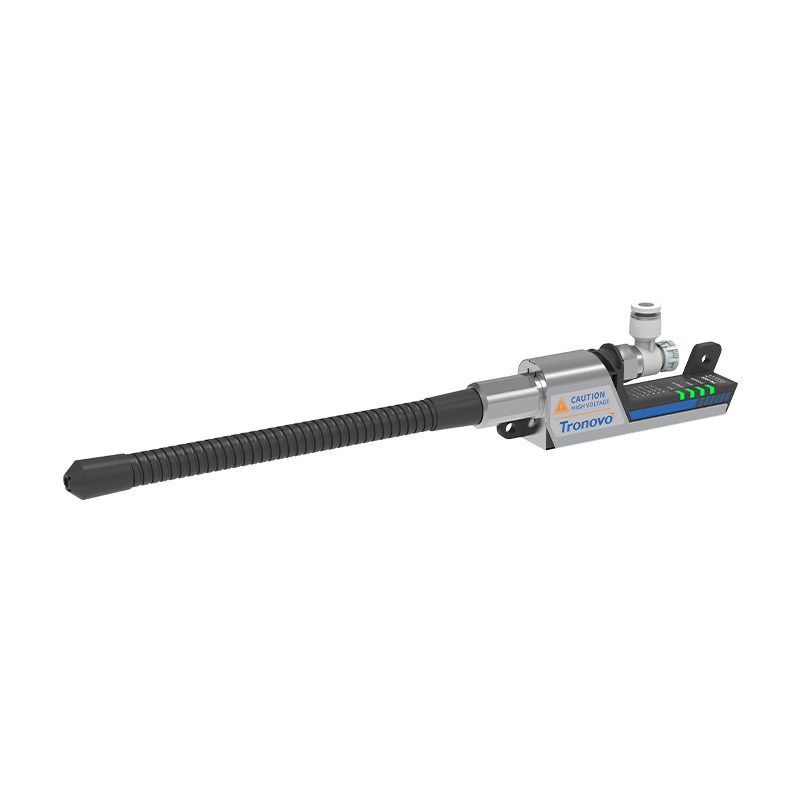

Universal nozzles

DN251-SN20 Type

DN252-SN20 Type

The ultra-small design aims at the workpiece in tight locations to remove dust and contaminants while eliminating static electricity. There are a wide variety of nozzles, so you can choose according to your application. By using a high-frequency AC method, an extremely stable ion balance is achieved. Since the ion balance is not affected by the supply air pressure and the installation distance, there is no need to perform cumbersome adjustments after installation.

Features:
• High-frequency AC ionization technology, extremely stable ion balance
• Ultra-small design for easy assembly inside the device
• There are a wide variety of nozzles, and you can choose different types according to the application
• Signal input and output control functions, using IO communication to achieve automatic connection
• Reassuring safety design, 24V DC power supply, no need for high-voltage cables
• Equipped with running status indicator, real-time display of operating status and ion abnormality
• Easy to maintain, the ion needle can be easily removed and cleaned

The LED indicator visually shows the working status

It has an "inspection function" that automatically prompts the cleaning of the ion needle, and various functions can be checked by LED indicators, and the operating status of the static eliminator can be monitored externally by using the output of various functions.

High-frequency AC ionization technology

High level of static elimination, low voltage 2500V; Ion generation frequency: 70,000 times/second;
Extremely stable ion balance (no adjustment required)
Ions can be transported through pipes
The power is dissipated quickly
Can be used up close
High level of security

Positive dissipation time measurement chart:

The time required to reduce the charge of a live object with +1000V to +100V.

Negative dissipation time measurement plot:

The time required to reduce the charge of a live object with -1000V to -100V.

Stable ionic balance:

When positive and negative ions are continuously irradiated, the electrostatic voltage of the target is close to 0 V.

Name of article	Body style	Nozzle Accessories	Model	Material	illustrate
Diffusion nozzles			TN-SN01	SUS 304	Straight lines diffuse the air
Shower-type nozzles			TN-SN02	SUS 304	45 degree spray angle for wider air diffusion
Connected hose nozzles			TN-SN03	Metal	The nozzle for connecting the ion nozzle body and the catheter can be connected to an arbitrarily curved conductive catheter, the diameter of the conduit is ø6mm, and the minimum bending radius: R25mm is required with an adapter (TN-SN10)
Adjustable point nozzle			TN-SN04	SUS 304	The spray angle can be adjusted arbitrarily in the range of 60 degrees, and the nozzle should be adjusted first, and then the fixing nut should be used with an adapter (TN-SN10)
Round-nosed nozzles			TN-SN05	Plastics	Powerful straight air injection from a small hole in the front end is used with an adapter (TN-SN10)
Flat-head nozzles			TN-SN06	Plastics	A wide range of uniform electrostatic precipitators are required to be used with an adapter (TN-SN10)
90-degree nozzle			TN-SN07	Plastics	In addition, the air injection angle is perpendicular to the thread surface, which is suitable for use with adapters required in fields with limited space (TN-SN10)
Stick type side blow nozzle			TN-SN08	SUS 304	The effective length of 270 mm can be used to increase the static elimination area, which is suitable for the field needs of the limited space and the adapter is used (TN-SN10)
Rod type side blow nozzle + bendable hose			TN-SN09	SUS 304	The effective length of static removal is 270mm, the diameter of the rod side blowing nozzle is connected to the conductive catheter is ø6mm, the minimum bending radius is R25mm, the length of the conduit has a great impact on the static removal time, please choose the appropriate one according to the site situation and use the adapter (TN-SN10)
Nozzle adapters			TN-SN010	SUS 304	RP1/4 (female) to M16×1.5 (male) is suitable between the nozzle and the thread of the static eliminator.
Bamboo gimbal nozzle			TN-SN19	Shuo material	It can be installed on TN2101 or TN2102, the default length of the product is 40cm, and there are 13 nozzles in total. Customers can shorten or extend as needed.
Universal nozzle			TN-SN20	Metal	Automatic ion balancing system, LED display maintenance alarm function I/0 wiring signal (support PLC control), recommended by the automation industry
Rotate the fixing bracket			TN-RB01	SUS 304	The ionic nozzle body is fixed and installed

Model	DN251-SN20	DN252-SN20
Operating voltage	≤1.0S(Distance 50mm)
Current consumption	≤\|土50V\|(AVE)Distance 50mm
Dissipation time	0.1~0.7Mpa
Ionic balance	≤\|士10V(AVE)
Supply air pressure	0.15~0.7MPa
Supply air temperature	0 to +50°C
Connecting tubes	The outer diameter ∅ 6, the inner diameter ∅ 4
Ozone concentration	<0.03ppm @30cm
I0 interface	-	have
Operating environment	0~+55°C (note no condensation), 35~65%RH
Volume/weight	33X110X20.8mm/ body approx. 120g
