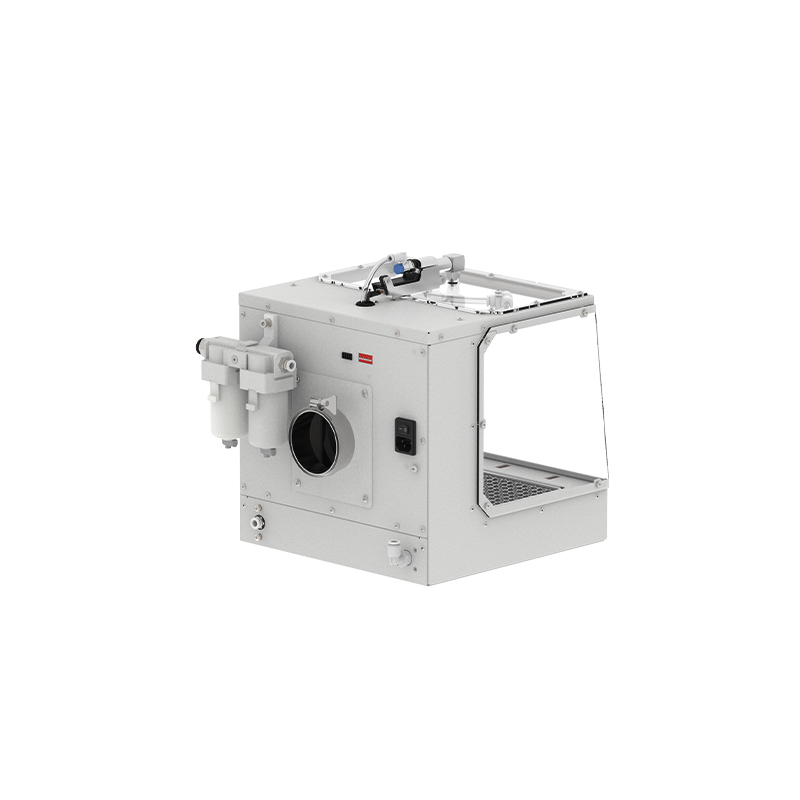

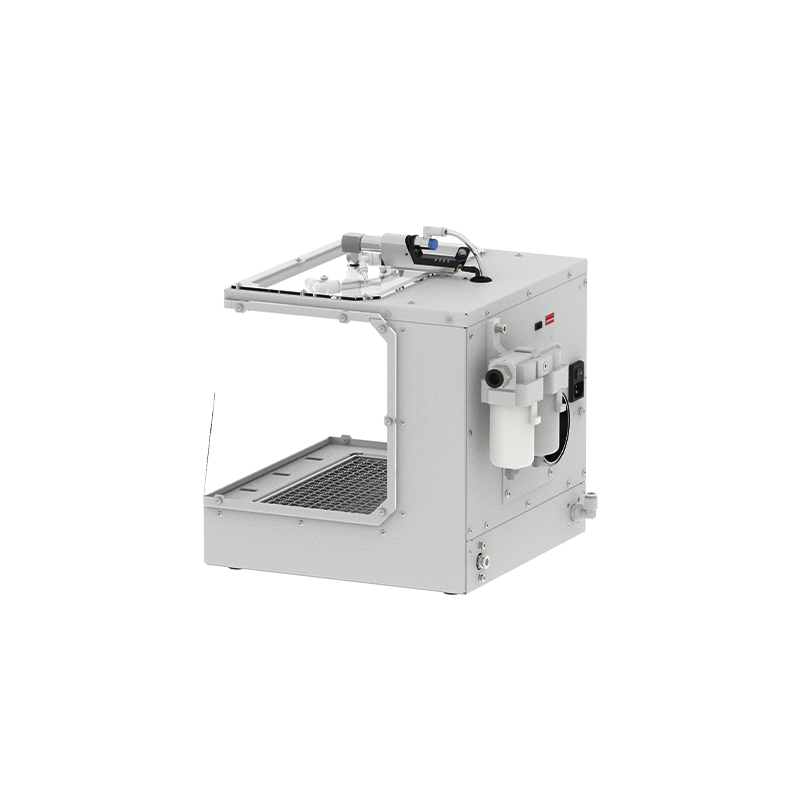

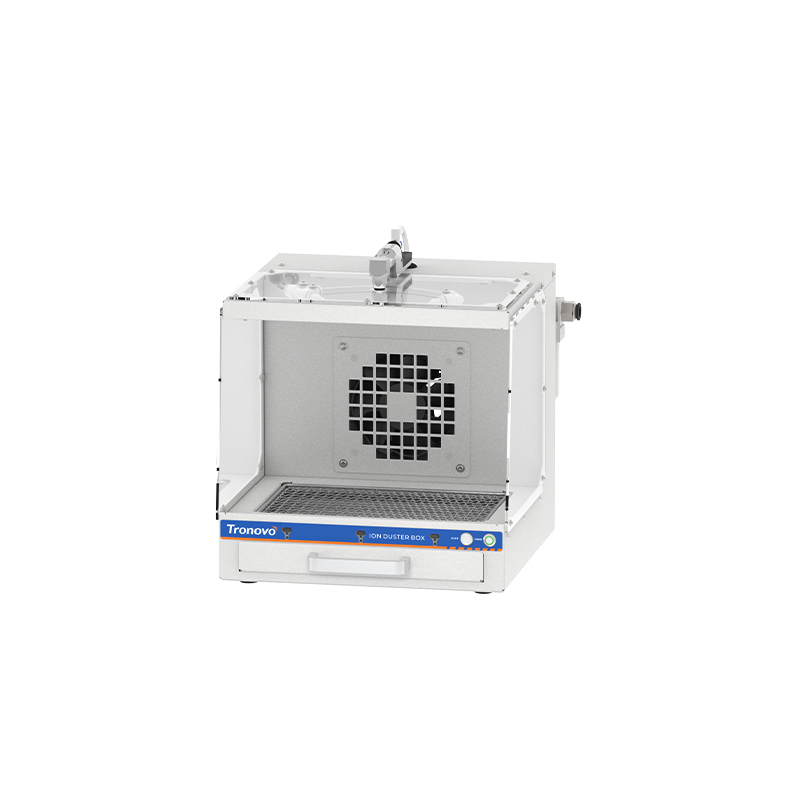

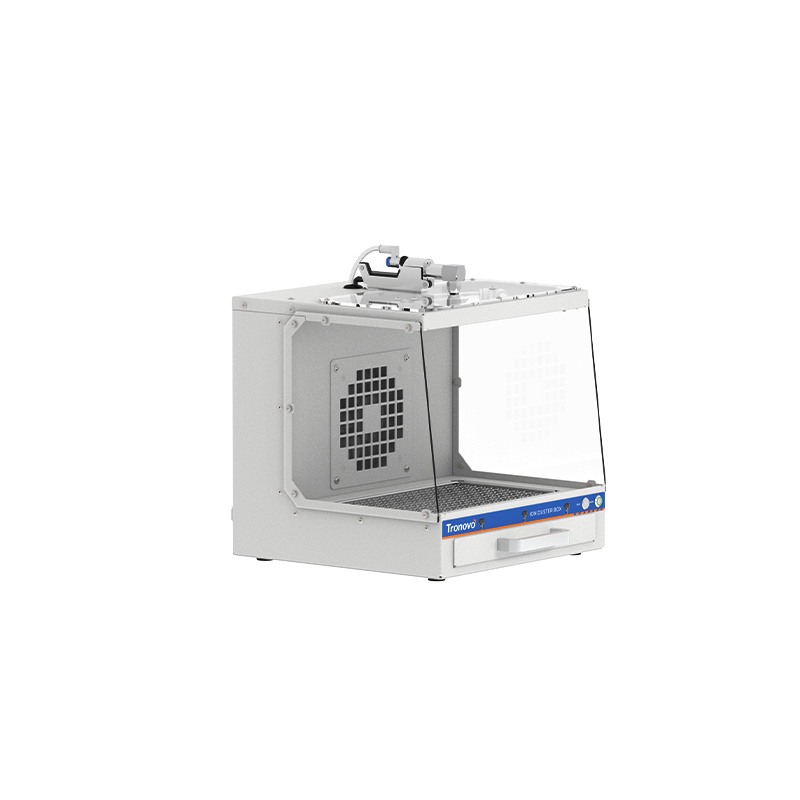

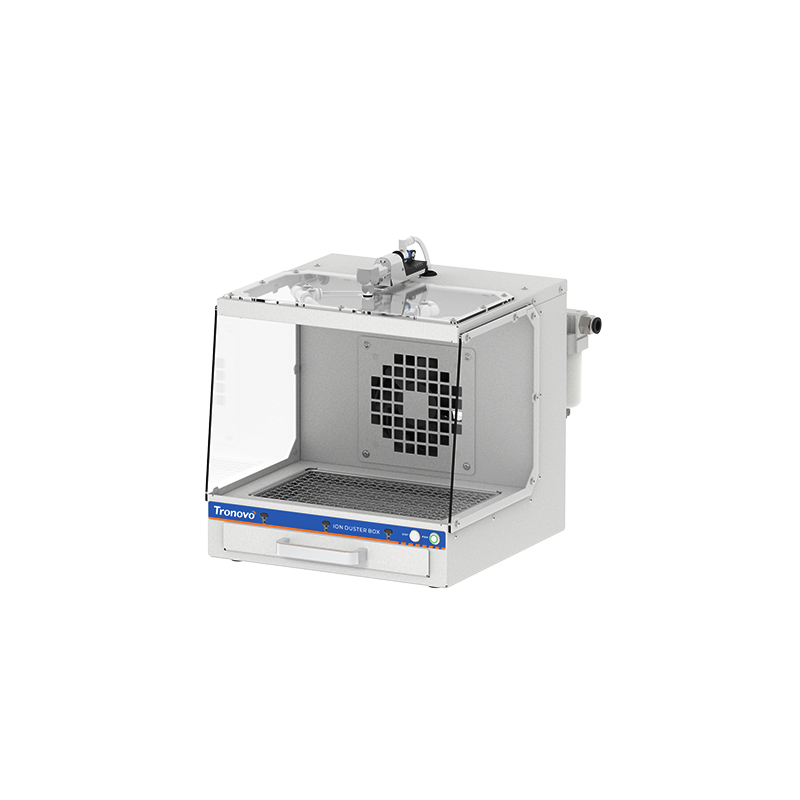

Single-nozzle ion dust box

ED431 Type

A dust box combines the functions of de-static, dust removal and dust collection. It is suitable for workpieces of various sizes such as electronic parts, lenses, smart phones, lampshades, cosmetic cases, and parts of home appliances. The dust box effectively removes static electricity and dust build-up from electrical equipment and resin-moulded products, and prevents dust from re-adhering. The ion blow and air blow are constructed independently of each other, and this design improves the efficiency of static and dust removal. These dust boxes are easy to maintain and very simple to use: just switch them on. Choose the model that best meets your needs from our wide range of products.

Product Features:
• Adjustable Ion Balance and Frequency, Pulsed AC Controller (Supported on Higher Models Only)
• 2 auxiliary air ports and support angle adjustment
• Built-in air curtain to effectively isolate dust and contaminants
• 3 photoelectric sensors, light curtain sensing precision blind reduction
• Multiple function modes to choose from
• Standard IO interface, support PLC automation control

Dust Detection Lamp

Due to the dust floating in the air and static electricity on the surface of the product, the dust is difficult to find and get rid of，The dust detection lamp emits a specific wavelength of light onto the product surface. If there are still residual dust particles on the surface of the product, these particles will show up in the light, creating a clear image of the dust. This intuitive monitoring allows the operator to quickly detect and dispose of residual dust, ensuring the ultimate cleanliness of the product.

Air Curtain - Vertical Dimension Dust Interception

Air curtain, as the name suggests, is a barrier formed by high-speed airflow inside the electrostatic precipitator. This invisible ‘air curtain’, like a loyal guard, will be outside the air in the dust, particles and other pollutants in the effective isolation of the work area outside. In the product handling process, the air curtain can not only effectively prevent the intrusion of external dust, but also prevent dust from flying back into the workshop and falling back onto the product.

Light curtain sensing

In modern industrial production, dust extraction chambers are one of the key pieces of equipment that are essential for maintaining the cleanliness of the production environment, protecting the health of the employees and ensuring the quality of the products. As technology advances, the design of dust extraction chambers is becoming increasingly intelligent, with light curtain sensing systems being a typical example. Three sensors work together to create a horizontal light curtain, which not only helps users to reduce the blind spot, but even if one of the sensors fails, the other two will still work, greatly reducing maintenance and standby costs.

Multiple operating modes

● Dust Detection Lamp
  Normally Open, Normally Closed, Sensing, Timing
● dusting fan
   Normal rotation, sensing, timing
● Drape
   Normally closed, sensing, timed
● Ion nozzle
   Induction, Timing

IO control

● start-stop control
Automatic start and stop of equipment through intelligent judgement of operating requirements and working conditions.
● self-diagnosis of malfunction
Automatically detects, identifies and reports the specific information or code of the fault, thus helping users or maintenance personnel to quickly locate the problem, reducing troubleshooting time and improving maintenance efficiency.

Ionic equilibrium ≤15V

The ion distribution is uniform and a stable ion field can be maintained, making its equilibrium voltage≤15V。
Ion balance is an indicator that evaluates how close to 0V the voltage carried by an object is after electrostatic discharge, and how long it can be maintained around 0V. The closer it is to 0V, the more qualified it is to be evaluated as an ‘excellent electrostatic eliminator’.

Deactivation speed ≤1.5s

The decay time of positive and negative charges is strictly controlled within 1 second, such a short decay time reflects the technological advancement of the electrostatic precipitator and further enhances its dust removal efficiency. Electrostatic dissipation speed is an index to evaluate the speed of eliminating the static electricity carried by the object, usually through the time needed to evaluate the voltage from the original to 1/10.

Pull-out dust collection box

The sealed bottom of the dust collection box is designed to hold water to prevent dust from floating around. When the dust collection box is full of dust, users only need to gently pull it out, can be easily removed for cleaning or replacement, without complex disassembly, greatly saving the maintenance time and energy. At the same time, this design also effectively avoids the secondary pollution that may occur when replacing the dust collection box, ensuring the hygiene and safety of the entire dust removal process.

H.V High voltage indication

Advanced high voltage indication function is integrated to provide users with intuitive and accurate means of safety monitoring. A red light indicates a high voltage abnormality, reminding the user to check the status of the ionisation needle in a timely manner.

Controllable Airflow Control Valve

The ion nozzle of the dust extraction box is equipped with a throttle valve. It realises the fine regulation of the ion jet airflow. By adjusting the throttle valve, the user can easily control the flow and pressure of the airflow to ensure that the ion nozzle works in the best condition, thus achieving a finer and more efficient dust removal effect. At the same time, the application of the throttle valve also significantly reduces air consumption, in line with the requirements of modern industry for green, environmentally friendly production.

型号	ED431
Sizes	310X305X300mm
Number of nozzles	1PC
De-electrification performance	士10V/≤0.5S
Ionisation technology	HF AC
Spraying method	Puff out
Dust Detection Lamp	Dust on the workpiece is also clearly visible.
Assisted blowing	Separation of blowing ions and blowing air improves de-static efficiency and dust removal efficiency.
Air curtain function	The airflow creates a protective door to keep out dust.
Operating mode	Time setting: continuous, timer[2、5、10s、15s]
Dust discharge	∅76 Duct flanges for vacuum bags or hoovers
Main material	Stainless steels
I0 interface	PLC、Input and output signals
Product power	Single AC 100~240V(50Hz/60Hz)50W
Warranty	One-year warranty
