Space Static Eliminator

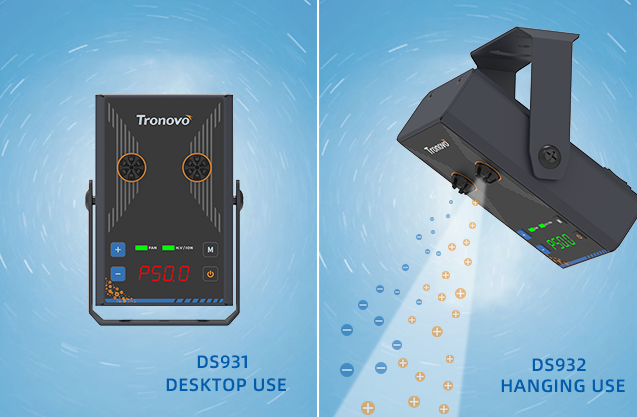

DS931 DS932

Small space static eliminator

Effectively eliminate local static electricity,Pulse rate and ion balance control allow for effective calibration and adjustment of workstation ionizers,To provide optimal ion balance and output。

Features:
• Wide area static elimination effective range

• Ion equilibrium is controlled manually or by feedback

• Cute tabletop type

• Realization of the ideal production line

•  No conductive bracelet required

• Excellent ionic balance

• No leakage and no failure

• Simple maintenance

• Used in dusty environments

• Can be used inside the machine

画板 10

Ion balance +100V

Effectively removes electrostatic charges over a small area
Effective ionization range: 500mm
Frequency and ion balance are adjustable for calibration and optimal performance

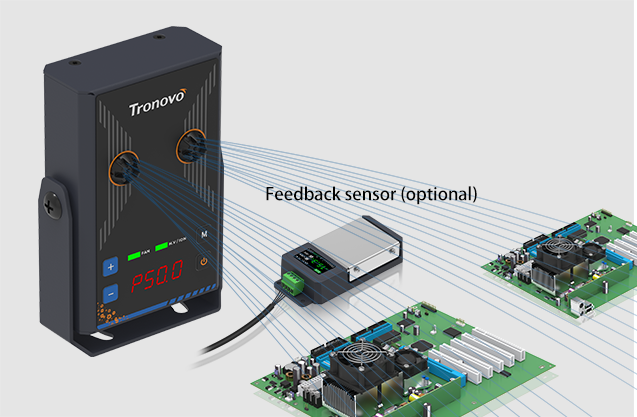

Optional feedback sensor for automatic performance adjustment
* Install a feedback sensor to measure the peak voltage at 30cm in front of the ionizer

TS6401 series

Aiyong has developed a new type of ionizer "space windless static eliminator".

画板 11
画板 3

Unique advantages

Windless Electrolysis Technology: Neutralizes static electricity on the desktop and space without the need for air flow, significantly reducing foreign body defects

Space optimization: The compact body saves space, eliminates static electricity in a wide area, and replaces traditional wrist straps and other protective measures

Comprehensive electrostatic neutralization, electrostatic precipitation removal, one step in place

The static electricity of floating dust and sedimentary dust takes into account environmental cleanliness and production safety, and improves the level of anti-static protection

Deenergizing speed: ≤15s@20cm
Balance  Ion Balance: ± 100v Balance
Removal distance: ≤700mm
Number of discharge needles: 2 ion needles

画板 8
画板 7

Glove box electrostatic solution

Static electricity is generated inside the glove box, so some powders are extremely delicate and sensitive to dry or pure air (< 1 ppm H2O) and can often be difficult to weigh, synthesize, experiment, characterize, or handle

ModelTS6401TS6401P
Operating voltage24VDC±5%
Rated powerApprox. 4.5W
Corona wayPulsed DC method
The speed at which the power is dissipated<15 seconds
Electrode materialTungsten
Discharge frequency1~30Hz, adjustable
Number of discharge pins 2 roots
Discharge needle lifeApprox. 24,000 hours (needle exchangeable)
Electrical removal performance lifeApprox. 50.000/hour
The amount of ozone produced0.05 ppm or less (center, 200 mm in front of the distance)
Communication interfaceRS485 I/O (Remote Start/Stop/Alarm Signal Output)
Ionic balance± 100V,* stable to ±35V with optional feedback sensor

Ion balance control mode

Manual adjustment or automatic control by feedback sensors
Fuselage shellPaint the steel plate
Explosion-proof/non-explosion-proof distinctionDo not use in explosion-proof areas for non-explosion-proof situations
Volume/weight127x140x63.5mm (including bracket) / body about 0.6Kg
Explosion-proof/non-explosion-proof distinction

Non-explosion-proof Do not use in explosion-proof areas

WarrantyOne-year limited warranty
Operating environment+5°C to +45°C, humidity: 35~70%RH (non-condensing)



drawing board 9

There are currently no application cases available

There are currently no films available
