Dust Removal System

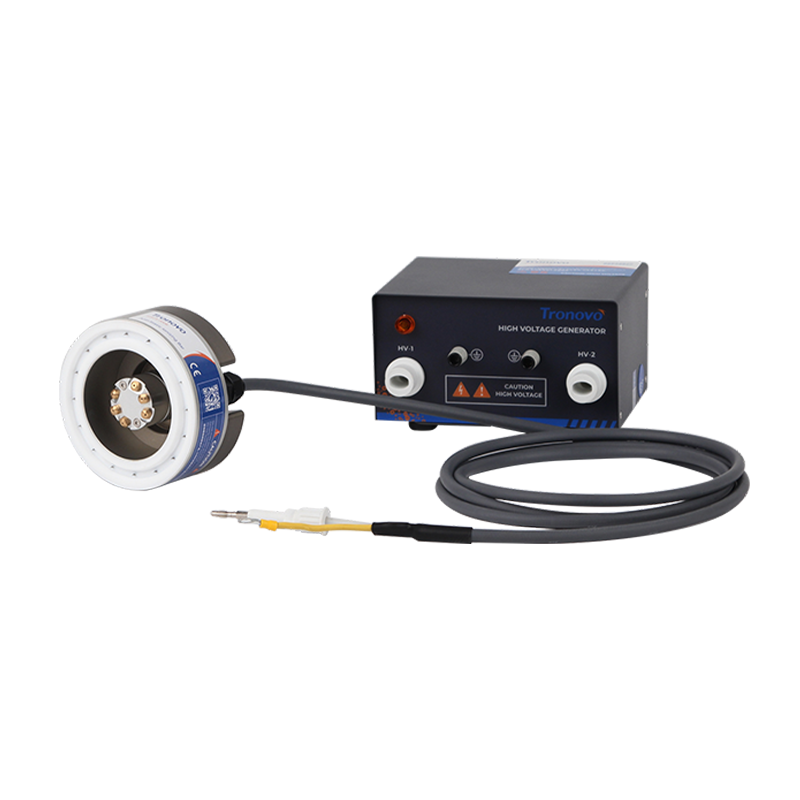

Rotary nozzle static eliminator

DN532 Type

It consists of a rotating six-head nozzle and a unique circular static eliminator. The compressed air drives the nozzle to rotate at a high speed of up to 60 revolutions per second, and the resulting pulsed ionized air flow sweeps across the product surface up to 240 times per second, blowing dust and impurities off the product surface from different angles, especially for irregular products with complex surface shapes or grooves. The patented centrifugal control drives the nozzle to rotate at high speeds, producing a 360° thrust pulsating airflow that eliminates static electricity and delivers excellent dust collection.

Features:
• Innovative cyclone cleaning system for non-contact 360-degree surface for powerful dust removal
• Proprietary performance that causes air pulsation by purging by rotating the cleaning nozzle
• Deep cleaning to effectively clean surfaces with complex shapes and gaps
• Electrostatic neutralization, round ionizer is used to remove electrostatic charge• Extended coverage, which can be combined to clean large objects• Diverse installation methods, easy to integrate with transmission lines, robot arms, and dust collection systems

ModelDN532-112mm
Ionic voltage5.6~6.0kV
Discharge structureResistive coupling
The speed at which the power is dissipated≤1.5S(Distance 100mm)
Ionic balance|士50V(AVE)Distance 100mm
Range100600mm
Disc size112mm
Air pressure0.1~0.6Mpa
Connecting tubes8mmX1
Electrode material

Wolfram(W)-Tungsten

High-voltage cables2.5m (custom length available)
