Dust Removal System

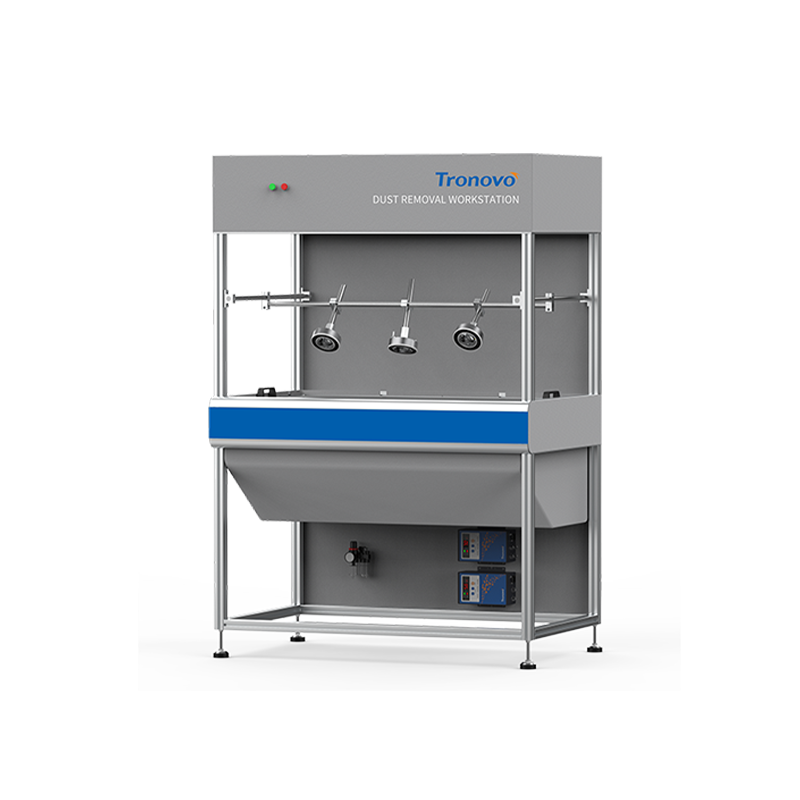

Electrostatic precipitator workstation

TR8276-TR8277

The electrostatic precipitator consists of a rack, a clean air valve or ionizing air bar, a dust hood, an ionizer, a sensor, or a foot switch. Whether in the purification workshop or in the ordinary factory area, the product workpiece can be automatically cleaned, and the efficiency is much higher than that of ordinary manual cleaning. The working width and suction direction will be customized according to the customer's requirements, and the number of air valves depends on the size and shape of the workpiece to be cleaned.

Product modelTR8276TR8277
Ion typeIon nozzles*21 ionic air bar*1
Ionic balance≤|±50V|(AVE)≤|±30V|(AVE)
Ionization techniquesAC ionization
Air input0.1〜0.6MPa
Action time0-30S free setting
Sensor methodPhotoelectric sensors
Input voltageCommunication 220V,50Hz
Product featuresAir pressure control, time setting, air filtration
Body MaterialStainless steel/aluminum profile bracket
Operating environment0~50°C, 30~70%RH (non-condensing)
Product power20W
size710(L)X505(W)X1560mm(H)
WarrantyOne-year warranty
