Nozzle type static eliminator

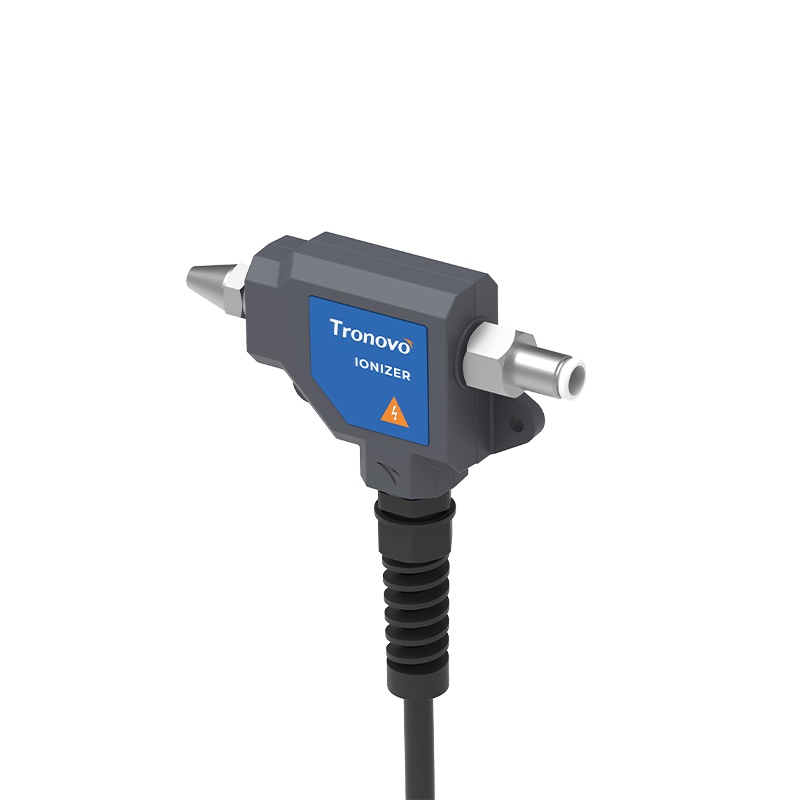

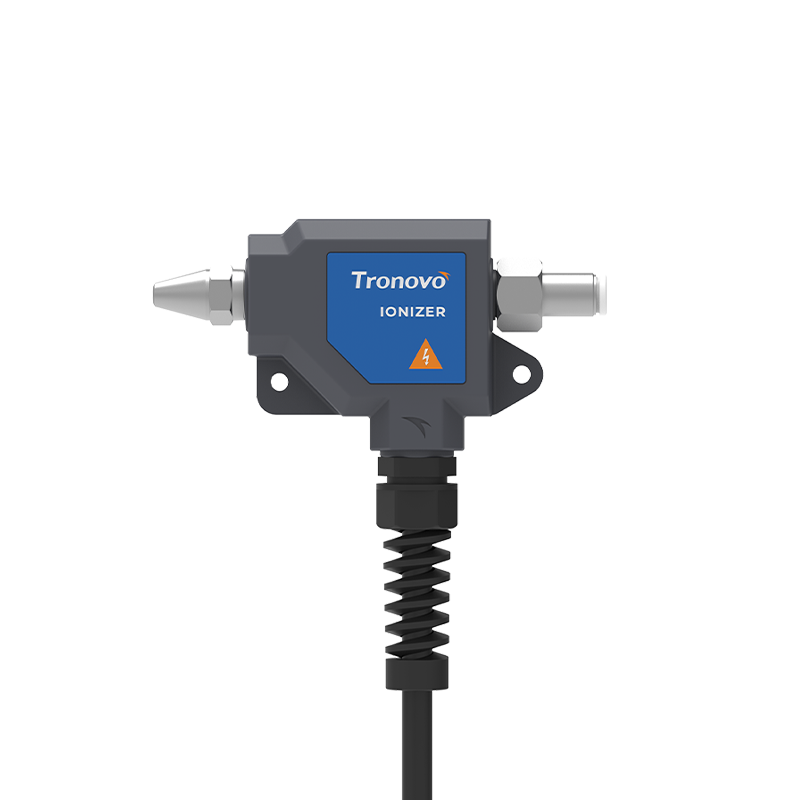

Nozzle type static eliminator (lower air intake)

DN53B Type

Ionic nozzle technology is ideal for static elimination, contaminant and dust removal of three-dimensional parts prior to assembly, packaging, painting, or finishing. Compared to traditional compressed air cleaning methods, ionic air nozzles not only effectively eliminate electrostatic charges, but also completely blow away surface contaminants. Neutral surfaces treated with ion nozzles will no longer re-adsorb airborne contaminants from the manufacturing process, ensuring long-lasting cleanliness and quality.

Features:
• Adjustable ion balance and frequency;
• Small size and easy installation;
• Efficient electrostatic and dust removal;
• Good durability and reliability;
• Longer service life;
• Easy to maintain;
• Support IO control;

ModelDN53BDN53T
The speed at which the power is dissipated

1.0S(Distance 50mm)

Ionic balance|土50V|(AVE)Distance 50mm
Air pressure0.1~0.7Mpa
Intake directionGo downBackward
Connecting tubes8mm
Electrode material钨(W)-Tungsten
High-voltage cables2.5m (shielded coaxial safety cable, customizable)
Working environment+5°C to +45°C, Humidity: 35~70%RH (non-condensing)
Warranty1 year limited warranty
Suitable ion power sources include:
TP5301Light
TP5501CADigital display, ion balance adjustment, gas and electricity simultaneous control


There are currently no application cases available

There are currently no films available

Catalog Download
