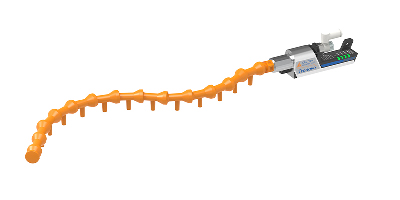

Bamboo Gimbal nozzle

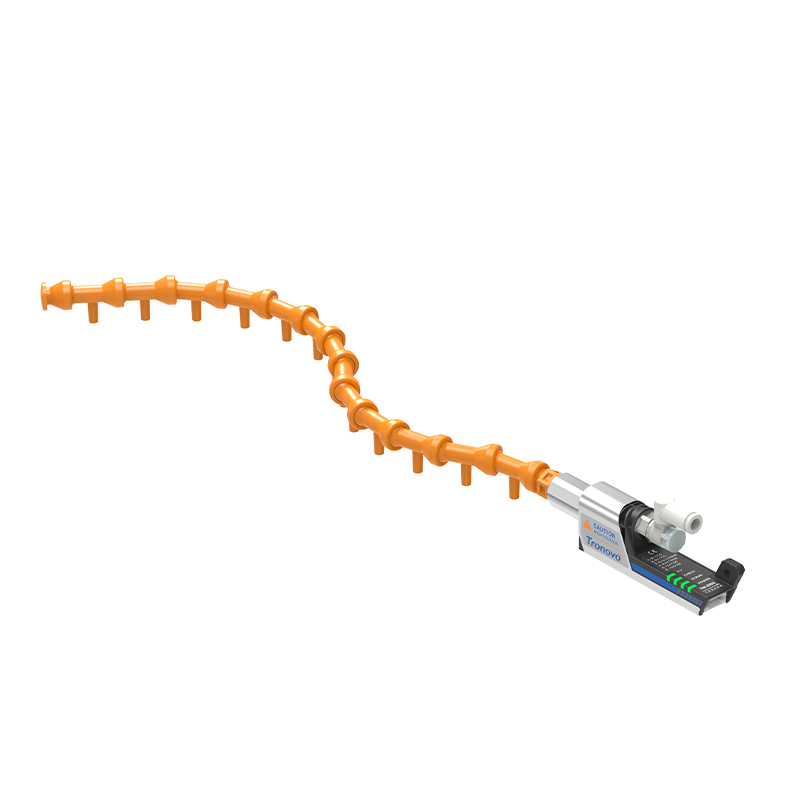

DN251-SN19 Type

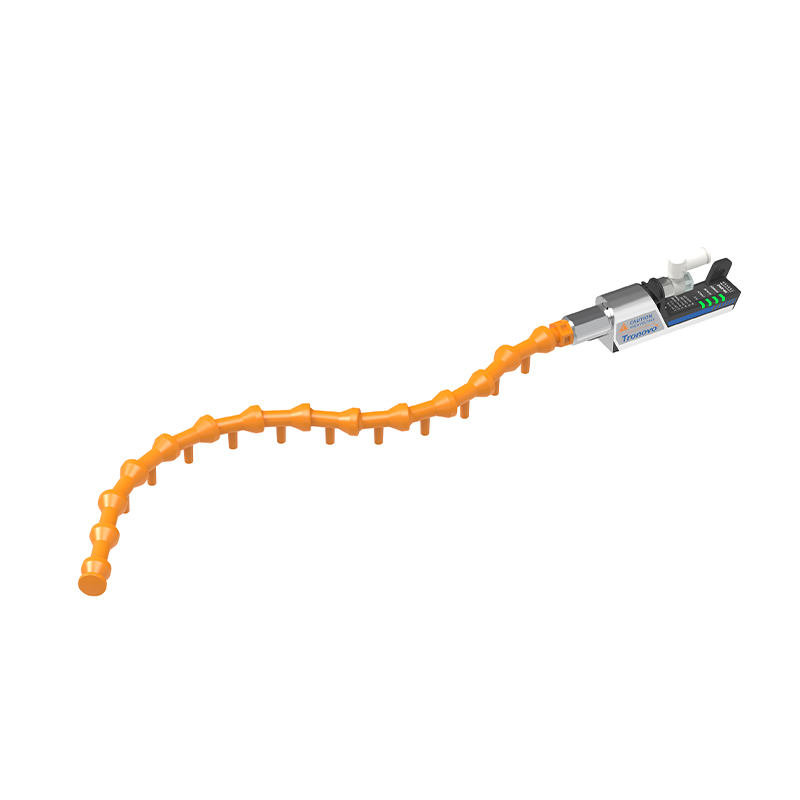

DN252-SN19 Type

The ultra-small design aims at the workpiece in tight locations to remove dust and contaminants while eliminating static electricity. There are a wide variety of nozzles, so you can choose according to your application. By using a high-frequency AC method, an extremely stable ion balance is achieved. Since the ion balance is not affected by the supply air pressure and the installation distance, there is no need to perform cumbersome adjustments after installation.

Features:
• High-frequency AC ionization technology, extremely stable ion balance
• Ultra-small design for easy assembly inside the device
• There are a wide variety of nozzles, and you can choose different types according to the application
• Signal input and output control functions, using IO communication to achieve automatic connection
• Reassuring safety design, 24V DC power supply, no need for high-voltage cables
• Equipped with running status indicator, real-time display of operating status and ion abnormality
• Easy to maintain, the ion needle can be easily removed and cleaned

The LED indicator visually shows the working status

It has an "inspection function" that automatically prompts the cleaning of the ion needle, and various functions can be checked by LED indicators, and the operating status of the static eliminator can be monitored externally by using the output of various functions.

High-frequency AC ionization technology

High level of static elimination, low voltage 2500V; Ion generation frequency: 70,000 times/second;
Extremely stable ion balance (no adjustment required)
Ions can be transported through pipes
The power is dissipated quickly
Can be used up close
High level of security

Positive dissipation time measurement chart:

The time required to reduce the charge of a live object with +1000V to +100V.

Negative dissipation time measurement plot:

The time required to reduce the charge of a live object with -1000V to -100V.

Stable ionic equilibrium

When positive and negative ions are continuously irradiated, the electrostatic voltage of the target is close to 0 V.

MODEL NUMBER	Body style	Nozzle Accessories	Material	ILLUSTRATE

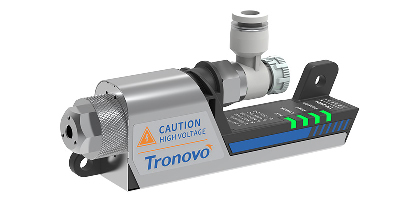

Diffusion nozzles	MODEL:DN251-SN01	MODEL:TN-SN01	SUS 304	Straight lines diffuse the air

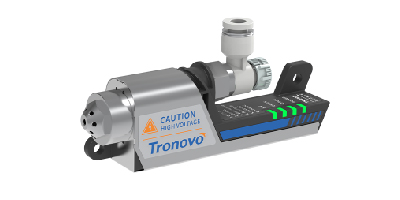

Shower-type nozzles	MODEL:DN251-SN02	MODEL:TN-SN02	SUS 304	45 degree spray angle for wider air diffusion

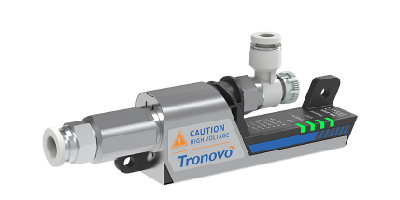

Connected hose nozzles	MODEL:DN251-SN03	MODEL:TN-SN03	Metal	Ion nozzle body and conduit connection nozzle can be connected to any bend of the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, need to purchase additional TN-SN10 adapter to use.

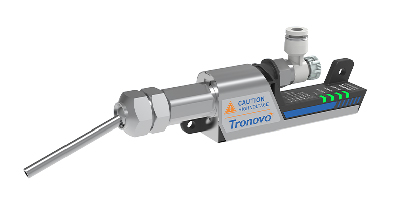

Adjustable point nozzle	MODEL:DN251-SN04	MODEL:TN-SN04	SUS 304	Can be in the range of 60 degrees, arbitrary adjustment of the spray angle to use first adjust the nozzle after the fixed nut, need to purchase additional TN-SN10 adapter to use!

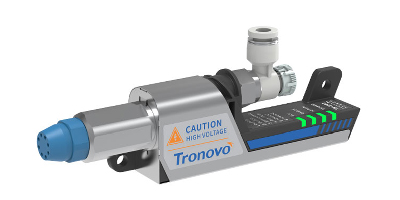

Round-nosed nozzles	MODEL:DN251-SN05	MODEL:TN-SN05	Plastics	Powerful straight-line air can be injected from a small hole at the front end, with the addition of the TN-SN10 adapter.

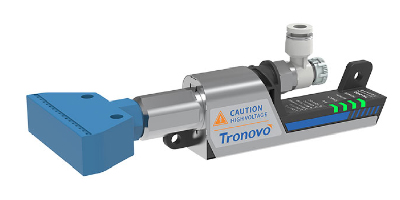

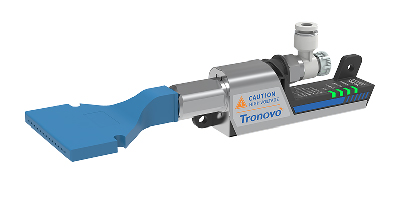

Flat-head nozzles	MODEL:DN251-SN06	MODEL:TN-SN06	Plastics	Wide range of uniform electrostatic dust removal, requires additional TN-SN10 adapter for use
90-degree nozzle	MODEL:DN251-SN07	MODEL:TN-SN07	Plastics	The angle of the air jet is perpendicular to the threaded surface, making it ideal for space-constrained locations，Requires additional TN-SN10 adapter to use

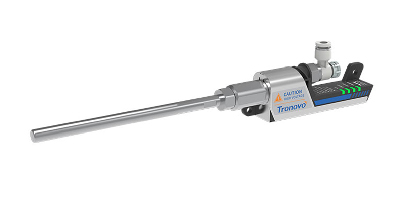

Stick type side blow nozzle	MODEL:DN251-SN08	MODEL:TN-SN08	SUS 304	De-static effective length 270mm can improve the de-static area suitable for space-restricted places, need to add the purchase of TN-SN10 adapter use

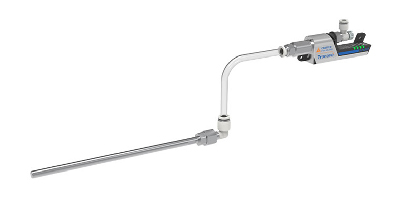

Rod type side blow nozzle + bendable hose	MODEL:DN251-SN09	MODEL:TN-SN09	SUS 304	De-static effective length of 270mm, the rod-type side blowing nozzle edge to the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, the length of the conduit has a greater impact on the time to remove static electricity, please follow the site to do the choice of the appropriate, need to add the purchase of the TN-SN10 adapter to use!
Nozzle adapters		MODEL:TN-SN10	SUS 304	RP1/4 (female) to M16×1.5 (male) is suitable between the nozzle and the thread of the static eliminator.

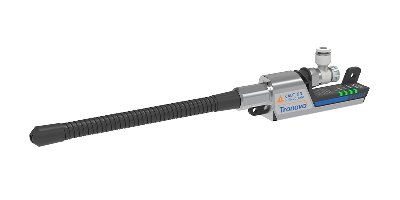

Bamboo gimbal nozzle	MODEL:DN251-SN19	MODEL:TN-SN19	Shuo material	It can be installed on DN251 or DN252, the default length of the product is 40cm, and there are 13 nozzles in total. Customers can shorten or extend as needed.
Universal nozzle	MODEL:DN251-SN20	MODEL:TN-SN20	Metal	Automatic ion balancing system, LED display maintenance alarm function I/0 wiring signal (support PLC control), recommended by the automation industry
Rotate the fixing bracket		MODEL:TN-RB01	SUS 304	The ionic nozzle body is fixed and installed

Model	DN251-SN19	DN252-SN19
Operating voltage	≤1.0S(Distance 50mm)
Current consumption	≤\|土50V\|(AVE)Distance 50mm
Dissipation time	0.1~0.7Mpa
Ionic balance	≤\|士10V(AVE)
Supply air pressure	0.15~0.7MPa
Supply air temperature	0 to +50°C
Connecting tubes	The outer diameter ∅ 6, the inner diameter ∅ 4
Ozone concentration	<0.03ppm @30cm
I0 interface	-	have
Operating environment	0~+55°C (note no condensation), 35~65%RH
Volume/weight	33X110X20.8mm/ body approx. 120g

There are currently no application cases available

There are currently no films available
