Shock wave nozzle static eliminator

DN532-112-RN40

Designed for the dual needs of industrial dust removal and static control, it combines high-speed rotating shockwave nozzles with AC ionization technology. Driven by dry compressed air, it achieves dynamic airflow diffusion and static neutralization, precisely removing dust and static charges from surfaces. The high-speed rotating nozzle expands the cleaning radius to fit complex curved surfaces and hidden areas. Supports robotic arms and is compatible with 7-axis robots.

Product Features：
• Innovative cyclone cleaning system, non-contact 360 degree surface powerful dust removal

• Proprietary performance with air pulsation caused by blowing through the rotating cleaning nozzle

• Deep cleaning, effective on surfaces with complex shapes and crevices.

• Static neutralization, circular ion generator for removing static charges

• Greater coverage, can be used in combination to clean large objects with a large form factor.

• Versatile mounting options for easy integration into conveyor lines, robot arms, and dust collection systems.

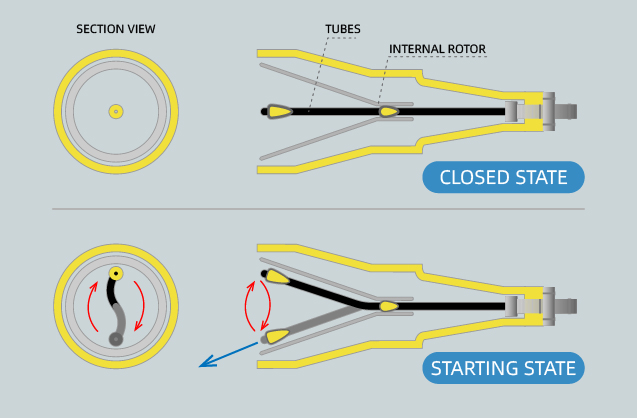

Shockwave Nozzle Static Eliminator Jets

When ejected, the pressure causes the tube to move and begin to rotate along the inner wall of the inner rotor. In this state, the jet sprays intermittently
The wave generated by the rotation of the tube produces an air collision force equal to the number of rotations.
The inner rotor (white cap) is the part that rotates in synchronization with the nozzle tube. As a result, frictional resistance during rotation is reduced. Dust generation and wear are reduced.

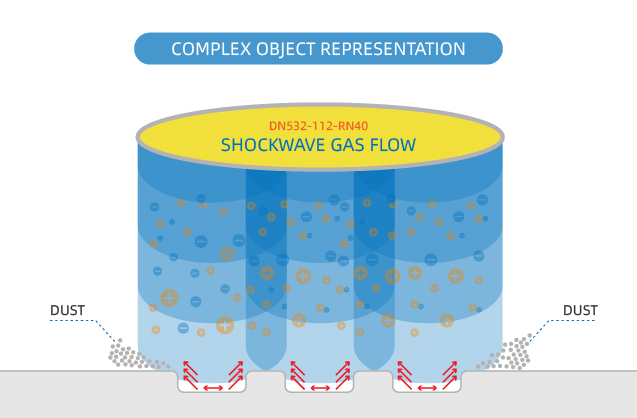

Dedusting method for complex shapes

Since the flow of normal air is constant, it pressurizes the air at the entrance of the groove and does not give good results. The wave motion of the Shockwave Nozzle Static Eliminator does not create a pressure wall at the entrance to the recess, and the air can effectively penetrate deeper into the recess.

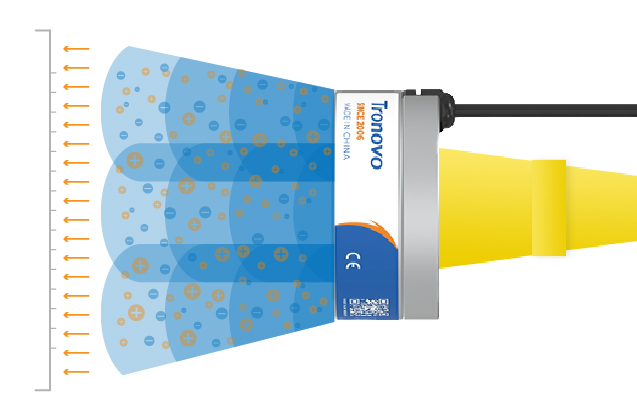

Highly efficient dust removal range

When used at the same pressure, shockwave nozzle static eliminators can be treated extensively by the high effect of rotating wave nozzles.

Dust removal performance

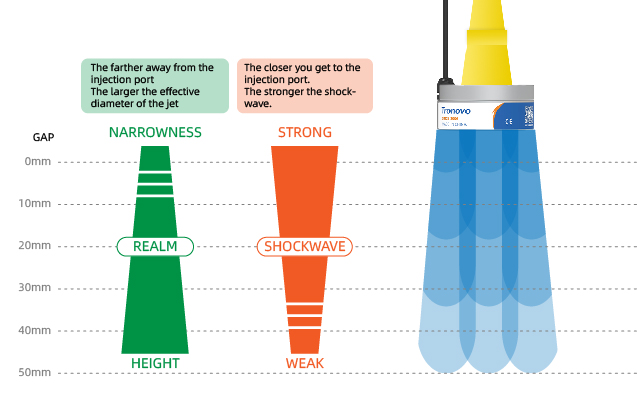

Distance vs. Fluctuation Intensity Distance vs. Effective Diameter of Jet
