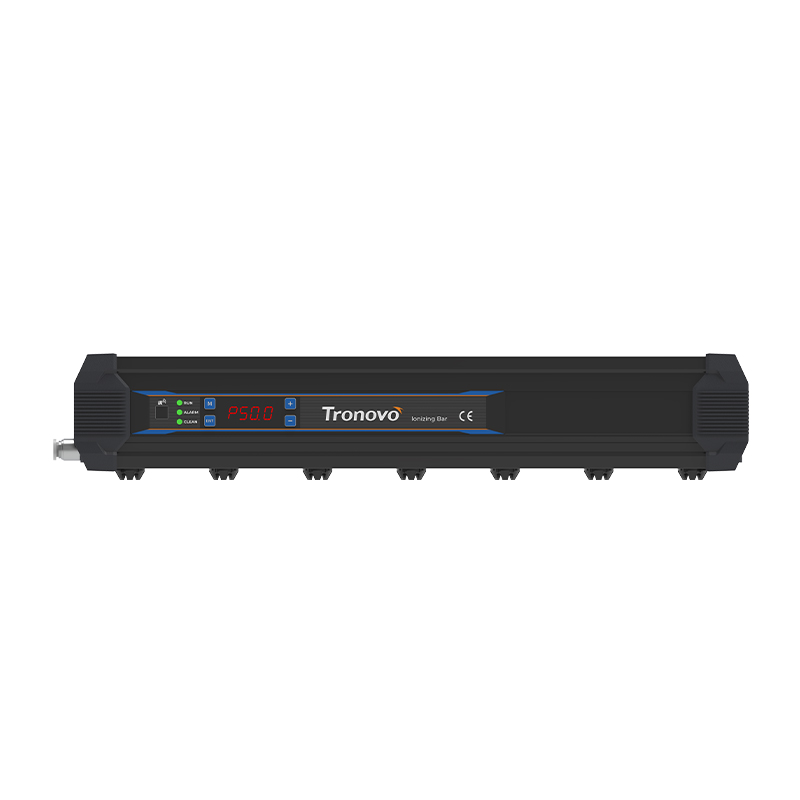

High-frequency AC ionizer realizes miniaturization and high efficiency, adopts positive and negative high voltage alternating technology, greatly improves ion generation and eliminates static electricity more evenly. Compared with the traditional AC method, the static elimination effect is stronger, applicable to a variety of harsh environments. Support customized wind rod length, flexible to adapt to different equipment needs. Highly efficient static elimination, stable performance, no static residue, is the ideal choice for precision electronics, semiconductor, medical equipment and other industries.
Product features:
• Pulse AC ion bar, ion utilization rate is higher, static elimination is more efficient
• Adjustable ion balance (within ±35V), in line with the electronics industry ESD standards
• Multi-level frequency adjustable, intelligent adaptation to different distances of static elimination needs
• Working status indicator, high voltage abnormal red light alarm, safer operation.

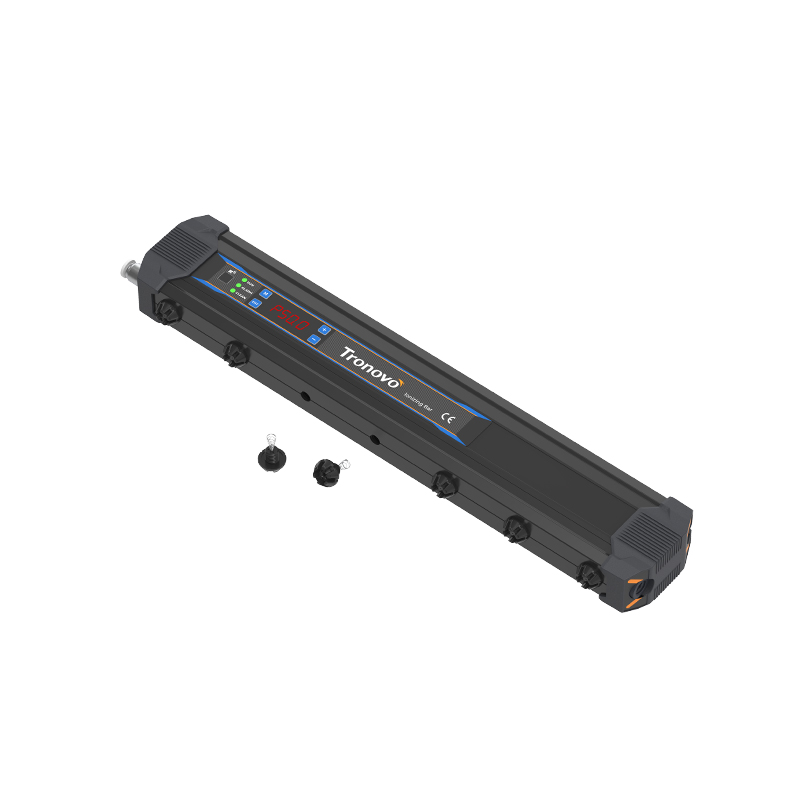

• Replaceable air nozzle ion needle, reduce maintenance costs, extend equipment life
• Cleaning alarm function, expiration automatic reminder, to ensure stable de-static performance
• Support PLC control, compatible with IO signals, abnormal alarm output, easy automation integration.
 |
Super Static EliminatorThe new pulse AC ionizer adopts advanced technology, the ion balance is adjustable (±35V), eliminating static electricity more efficiently. Multi-level frequency intelligent adjustment, adapt to different distance requirements, to ensure stable de-static. Replaceable ion needle design, low maintenance cost; cleaning alarm + PLC control, automation integration is more convenient. |
Discharge of air + large amount of ionsAdopt high-frequency pulse technology, releasing millions of ions per second, increasing the speed of de-electricity by 50%! ±35V precision ion balance, perfectly adapted to the semiconductor, FPD panel and other harsh environments. Intelligent frequency adjustment, covering lamination, leadframe and other micron-level process requirements. Visualized operation panel, real-time alarm for abnormality, maintenance cost reduced by 30%. |
 |
 |
Easy to cleanInnovative flat design, discharge needle and air blowing outlet integrated groove structure, only a light brush can complete the product cleaning, maintenance efficiency increased by 50%! Air blowing outlet cleaning is synchronized to ensure the stable output of airflow, extending the life of the equipment by 3 times! |

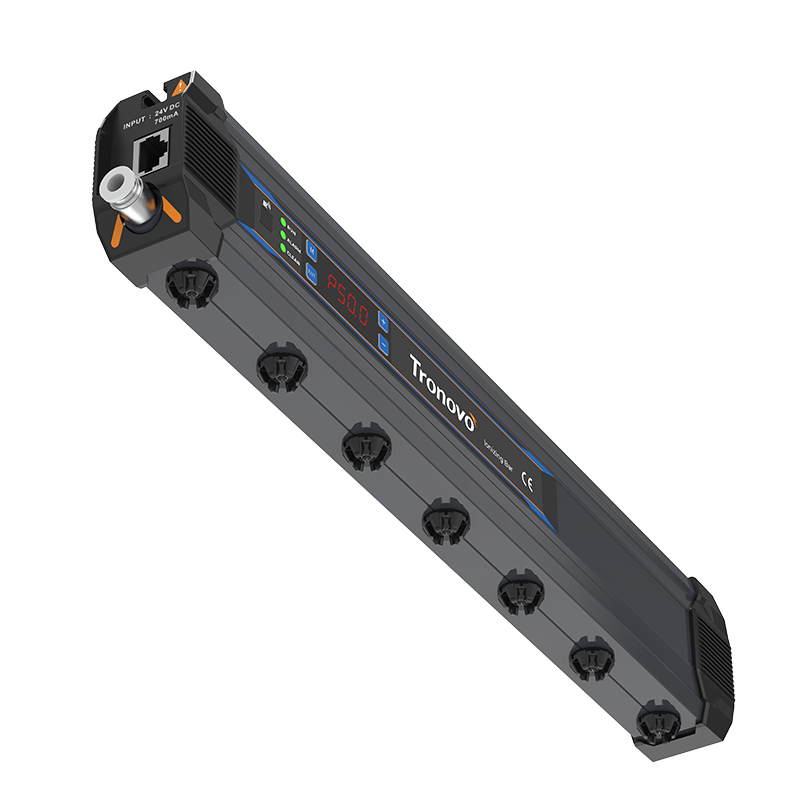

Intuitive digital display and easy setupEquipped with a high-definition display, real-time monitoring of the status of the equipment, support for frequency adjustment and ion balance precision settings (± 35V). It can be safely operated by the mainframe button or infrared remote control, and the menu setting is intuitive and convenient. Φ6mm air supply connector ensures stable airflow, and with the replaceable ionizing needle design, the maintenance is more hassle-free. |
 |
 |
Special nozzle structure long-lasting anti-dirt + air barrierInnovative air-electricity separation structure, equipped with clean air barrier ionization needle, through 360 ° circular airflow to isolate dust, performance attenuation reduced by 70%! Special anti-fouling nozzle design reduces contaminant buildup and extends maintenance intervals by 3 times. For precision electronics, semiconductor production to provide a durable and stable static elimination program. |
| Model | DB522 | DB522H | DB527P | DB522P | DB525P | ||||||||
| Model | Economy | High Power | Networked | Normal | High Ion Balance | ||||||||

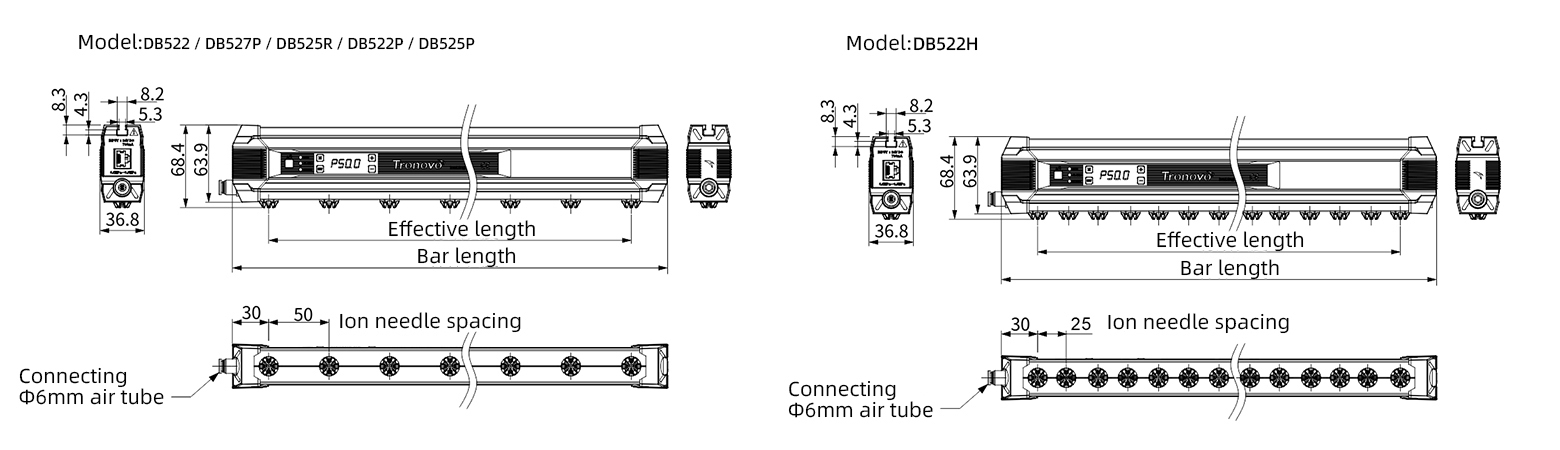

| Needle pitch | 50mm | 25mm | 50mm | 50mm | 50mm | ||||||||
| Frequency setting | 1to68 Hz | 1to68 Hz | 1to100Hz | 1to68 Hz | 1to100 Hz | ||||||||
| Control Input/Output | - | Yes | - | Yes | Yes | ||||||||
| Networking | - | - | RS-485 | - | - | ||||||||
| Low voltage 24 V wiring | yes | yes | yes | yes | yes | ||||||||
| Operation indication | yes | yes | yes | yes | yes | ||||||||
| Status alarms | yes | yes | yes | yes | yes | ||||||||
| Clean Alarm | yes | yes | yes | yes | yes | ||||||||
| Alarm function | yes | yes | yes | yes | yes | ||||||||
| Remote control | yes | yes | yes | yes | yes | ||||||||
| Authentication | CE | CE | yes | CE | CE | ||||||||
| Model | DB522 | DB527P | DB525R | DB522P | DB525P |
| lon generation method | Corona discharge method | ||||
| Discharge method | Pulse AC mode/±4000~±7000V | ||||
| lon balance control | Remote control adjustment / panel key adjustment | ||||
| Ion balance | ±50V | ±30V | ±50V | ±50V | ±30V |
| Controlinput/Output | ✘ | ✘ | Passive controlsignal | ||
| Interface | ✘ | ✘ | RS-485 | ✘ | ✘ |
| Alarm indication | StatusAlarm,lonAlarm,Clean Alarm | ||||
| Air connection port | 6mm | ||||
| Air supply pressure | 0.1MPato 0.5 MPa(recommend air pressure 0.2 MPa) | ||||
| Bar length | 360mm→410mm→460mm→510mm→560mm→610mm→2960mm | ||||
| Electrode material | Tungsten | ||||
| Operating voltage | 24VDC (10%), current consumption <700mA. | ||||
| Use of the environment | Temperature: 0 ~ 40 ℃ Humidity: 35 ~ 75% RH | ||||
| Warranty | |||||
