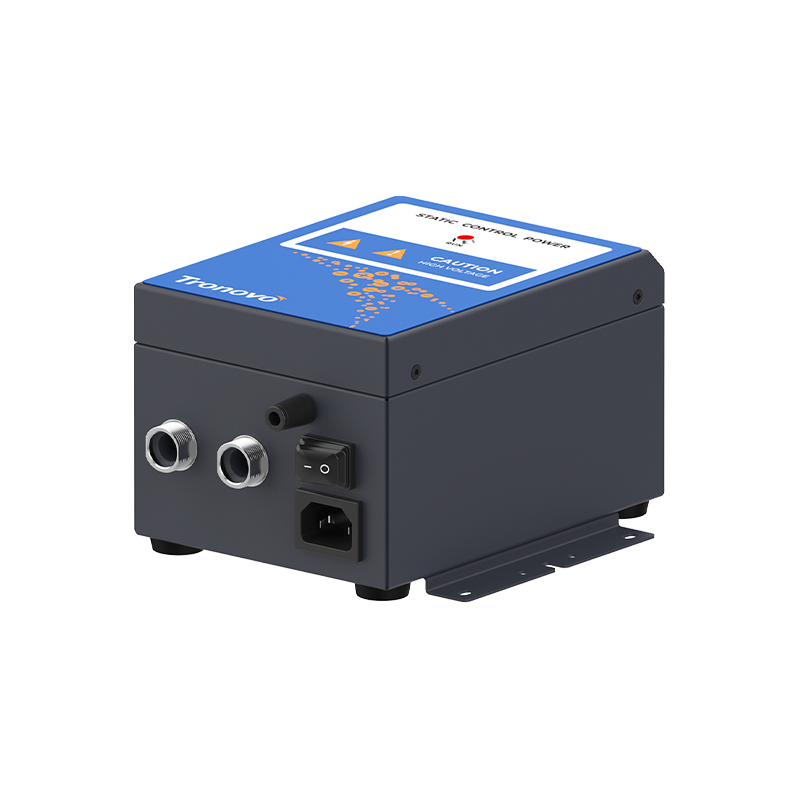

DP712 Series
The ion power supply using the power frequency AC mode has a simple structure and is not prone to failure, which can ensure the stable operation of the production line. The patented connector makes the connection between the ion rod and the power supply very safe, and will not cause heat generation and fire accidents. Simple and proven high-voltage transformers achieve high load capacity as an affordable performance solution for a wide range of applications requiring static elimination, such as printing, coding, packaging, painting, and other industrial applications.
Model | DP711 | ||||||||
Input voltage | 230VAC50/60Hz/customize 110VAC50/60Hz | ||||||||
Input power | Max.35 VA | ||||||||
Output voltage | 4.6kV/5.6kV/7.0kVAC | ||||||||
Output current | <5mA | ||||||||
Output frequency | 50/60Hz | ||||||||
Output connection | 2-way | ||||||||
Protection current | have | ||||||||
Voltage display | Not | ||||||||
Performance tuning | Not | ||||||||
Performance monitoring | Not | ||||||||
Signal control | Not | ||||||||
Use environment | Temperature: 0~50°C Humidity: 35~80%RH | ||||||||
Product dimensions | 185x158.5x105.7mm | ||||||||
Weight | Approximately 2.7 kg | ||||||||
Warranty | One-year limited warranty |
