Ionizing Bar Type

Ultra-small Ionizing Bar

DB51 TypeThe ultra-small square static elimination rod achieves superior performance and safety with its extreme size. The ion rod achieves a high electrostatic elimination efficiency while minimizing its size, significantly surpassing other similar products on the market. The ion rod uses our patented technology of airtight high-voltage plug and flexible coaxial shielded cable to achieve a superior performance to traditional plugs, and has also achieved significant improvements in safety, durability and ease of use, making it ideal for removing static electricity in many narrow scenes.

Features:
• Small cross-section, easy to install in confined spaces
• Inductive coupling technology, no electric shock, to ensure the safety of the operator
• Effectively remove static electricity, can act on a distance of less than 100mm
• Gas-tight high-voltage plug with flexible coaxial shielded cable
• Wind-free static elimination-low maintenance costs
• Use flame retardant PVC environmental protection material
• Easy to install, use removable mounting bolts to install

Extreme Compact-Powerful Performance

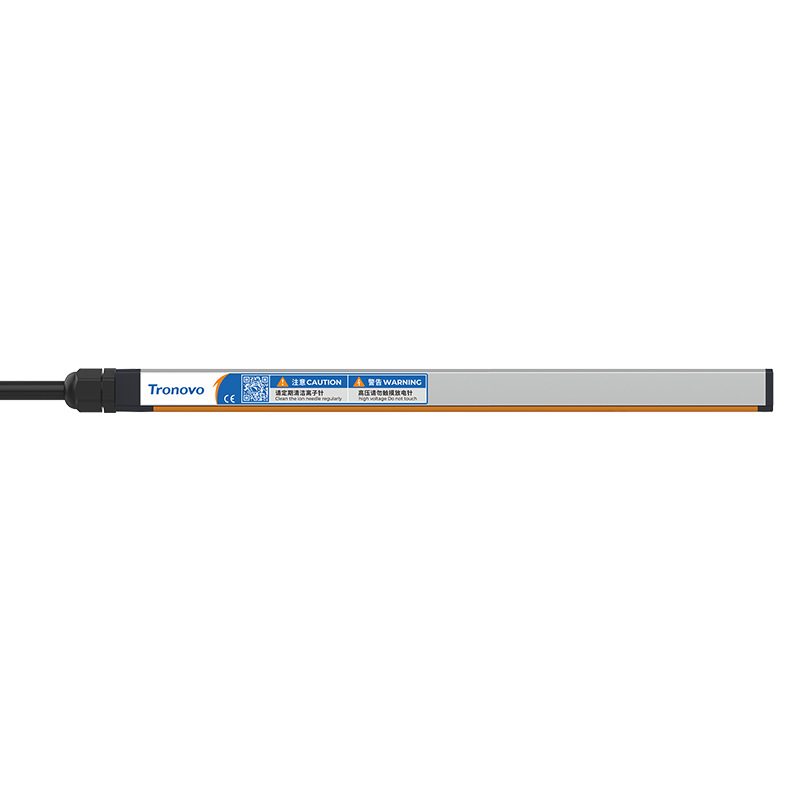

Extremely small square static elimination rod
Extreme Compact-Powerful Performance
Electrostatic removal efficiency> 90%

In addition to static electricity-the effect must be better!

Instantaneous static removal speed, high-speed industrial production, every second counts, 5kV to 0.5kV, only 0.3s.

Compact size-easy to install in small areas

High space utilization
Efficient performance and flexible adjustment
Can quickly and efficiently eliminate static electricity.

Secure Connection

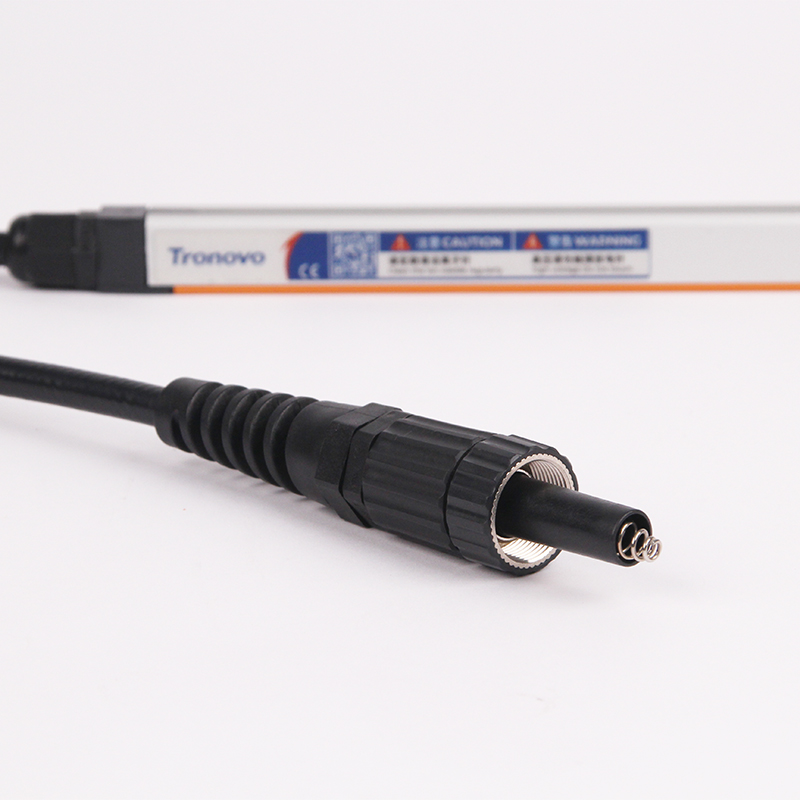

The use of a new type of airtight high-voltage plug cleverly integrates the grounding function, which not only improves the electrical safety performance, but also simplifies the installation steps.

No wind to remove static electricity

Since there is almost no dust diffusion caused by air, it is suitable for static elimination in a dust-free environment.

Small space installation

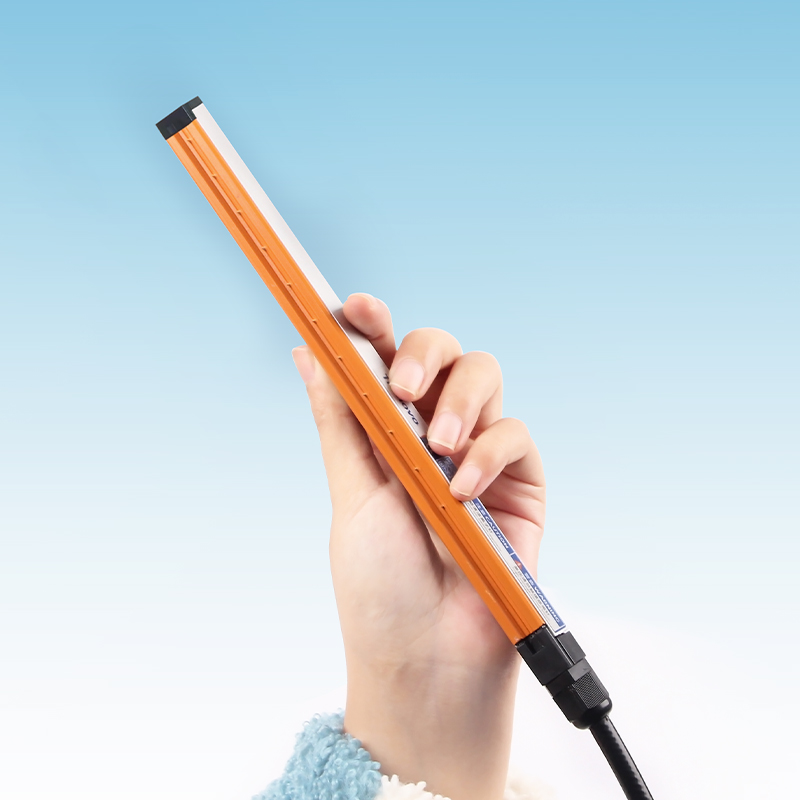

The diameter is only the size of a finger, suitable for installation inside the device, in addition to static performance is stable, can support PLC control.

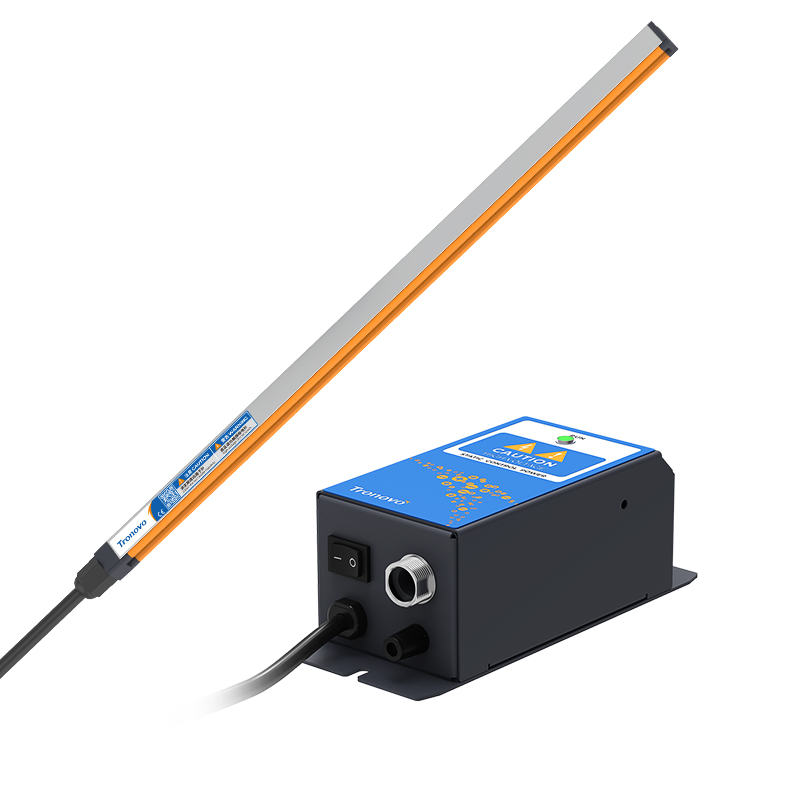

Suitable ion power sources include:

DP511
DP522

ModelDB51
Discharge structureResistive coupling
The speed at which the power is dissipated≤0.3S(distance50mm)

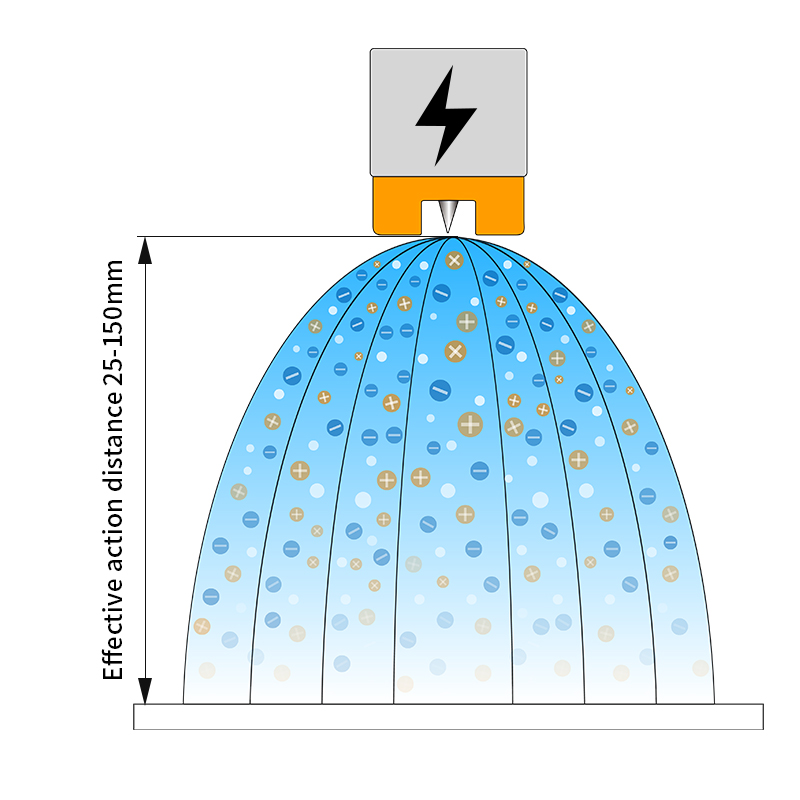

Range25→150mm
Installation distance50→100mm/recommend
The length of the rod body150-1500mm(Can be customized upon request)
Rod materiaAluminium
Electrode materialSS
High-voltage cables2m (shielded coaxial safety cable, custom length available)
Working environment+5°C to +45°C, Humidity: 35~70%RH (non-condensing)
WarrantyOne-year limited warranty


TR8510-


There are currently no application cases available
