Dust Removal System

Bottom ionic cleaning hood

TR7278B

The cleaning hood is designed for cleaning from below and features a non-contact cleaning rotary nozzle and synchronized suction cleaning technology. Particularly suitable for products on conveyor belts, it can be easily installed under an open conveyor belt and cleaned on the underside using ionized air and rotating nozzles for simultaneous suction. The cleaning cover is equipped with two anti-static rods to neutralize the electrostatic charge before and after cleaning. A rotating nozzle is located between the anti-static bars to remove dirt from the surface to be cleaned, and the particles are stored by the integrated vacuum cleaner. In order to thoroughly clean both sides of the product, we offer a simple solution: the bottom cleaning hood can be combined with the top cleaning hood to achieve a complete and complete removal of all dirt particles.

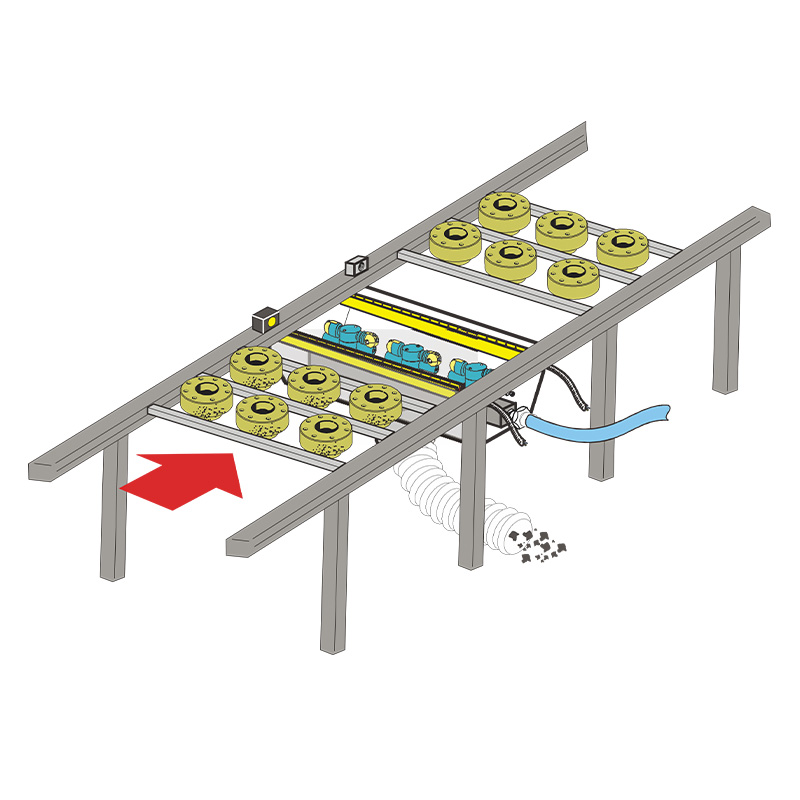

Illustration of the working principle of dust removal

1. Clean the hood
2. Conveyor belt
3. Workpiece with dirt
4. Electrostatic ion removal rod
5. Rotate the nozzle
6. Rotate the nozzle trachea
7. Suck up the garbage and collect dust
8. Clean work
