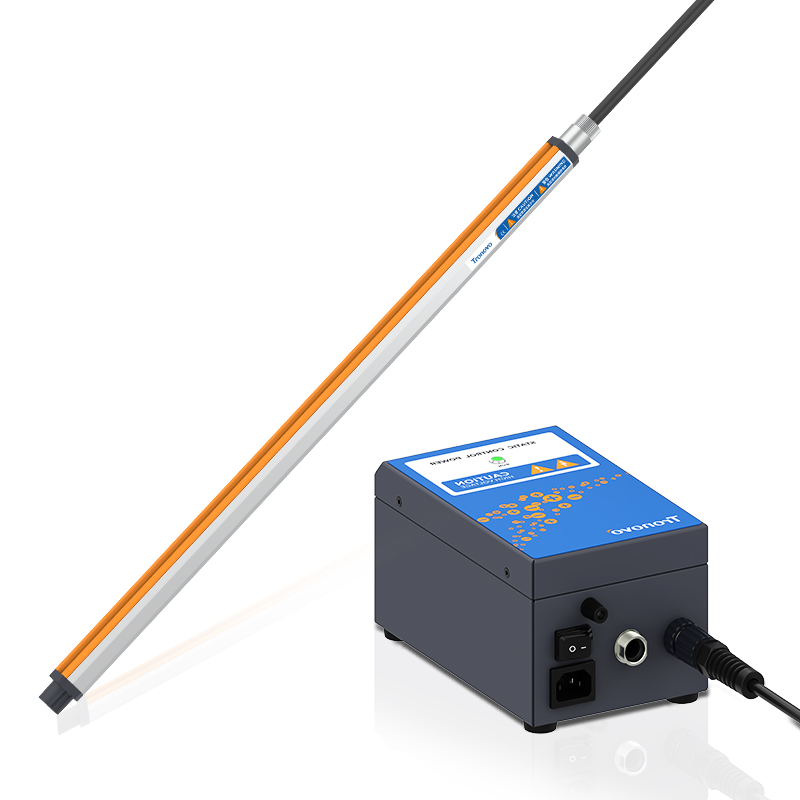

Ionizing Bar Type

Ultra-compact Ionizing Bar

DB72 Type

The circular structure of the ion rod provides the ability to adjust it at any angle when fixed, and this circular design gives it advantages in terms of space utilization, aesthetics and ease of use. The ion rod eliminates static electricity quickly and efficiently, and its special alloy electrodes ensure a long service life, bringing lasting value to customers. The design and performance of this ion bar make it ideal for many industries, including plastics, paper, films, and other areas of manufacturing where static electricity needs to be eliminated.

Features:
• Circular structure design, strong adaptability, can adjust the fixed angle arbitrarily
• Inductive coupling technology, no electric shock, to ensure the safety of the operator

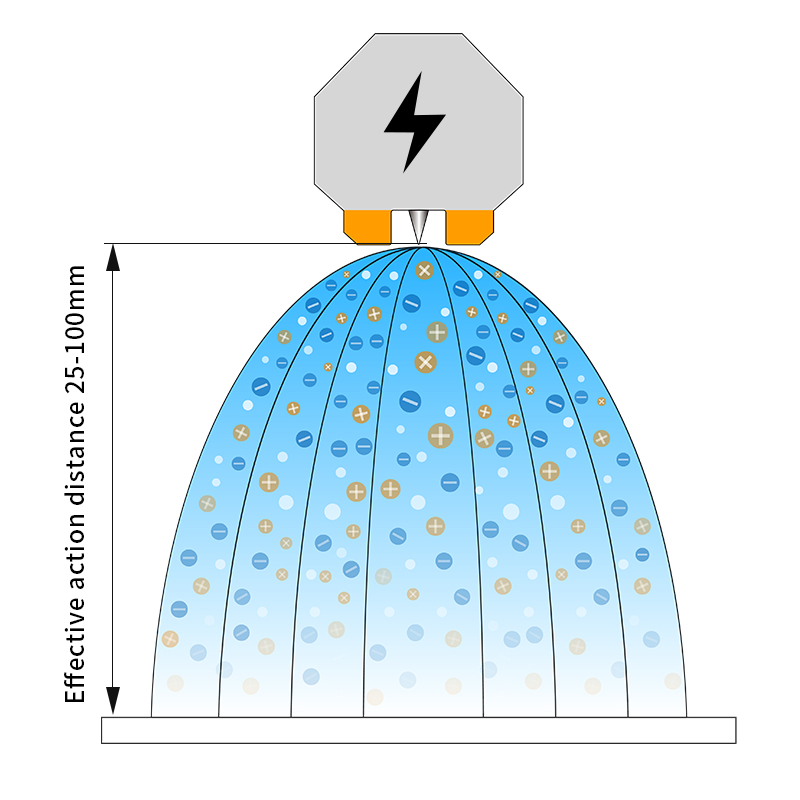

• Effectively remove static electricity, can act on a distance of less than 100mm
• Gas-tight high-voltage plug with flexible coaxial shielded cable
• Wind-free static elimination-low maintenance costs
• Use flame retardant PVC environmental protection material
• Easy to install, use removable mounting bolts to install

Round-no wind to remove static electricity

Eliminate static charge during product transportation
Easy to install in small spaces
Static removal efficiency> 85%

In addition to static electricity-the effect must be better!

Instantaneous static removal speed, high-speed industrial production, every second counts, 5kV to 0.5kV, only 5S.

Compact size-easy to install in small areas

High space utilization
efficient performance and flexible adjustment ability
can quickly and efficiently eliminate static electricity.

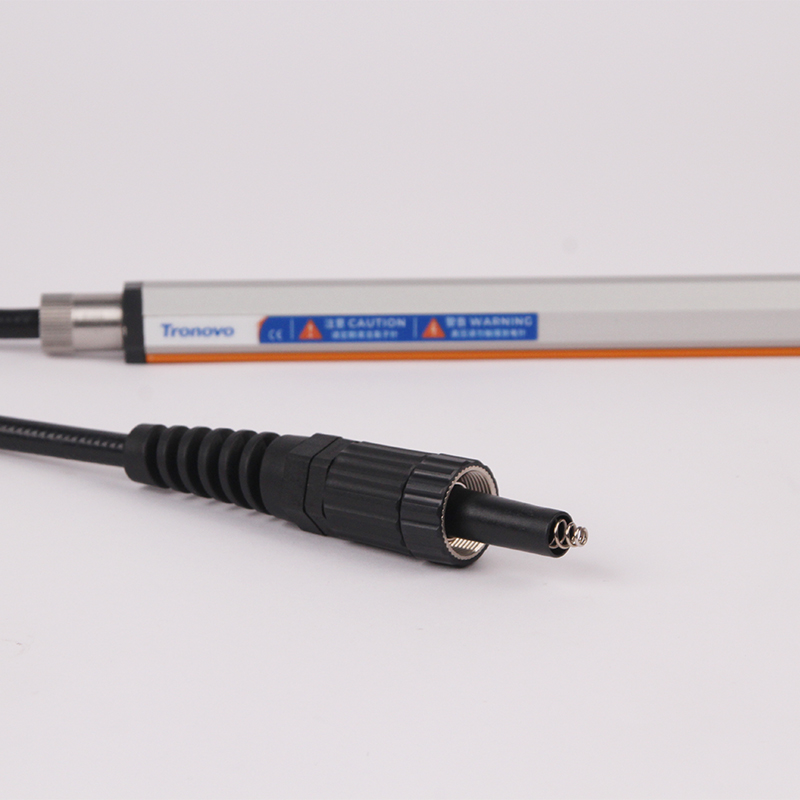

Secure Connection

The use of a new type of airtight high-voltage plug cleverly integrates the grounding function, which not only improves the electrical safety performance, but also simplifies the installation steps.

Easy to maintain-easy to clean!

Be sure to turn off the power when cleaning, do not place it in flammable and explosive areas, and use a soft brush to clean the ion needle once a week.

Printing electrostatic removal

Precision substrate and small parts, no need to worry about the sliding of the workpiece and the scattering of small parts.

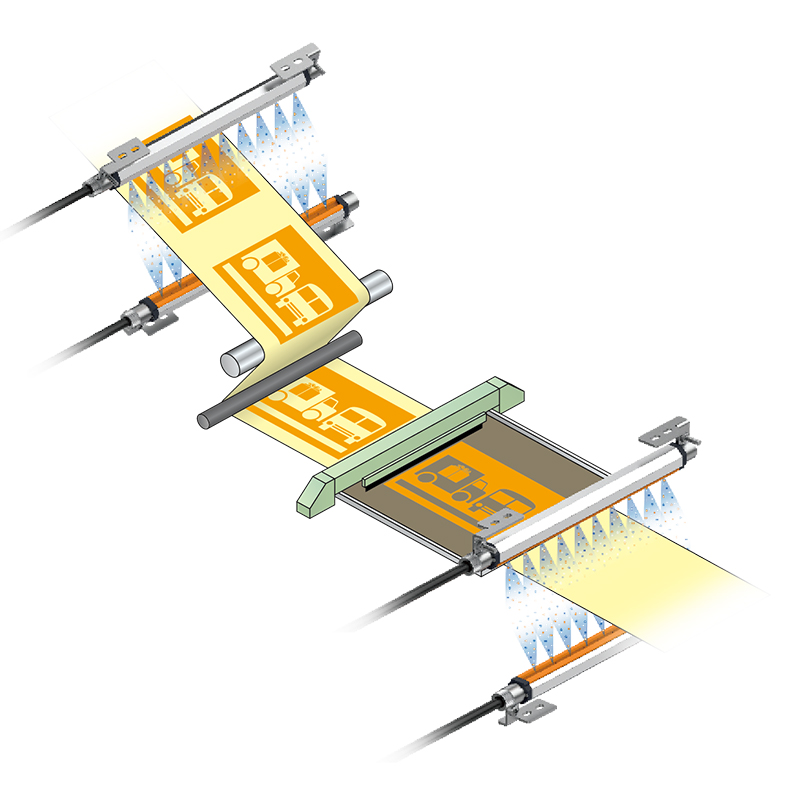

Film electrostatic removal

The coverage area is wide, and the foreign matter of high-speed ion airflow is reduced sharply.

Suitable ion power sources include:

DB712-7.0KV

ModelDB72
Discharge structureInductive coupling
The speed at which the power is dissipated0.5S(Distance50mm)
Range25→100mm
Installation distance50mm/Recommend
The length of the rod body150-2000mm (can be customized as required)
Rod materiaAluminium
Electrode materialSS
High-voltage cables2m (shielded coaxial safety cable, custom length available)
Working environment+5°C to +45°C, Humidity: 35~70%RH (non-condensing)
WarrantyOne-year limited warranty




There are currently no application cases available
