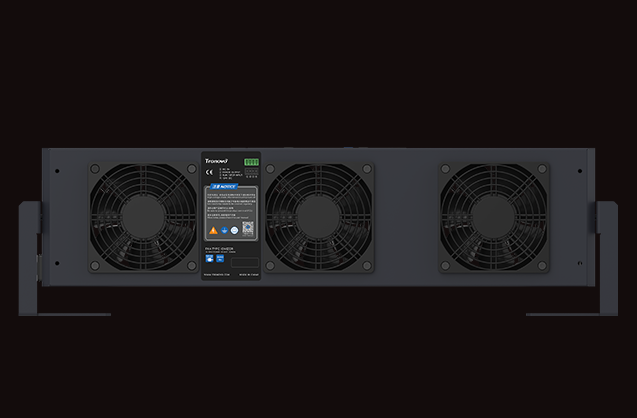

Suspended high-frequency ionizing fan

DF4000 Fan Type

For electronics manufacturing and assembly, high-frequency ionization technology and high-speed fans are used to eliminate static electricity at high speeds with low maintenance requirements. Reliable wiring design, built-in appointment function of the ion needle cleaning brush, reduce the frequency of maintenance. The ionizing fan has 5 kinds of self-alarm monitoring functions, and each air outlet is equipped with a status indicator to display the operating status and ion abnormalities in real time.

Features:
• High-frequency AC ionization technology, high efficiency, fast speed and good effect of static electrostatic removal
• Support network remote monitoring, 5 abnormal alarm functions, independent tuyere alarm indicator
• Easy maintenance, automatic cleaning of the ion needle, detachable ion needle ring
• Meets the requirements of the electronics industry specification, ANSI/ESD S20.20 EC61340-5-1
• Automatic control, standard I0 interface, operating signal/fault signal
• 5000rpm high-speed fan, 12 adjustable wind speeds, to meet different operating scenarios
• 2200V safe voltage, multiple protection circuits, no combustion, not afraid of short circuit
• Imported piezoelectric ceramic transformer, long-life tungsten ion needle, durable, long life, less failure

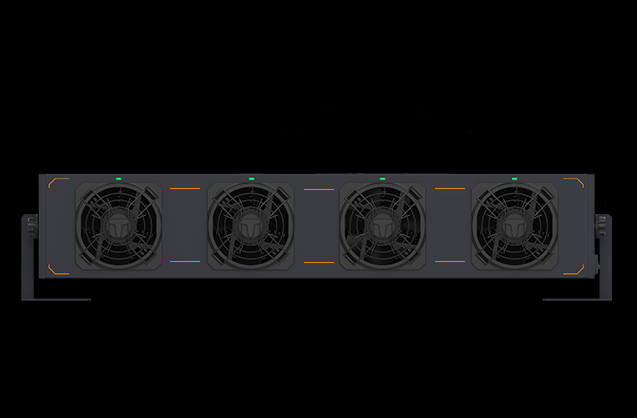

Visualization - Visualize the operating status

Equipment that is not easy to manage represents an intangible cost of expenditure, and Ai has added an independent operation indicator light with innovation to improve the efficiency of personnel inspection.

Intelligent - with network monitoring function

Manually through the mobile phone WeChat or computer software can manage the ionizer switch, adjust the air volume, and check the working status of the ionizer in real time.

Automation - Automatic cleaning of ion needles

With automatic cleaning function, maintenance-free and maintenance-free users can set the automatic cleaning time arbitrarily, and display it through the LED digital tube.

Permissioned - Employees change settings without authorization

You cannot adjust the parameters at will, change the settings, and realize the operation authority management of the device by customizing the KEY.

High-frequency technology

A system that uses piezoelectric elements to increase the AC voltage by ± 2kV and applies it to high-frequency electrode pins. The cycle of positive and negative ions is 70,000 Hz.

Typical dissipation time

The TF-4100 ionizing blower is 45cm away from the CPM monitor, and the CPM test board is 15cm away from the desktop. Each point represents the time from 1000V to 100V at maximum wind speed.

Large-scale long-distance static removal

High-frequency AC ionization technology, automatic instinctive ion balancing.

Ion Balance【 Performance Diagram 】

Each needle can release positive and negative ions, compared with the DC type is not easy to adsorb charged particles in the environment, the ion balance can be maintained for a long time (no adjustment is required), and at the same time, it has the characteristics of fast power dissipation, safety and reliability, close use, and maintenance saving.

Wide Coverage - Ultra-narrow duct spacing

The ultra-narrow air outlet design provides better ion coverage.

Large range - optional diffuser-shaped grille

The diffusivity of wind is excellent, and it is suitable for a wide range of static electricity removal.

IO interface - signal input and output control

For PLC automation control, the IO interface is the most important component.

Class	High wind speed suspended series
Model	DF463、DF464、DF465、DF466、DF467
Operating voltage	100~240VAC ±5%
The speed at which the power is dissipated	Approx. 1.5 sec. (Note 1)
Ionic balance	± 10V or less (Note 1)
Ionization techniques	High-frequency AC method, approx. ±2KV, 70KHz
Airflow output	17~180CFM×1Fans(12 levels of adjustment)
Airflow area	40×150cm(Straight grille) 60×120cm(Diffusion Grille / Optional)
Fan noise	75dB(A)
Ion needle material	Wolfram
Ozone concentration	≤ 0.04ppm or less (Note 2)
Fan Alarm (FAN)	have
High-voltage alarms（H.V / ION）	have
The status of the air outlet is displayed	have
Testatus, Bent, Al Otlet, Isdis, Prayed	have
One-click cleaning	have
清扫反转排尘	have
Panel lock	have
IO interface	have
WIFI interface	have(Optional wireless network module)
Grounding method	C (capacitor) ground
Material	Shell bracket, metal paint, grille ABS
Operating environment	0~+45°C (note no condensation), 35~75%RH
Warranty	One-year limited warranty
Annex	National standard power cord (1 pc), auxiliary grounding wire (1 pc) Blowing ribbon sticker (1 copy), factory inspection report (1 piece) Certificate of Conformity and Warranty Card (1 copy), Rotating Bracket (1 copy)

(Note 1): Maximum air volume 300 mm from the front of the air outlet, representative value measured when the vertical grille is not equipped with a dust filter.
(Note 2): Maximum air volume 150 mm from the front of the air outlet, representative value measured in an open space.
* In order to facilitate product improvement, the appearance and specifications of the product may be changed without prior notice.
