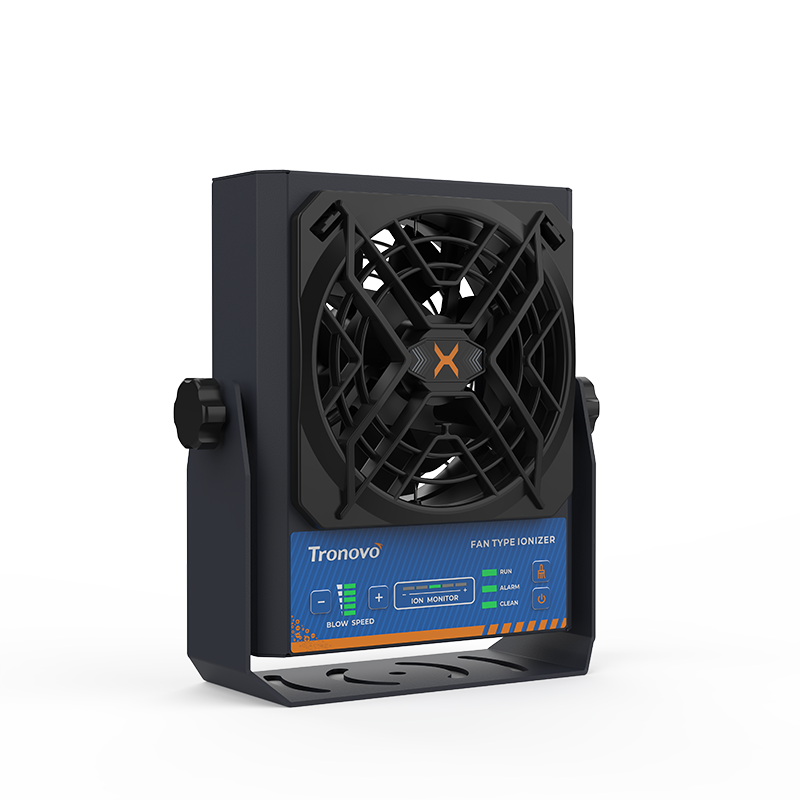

DF841/DF841R/DF841P

Closed-loop Control Type lonizing Blower

High performance and low price without compromise. Built-in ion balance detector, automatically maintain balance through variable DC mode, and realize 7x 24 real-time monitoring. Eliminate manual spot check, the equipment corrects its own deviation, eliminates the risk of electrostatic breakdown, and escorts the yield of your products.

Product Features:
• Intelligent closed-loop feedback
• PLC communication function
• No need for regular maintenance
• RS485 communication function
• Ion balance monitor

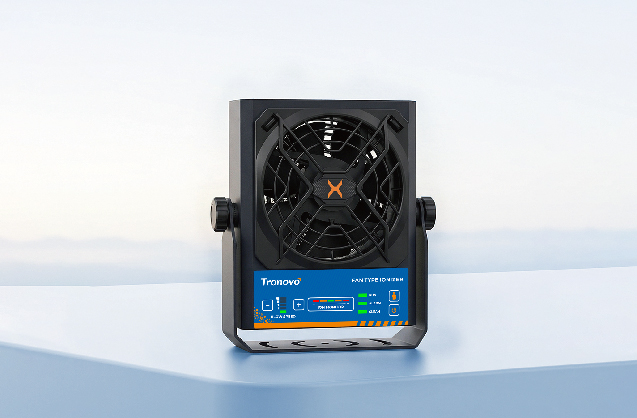

Low end DC ion fan_drawing board 1

Intelligent closed-loop correction of ion balance
Flexible integrated automation system

Real-time monitoring: intelligent correction of ion balance
Maintenance-free operation: eliminating the trouble of manual adjustment
Flexible integration: OptionalPLC/RS485 communication
Built-in ion balance detector, can always monitor the ion state. The variable DC mode can always control the ion balance in the ideal state, thus constructing a static electricity removal environment that ensures the long-term stability of the ion balance.

No regular maintenance required

Ion needle automatic cleaning function
Long-term no need to replace the ion needle
Automatically maintain the ion balance through the variable DC mode. This means that you no longer need to arrange manual tedious inspection, equipment can correct the deviation caused by aging or environmental changes

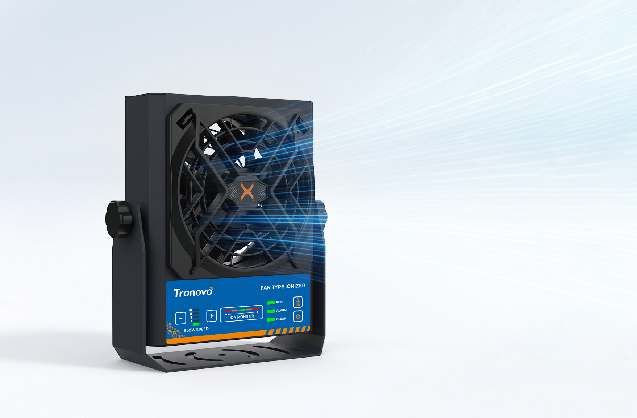

Low end DC ion fan-02
Low end DC ion fan-03

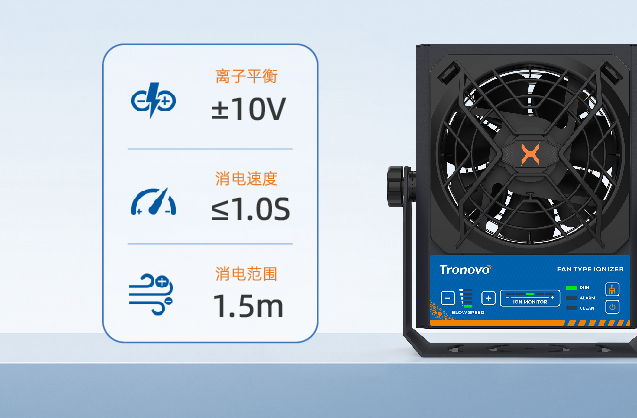

Ultra-high static elimination performance

Long-term ultra-high level of
static elimination performance

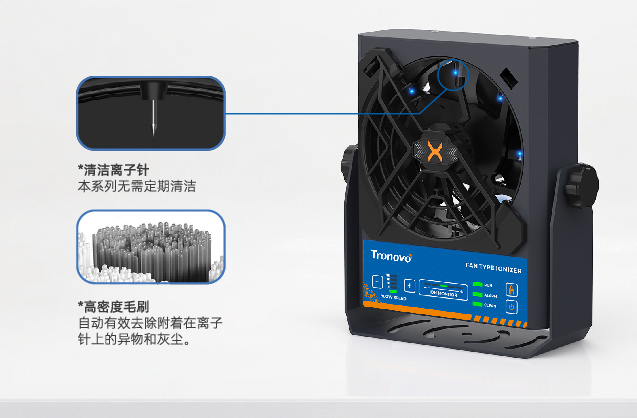

No need to regularly clean the ion needle

Conventional static eliminators must be regularly maintained. The TF3150 series DC ion wind machine automatically cleans the electrode needle, and at the same time carries out self-diagnosis on the electrostatic elimination performance. Once a problem is found, it can be known in time. In addition, the dirt of the cleaning brush will automatically clean and maintain a clean state.

Low end DC ion fan-04
Low end DC ion fan-05

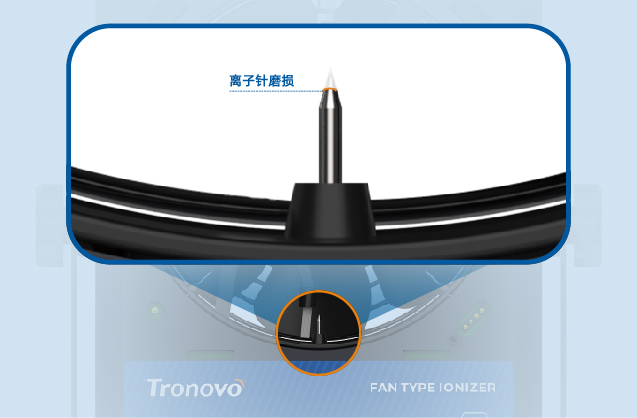

No need to replace the ion needle regularly.

There is no need to replace the ion needle in this series 3year
because the ion needle will wear out with the increase of use time, it usually needs to be replaced about 1year. The TF3150 series DC ion blower contains an ion balance detector, which can always monitor the ion status. The variable‑DC method keeps ion balance consistently at an optimal level, thereby establishing a static‑elimination environment that ensures long‑term stability and reliability. Therefore, the static elimination capability can be maintained without replacing the electrode needles.

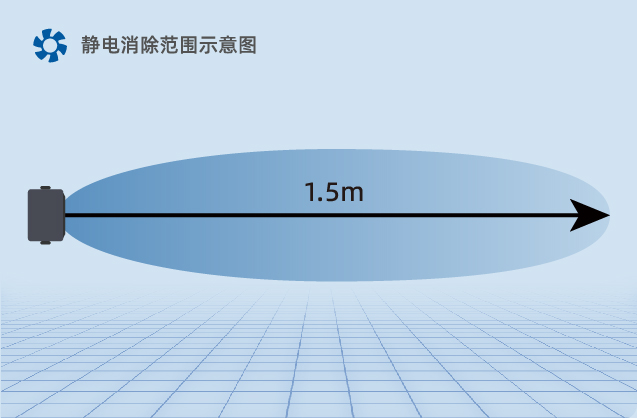

Electrostatic discharge area

The maximum distance is 1.5m to eliminate static electricity. According to the standard of American ESD Association: ANS1/ESDS20.20-2014, each point represents the static electricity dissipation time from 1000V to 100V when the wind speed is high.

Low end DC ion fan-06
Low end DC ion fan-07

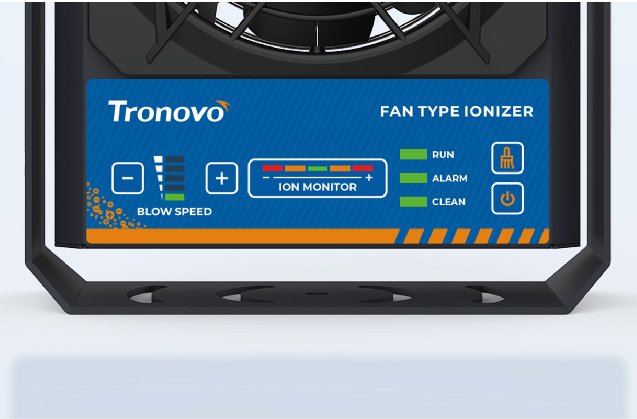

Buttons/Lights

5 gear wind speed adjustment: key "-" wind speed is reduced, indicator light is reduced, key "" wind speed is increased, indicator light is increased, indicator light is adjusted with wind speed
ion balance status indicator light: green light: within ± 10V, yellow light: within ± 35V, red light (No. 3): within ± 50V
status indicator light and function key: "RUN" green light-equipment on, not on-the equipment is off, the "ALARM" red light-the front dust cover is not fastened, the green light-no abnormality, the "CLEAN" red light-the ion needle needs to be cleaned, the green light-no abnormality

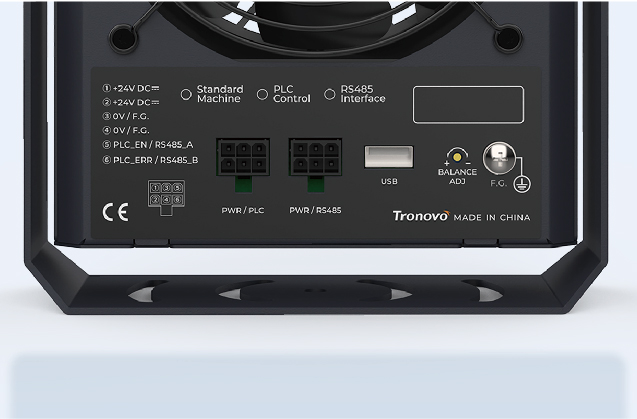

Interface Description

Power input/control signal/set connection terminal: the input power of the power adapter is AC 100~240V,50/60Hz.
USB interface: wireless networking can be connected to the factory MESsystem, need to purchase a separate WIFImodular.
Ion balance adjustment: Rotate left and right to manually adjust the ion balance.

Low end DC ion fan-08
