Dust Removal System

TN2301

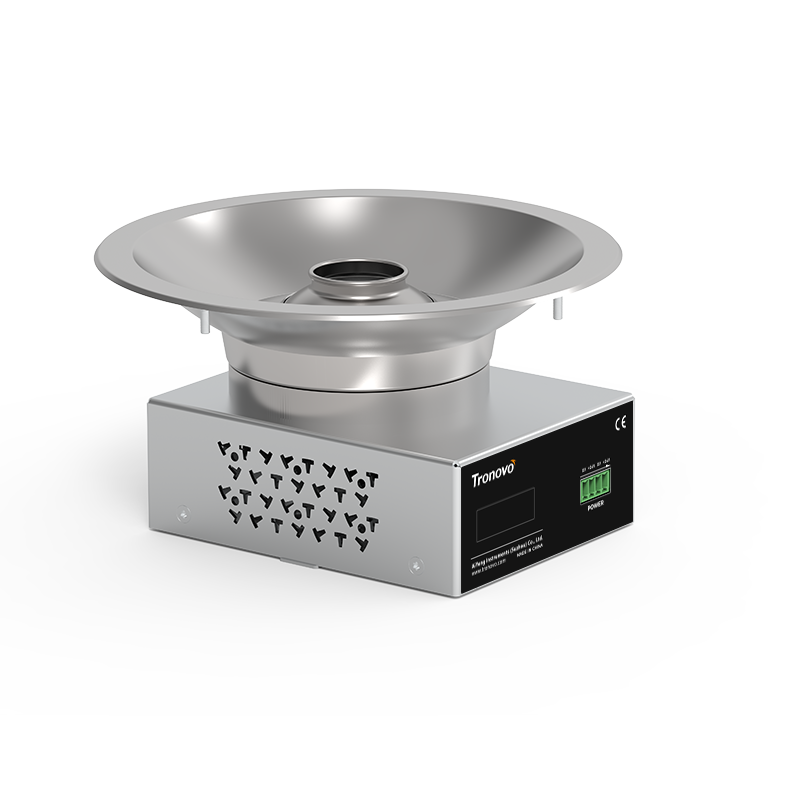

lonizing Nozzle

The Tronovo Air Shower Chamber Ion Nozzle is a revolutionary upgrade to traditional air shower systems, specializing in the dual pollution of dust particles + static electricity at the entrance of the clean room. It upgrades the "dust removal only" of ordinary air showers to "dust removal and static electricity", actively eliminates the hidden dangers of static electricity, and blocks the risk of fine dust being brought into the clean area due to static electricity adsorption from the root. Adapt to the renovation and new installation needs of various air shower rooms, achieve a thorough dust removal effect with simple transformation, build the first line of protection for the clean area, and greatly improve the purification efficiency and operational reliability.

产品特点

• Double protection: synchronously realizes dust removal + static electricity removal, solving the pain points of traditional air shower only dust removal and static electricity residue.
• Root source pollution control: actively eliminate static electricity, cut off the adsorption and propagation path of fine dust, and reduce the risk of pollution from the source.
• Strong adaptability: compatible with all kinds of air shower room renovation and new installation scenarios, with low threshold for transformation and flexible landing.
• Efficient and stable: Simple modification can achieve a thorough dust removal effect, and maintain a stable environment in the clean area for a long time.
• Easy upgrade: There is no need to replace the entire set of air shower equipment on a large scale, and the performance can be upgraded by direct nozzle replacement, which is cost-effective.

drawing board 2.png

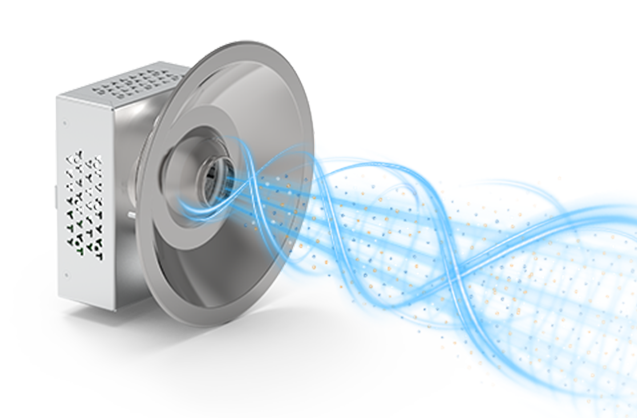

Dust removal + static removal - dual-effect purification

Not only does it blow away the attached dust through high-speed airflow, but also actively neutralizes the static electricity on the surface of the human body and materials through the jet of ion air, eliminating the fine dust pollution adsorbed by static electricity from the root.

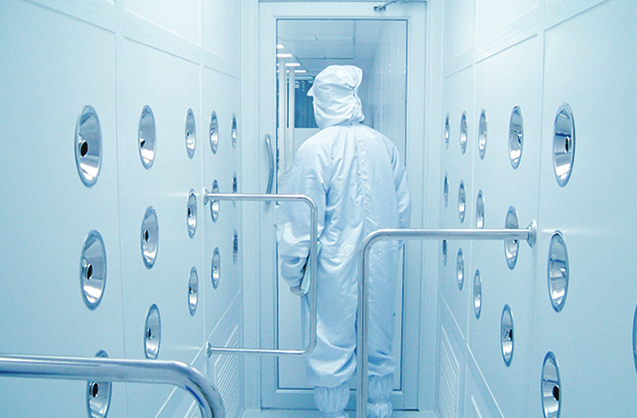

Active static removal - more thorough effect

Compared with passive dust removal that only relies on blowing, the ion nozzle can actively eliminate static charges and solve the problem of ordinary air showering objects. The core pain point of vacuuming quickly again due to static electricity.

drawing board 5.png
drawing board 3

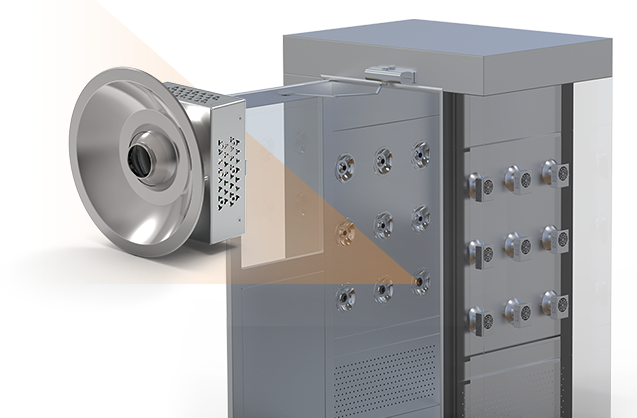

Strong compatibility with technology upgrades

Directly replacing the ordinary sprinkler of the existing air shower room, the transformation is simple, the cost is much lower than the replacement of the whole set of equipment, is a very cost-effective performance improvement solution.

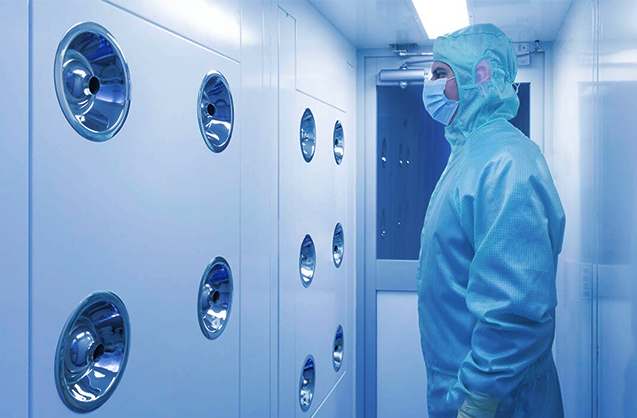

Reduce particulate contamination – improve cleanliness levels

To further improve the purification effect, we upgrade the ordinary nozzle in the traditional air shower room to a static ion removal sprinkler. This improvement not only enhances dust removal capabilities, but also actively neutralizes static electricity on the surface of objects and prevents static electricity from adsorbing particles, thereby achieving higher cleanliness requirements.

drawing board 4
Product ModelTN2301
Input Voltage24VDC±5%
Product Power3W
Ionization TechnologyHigh-frequency AC mode、2KV、70KHz
Dissipation TimeAbout 1.5 seconds @ 30cm
Ionic Balance≤|±25V|(AVG)
Electrode MaterialTungsten (W) - Tungsten
Shell MaterialSUS 304
Nozzle Diameter∅27.7mm
Connection Methodthreaded
Interface

4-pin Phoenix terminal

Oxygen Release Amount<0.005ppm
Working Environment0~+45°C; Humidity: 35%~75%RH (non-condensing)
Size164x88mm
Weight555g
WarrantyOne-year limited warranty



drawing board 8

There are currently no application cases available

There are currently no films available
