The compact design of the Ultra Small Industrial Dust Removal Nozzles allows for precise installation in tight spaces, direct targeting of workpiece surfaces to efficiently remove dust and contaminants, and powerful static elimination through high-frequency AC technology. A wide variety of nozzles are available to meet the dust removal needs of different industrial scenarios. Its innovative high-frequency AC ion generator ensures an extremely stable ion balance that is not affected by air pressure fluctuations and installation distance, completely eliminating the need for cumbersome adjustments after installation and dramatically improving production efficiency. This high-precision static elimination nozzle provides a reliable solution for cleaning and anti-static protection in the fields of electronics manufacturing and precision instruments, combining ease of use with excellent performance.
Features:
• High-frequency alternating current ionisation technology - achieves an ultra-stable ion balance, ensuring long-lasting and reliable static elimination.
• Ultra-compact static eliminator - Compact body design, easy to integrate into the narrow space inside the equipment.
• Multiple types of electrostatic discharge nozzles for industrial automation scenarios.
• IO control module-support signal input and output, seamless on-line automated production system.
• 24V DC safety power supply - CE safety certification.
• Ion monitoring indicator light - real-time display of operating status and abnormal alarms
• Removable Ion Needle Assembly - 1-minute quick cleaning and maintenance of ion needle
• 270mm effective de-static range - Compatible with conductive conduit to extend the range of side-blowing dust removal.
 |
The LED indicator visually shows the working statusLED status indicator intuitively monitors the working status of the electrostatic eliminator, and provides real-time feedback on the operation of the device through the ion balance detection and abnormal alarm function. Built-in intelligent check function automatically prompts the ion needle cleaning and maintenance cycle to ensure efficient electrostatic elimination. All operating status is visually confirmed by LED lights and supports remote status monitoring output interface, which is easy to be integrated into automated production line control system to realise the linkage of external equipment and greatly enhance the safety and maintenance efficiency in industrial environment. |
High-frequency AC ionization technologyHigh-frequency AC ionisation technology achieves high-precision electrostatic elimination, using 2200V safe low voltage combined with 70kHz high-frequency ion generation to ensure extremely stable ion balance without manual adjustment. Innovative pipeline ion transport design can directly transport ions to the target area, greatly increasing the speed of elimination, and supporting close installation at key production line stations. Equipped with anti-electrocution safety structure and no high-voltage cable design, it complies with industrial equipment safety standards and is suitable for electronic manufacturing, precision instruments and other static-sensitive scenarios. |
 |
 |
Positive dissipation time measurement chart:Positive dissipation time measurement chart is a key indicator to evaluate the performance of the static eliminator, which can accurately measure the time taken for the charge of a charged object with high voltage of +1000V to decay to +100V, which intuitively reflects the ability of the equipment to quickly remove static electricity, and is the core parameter to measure the efficiency of the elimination of static electricity. |
Negative dissipation time measurement plot:Negative dissipation time measurement graph is an important indicator to assess the performance of the static eliminator, referring to the time required for the charge of a charged object with - 1000V to decay to - 100V. The data visually reflects the efficiency of the equipment to eliminate negative charges, providing a key basis for the purchase of anti-static equipment for the electronics manufacturing, precision instruments, packaging and printing industries, helping companies control the risk of static electricity in the production process, and enhancing the reliability of anti-static solutions. |
 |
 |
Stable ionic equilibriumStable ion balance technology through the continuous release of positive and negative ions, in dynamic balance and efficient neutralisation of static electricity on the surface of the object, so that the static voltage quickly converges to 0 V. Its stability is directly related to the production of electronic components, precision instruments and other production links of the effect of static electricity protection, is the manufacturing industry to buy anti-static equipment, optimise the key basis for static electricity management and control programmes, can effectively reduce the risk of electrostatic breakdown, to protect product quality and production safety. |
| MODEL NUMBER | Body style | Nozzle Accessories | Material | ILLUSTRATE |
| Diffusion nozzles |
MODEL:DN251-SN01 |  MODEL:TN-SN01 | SUS 304 | Straight lines diffuse the air |
| Shower-type nozzles |
MODEL:DN251-SN02 |  MODEL:TN-SN02 | SUS 304 | 45 degree spray angle for wider air diffusion |
| Connected hose nozzles |
MODEL:DN251-SN03 |  MODEL:TN-SN03 | Metal | Ion nozzle body and conduit connection nozzle can be connected to any bend of the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, need to purchase additional TN-SN10 adapter to use. |
| Adjustable point nozzle |
MODEL:DN251-SN04 |  MODEL:TN-SN04 | SUS 304 | Can be in the range of 60 degrees, arbitrary adjustment of the spray angle to use first adjust the nozzle after the fixed nut, need to purchase additional TN-SN10 adapter to use! |
| Round-nosed nozzles |
MODEL:DN251-SN05 |  MODEL:TN-SN05 | Plastics | Powerful straight-line air can be injected from a small hole at the front end, with the addition of the TN-SN10 adapter. |
| Flat-head nozzles |
MODEL:DN251-SN06 |  MODEL:TN-SN06 | Plastics | Wide range of uniform electrostatic dust removal, requires additional TN-SN10 adapter for use |
| 90-degree nozzle |
MODEL:DN251-SN07 |  MODEL:TN-SN07 | Plastics | The angle of the air jet is perpendicular to the threaded surface, making it ideal for space-constrained locations，Requires additional TN-SN10 adapter to use |
| Stick type side blow nozzle |
MODEL:DN251-SN08 |  MODEL:TN-SN08 | SUS 304 | De-static effective length 270mm can improve the de-static area suitable for space-restricted places, need to add the purchase of TN-SN10 adapter use |
| Rod type side blow nozzle + bendable hose |
MODEL:DN251-SN09 |  MODEL:TN-SN09 | SUS 304 | De-static effective length of 270mm, the rod-type side blowing nozzle edge to the conductive conduit conduit diameter ø 6mm, the minimum bending radius: R25mm, the length of the conduit has a greater impact on the time to remove static electricity, please follow the site to do the choice of the appropriate, need to add the purchase of the TN-SN10 adapter to use! |
| Nozzle adapters |
|  MODEL:TN-SN10 | SUS 304 | RP1/4 (female) to M16×1.5 (male) is suitable between the nozzle and the thread of the static eliminator. |
| Bamboo gimbal nozzle |
MODEL:DN251-SN19 |  MODEL:TN-SN19 | Shuo material | It can be installed on DN251 or DN252, the default length of the product is 40cm, and there are 13 nozzles in total. Customers can shorten or extend as needed. |
| Universal nozzle |
MODEL:DN251-SN20 |  MODEL:TN-SN20 | Metal | The nozzle can be bent arbitrarily and does not need to be fixed Keep the curved shape unchanged, using a flower wine nozzle Can increase the elimination area |
| Rotate the fixing bracket |
|  MODEL:TN-RB01 | SUS 304 | The ionic nozzle body is fixed and installed |
| Model | DN251-SN09 | DN252-SN09 | ||
| Operating voltage | ≤1.0S(Distance 50mm) | |||
| Current consumption | ≤|±50V|(AVE)Distance 50mm | |||
| Dissipation time | 0.1~0.7Mpa | |||
| Ionic balance | ≤|±10V(AVE) | |||
| Supply air pressure | 0.15~0.7MPa | |||
| Supply air temperature | 0至+50°C | |||
| Connecting tubes | The outer diameter ∅ 6, the inner diameter ∅ 4 | |||
| Ozone concentration | <0.03ppm @30cm | |||
| I0 interface | - | have | ||
| Operating environment | 0~+55°C (note no condensation), 35~65%RH | |||

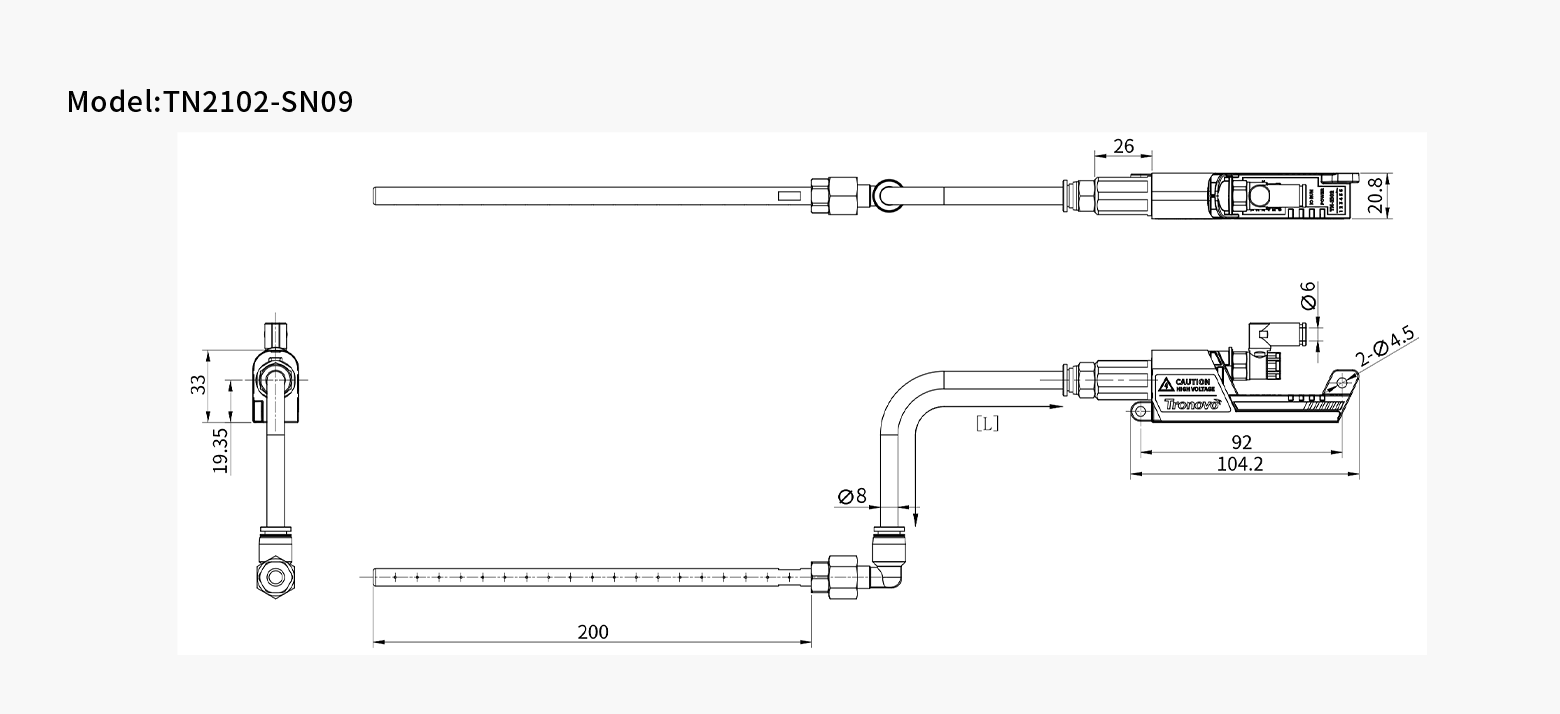

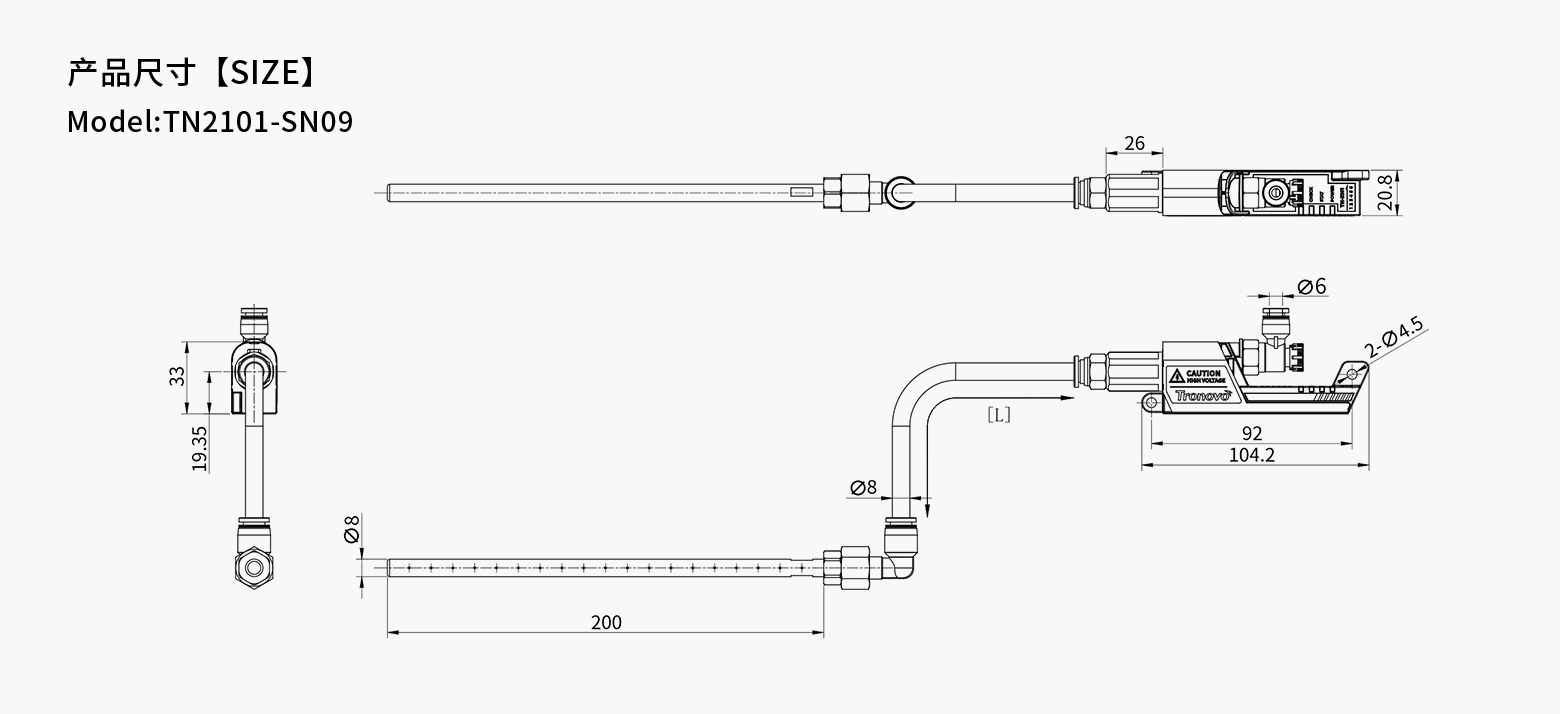

| Volume/weight | 33X110X20.8mm/ body approx. 120g | |||
