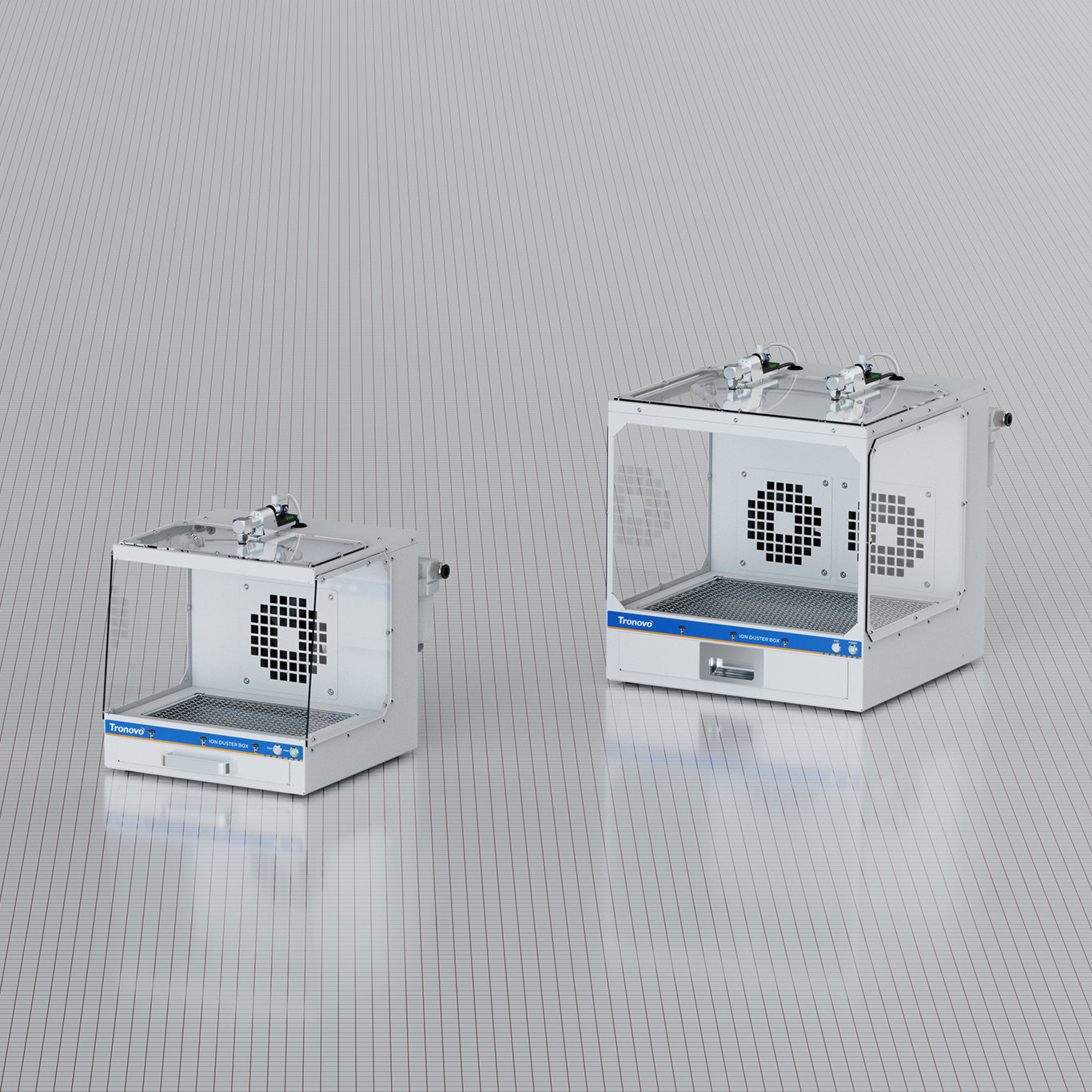

It is specially designed for precision workpieces such as electronic parts, smart phones, lampshades, etc. It adopts independent ion blowing + high-efficiency dust removal dual system, with a dust removal efficiency of 99.9. Static elimination and dust collection are completed simultaneously to prevent secondary pollution. Adapted to the clean standards of electronics, medicine and other industries, one-click start can solve the problem of electrostatic accumulation and dust.
Product Features:
• Built-in air curtain isolation system, effectively blocking the dust secondary pollution
• High-precision photoelectric sensor, light curtain induction zero blind area
• Multi-mode intelligent switching
• Standard industrial IO interface, seamless docking PLC automation production line
• Quickly disassemble the dust box to complete cleaning and maintenance
 |
Dust Detection LampDust detection lamp through the high brightness LED light source, accurate irradiation of the surface of the product, so that the electrostatic adsorption of dust particles in the light scattering under the action of clear. Even pollutants that are invisible to the naked eye can be visualized in real time, helping electronic manufacturing, pharmaceutical clean workshops, etc. to quickly locate residual dust and improve yield. |
Air curtain-an efficient barrier to intercept dust in the vertical dimensionThe air curtain is a high-speed airflow barrier formed in the electrostatic dust removal box, like a dust guard, which vertically intercepts external dust, particles and other pollutants through strong airflow. It is suitable for scenes such as electronic workshops and medical clean rooms. It can not only prevent external dust from invading the work area, but also prevent dust from flying up again to pollute products and improve the cleanliness of the workshop. It is a key dust-proof component in the electrostatic dust removal system and helps to control dust efficiently. |
 |
 |
Light curtain inductionThe industrial dust removal box is equipped with a light curtain type induction system, and the horizontal light curtain is constructed by 3 sensors, which greatly reduces the blind area of induction. Support sensor redundancy operation, single group failure does not affect the overall work, reduce equipment maintenance costs and standby loss. Adapted to the electronic workshop, pharmaceutical clean room and other scenarios, improve the response efficiency of dust removal equipment, is the key configuration of intelligent dust box, industrial induction system, to help efficient production. |

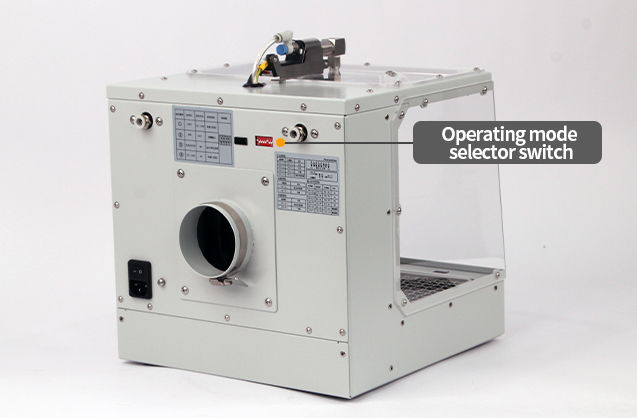

The device supports multi-component flexible mode:Dust detection lamp can be set normally open/normally closed/induction |
 |
 |

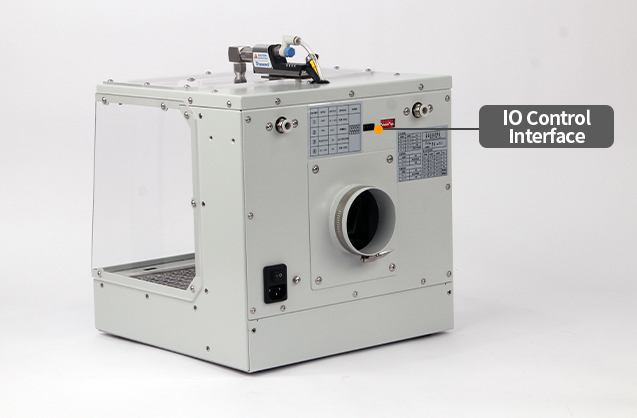

IO controlSupport start-stop intelligent control, automatic judgment of working conditions start-stop equipment; With fault self-diagnosis function, rapid positioning of problems to reduce troubleshooting time; Remote monitoring, abnormal real-time alarm output signal, shorten downtime. Adapted to the electronic workshop, pharmaceutical clean room, improve the intelligent industrial dust removal equipment, is the key configuration of intelligent dust removal system, workshop automation control, to ensure efficient production. |

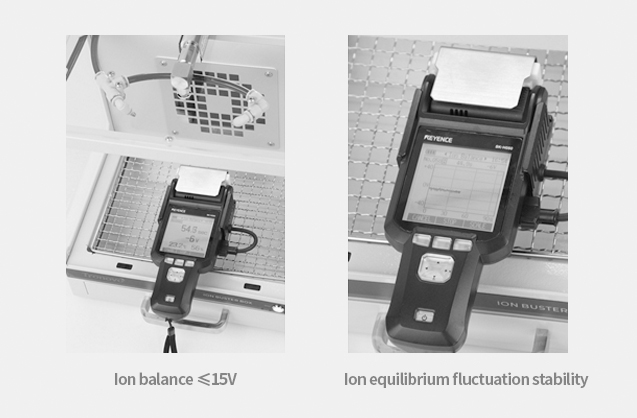

Ionic equilibrium ≤15VEquipment ion distribution is uniform, maintain stable ion field, ensure the equilibrium voltage ≤ 15V, close to 0V standard, is an excellent static eliminator. Ion balance reflects the stability of the object with voltage after static elimination, adapts to electronic workshop, precision instrument factory, improves the electrostatic protection effect, is the key parameter of industrial static elimination equipment, clean room anti-static device, to ensure that the product is not damaged by static electricity. |
 |
 |

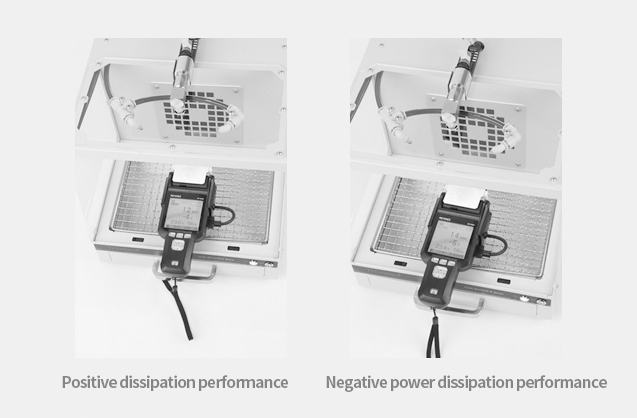

Deactivation speed ≤1.5sThe equipment controls the decay time of positive and negative charges within 1.5 seconds, leading the power consumption speed, reflecting the advanced technology. Power elimination speed is the core index to measure the speed of static elimination, suitable for electronic workshop, precision instrument factory, improve the efficiency of electrostatic dust removal, is the key parameter of industrial static elimination equipment, clean room dust removal device, to ensure rapid removal of static electricity. |
Pull-out dust collection boxDust removal equipment convenient maintenance accessories, the bottom of the sealed design can be filled with water to prevent dust drift. When the dust collection is full, it can be taken out for cleaning or replacement without complicated disassembly, saving maintenance time and energy, avoiding secondary pollution during replacement, and ensuring dust removal hygiene and safety. Suitable for electronic workshop, pharmaceutical clean room, is the preferred efficient dust collection accessories. |
 |
 |
H.V High voltage indicationThe safety monitoring of industrial dust removal equipment is guaranteed, and the advanced high-voltage indication function is integrated to provide users with intuitive safety monitoring. When the red light is on, it indicates that the high pressure is abnormal, and timely reminds to check the state of the ion needle to reduce the risk of equipment failure. |
Controllable Airflow Control ValveThe precise control device of the ion nozzle in the dust box is equipped with a throttle valve to realize the fine adjustment of the ion jet airflow. Users can easily control the air flow and pressure, ensure the efficient work of the nozzle, improve the accuracy and effect of dust removal, while reducing air consumption, in line with the needs of green production. |
 |
| Model | ED431 | |
| Sizes | 310X305X300mm | |
| Number of nozzles | 1PC | |
| De-electrification performance | ±10V/≤0.5S | |
| Ionisation technology | HF AC | |
| Spraying method | Puff out | |
| Dust Detection Lamp | Dust on the workpiece is also clearly visible. | |
| Assisted blowing | Separation of blowing ions and blowing air improves de-static efficiency and dust removal efficiency. | |
| Air curtain function | The airflow creates a protective door to keep out dust. | |
| Operating mode | Time setting: continuous, timer[2、5、10s、15s] | |
| Dust discharge | ∅76 Duct flanges for vacuum bags or hoovers | |
| Main material | Stainless steels | |
| I0 interface | PLC、Input and output signals | |
| Product power | Single AC 100~240V(50Hz/60Hz)50W | |
| Warranty | One-year warranty | |
